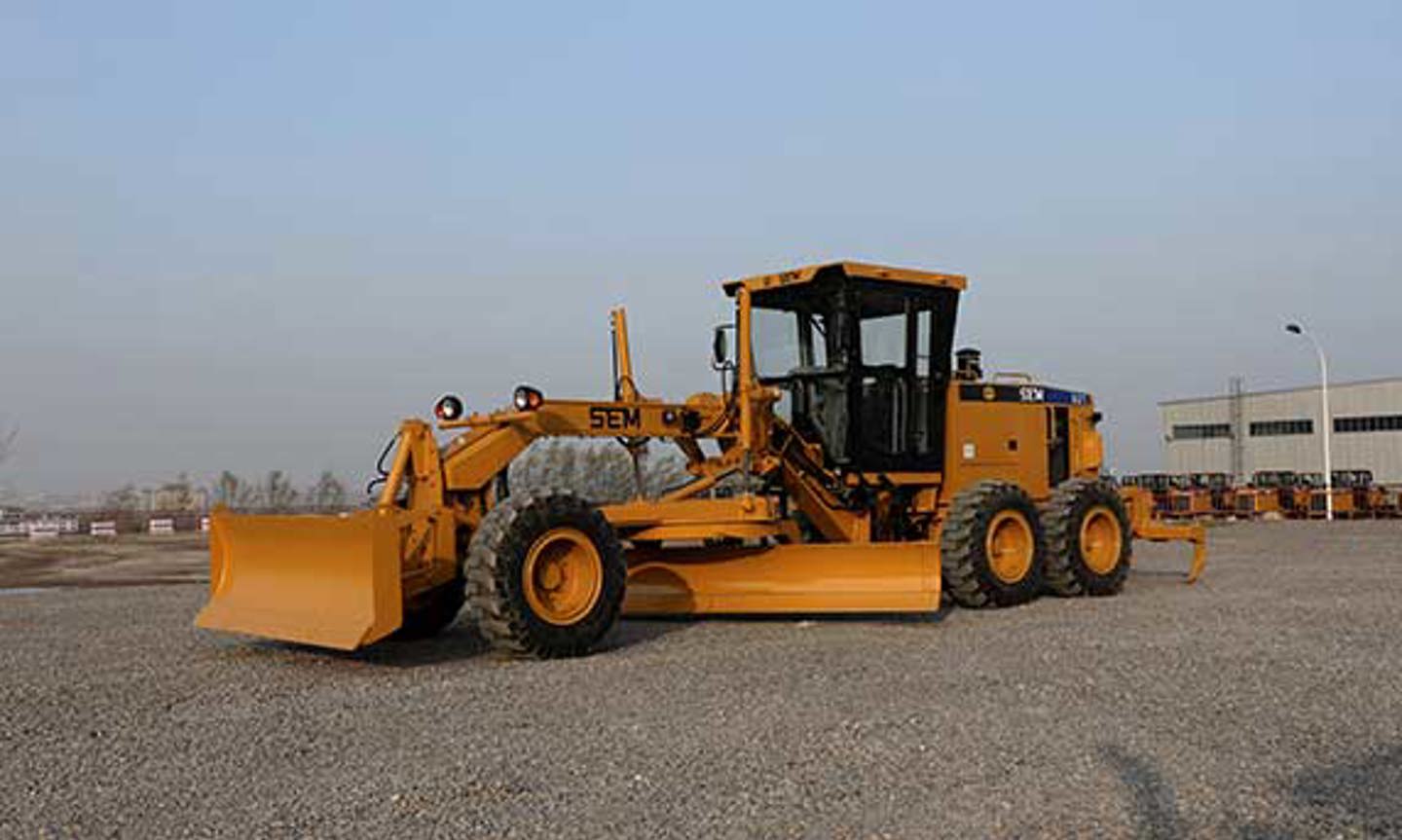

A highly reliable and cost-effective motor grader with load sensing hydraulics for consistent and precise blade movement. The A-frame designed drawbars ensure strength in all blade positions.
| Engine model | SDEC SC9D220G2 |
| Net Power | 162kW |
| Transmission Type | Hangchi 6WG180 |
| Top Forward Speed | 40 km/h |
| Top Forward Speed | 25 km/h |
| Length of Machine | 8,854 mm |
| Maximum Width | 2,630 mm |
| Maximum Height | 3,360 mm |
| Wheelbase | 6,140 mm |
| Total Weight | 15,930 kg |
| Tip Forward Range | 15º (± 16º) |
| Tip Reverse Range | 25º (± 16º) |
| Blade Length | 4,279 mm |
| Blade Width | 25 mm |
| Blade Height | 607 mm |
| Turning Radius | 7.8 m |
| Frame Articulation Angle | 20º |
| Maximum Lift Above Ground | 475 mm |
| Maximum Depth of Cut | 715 mm |
| Hydraulic System | Load Sensing, PPPC |
| Maximum Drawbar | ≥85kN |
