| Auxiliary Power | 12 Volts DC |
| Capacity - Fuel Tank | 117.35 L |
| Engine Type - Diesel | Deutz D2.9L4 Tier 4 Final 48.8hp (36.4kw) |
| Engine Type - Dual Fuel | Ford MSG425-DF 84hp (62kw) |
| Axle Oscillation | 0.2 m |
| Drive Speed - 4WD | 6.12 km/h |
| Gradeability - 4WD | 45% |
| Platform Capacity - Restricted | 340.19 kg |
| Platform Capacity - Unrestricted | 249.48 kg |
| Swing | 360 degrees |
| Turning Radius - Outside (2WS) | 5.36 m |
| Turning Radius - Outside (4WS) | 2.9 m |
| Ground Clearance | 0.29 m |
| Machine Height | 2.5 m |
| Machine Length | 10.79 m |
| Machine Width | 2.49 m |
| Platform Dimension A | 0.91 m |
| Platform Dimension B | 2.44 m |
| Tailswing | 1.22 m |
| Tire Size | 355/55D625 Foam Filled Lug Tire |

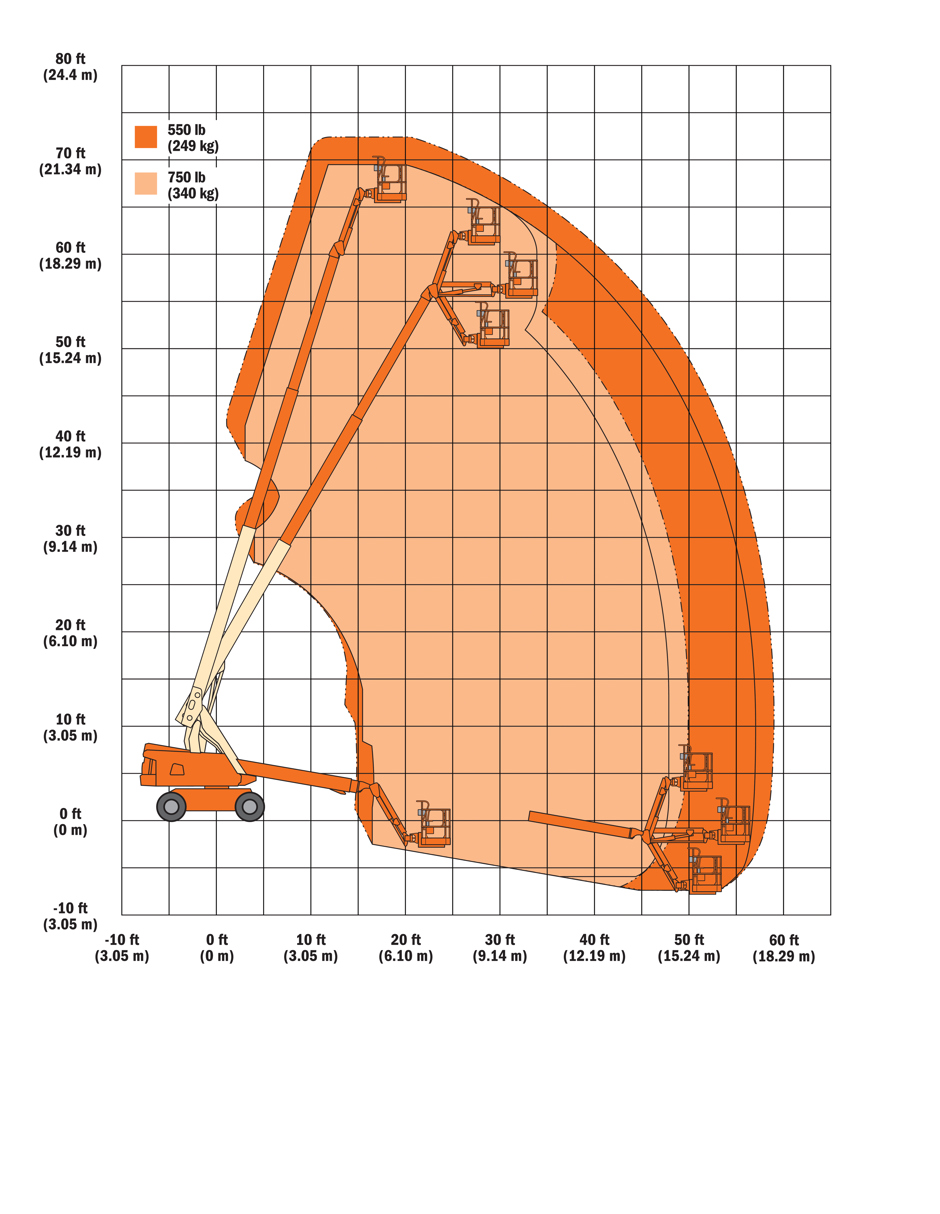

| Horizontal Outreach | 17.4 m |
| Platform Height | 20.02 m |
| Capacity - Hydraulic Reservoir | 128.70 L |
| Machine Weight | 11494.48 kg |
| Maximum Ground Bearing Pressure | 6.02 Kg/cm<sup>2</sup> |
Learn more information about the JLG 660SJ.
Download (2.22 MB, PDF)From pre-purchase consults to end-of-lifecycle benefits, Mantrac informs, advises and partners with you.
