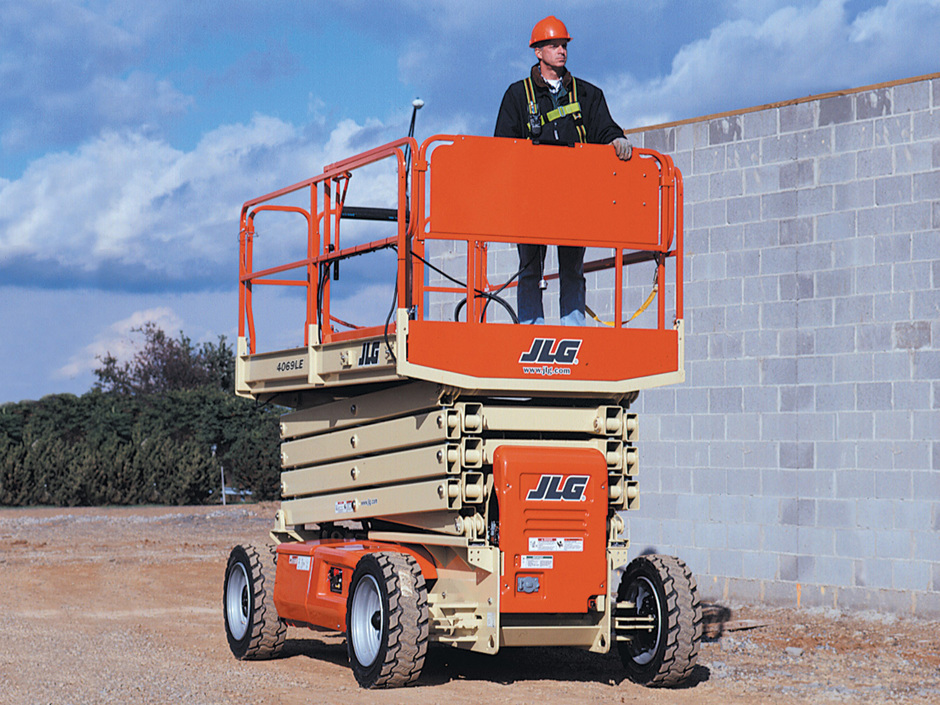

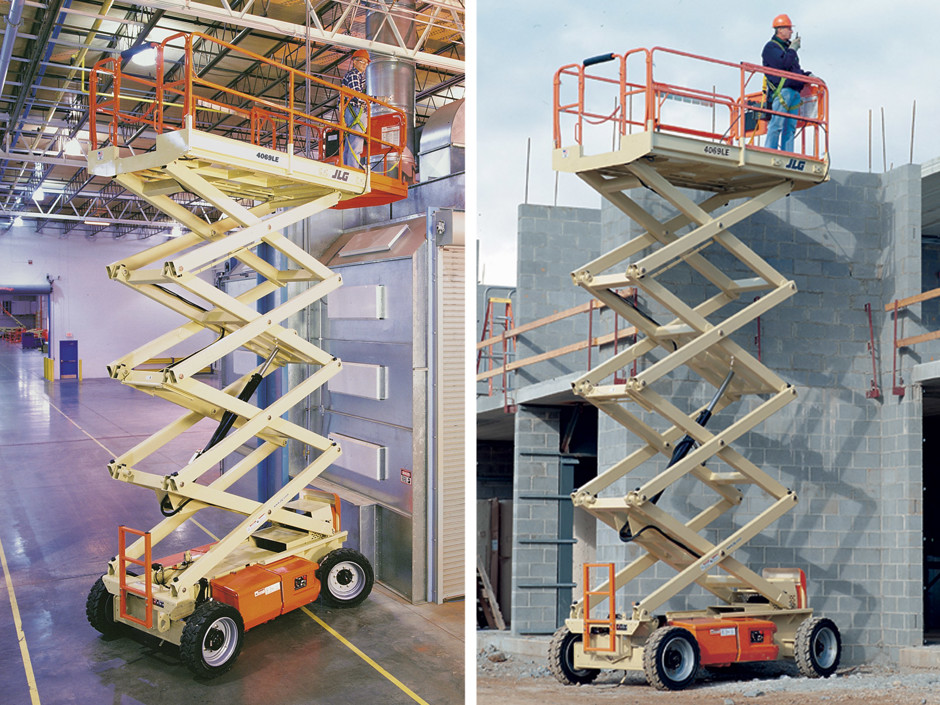

4069LE

Batteries	8 x 6V, 370 amp-hr
Charger	21 Amp Automatic SCR
Brakes	Spring Applied Hyd Released Discs
Capacity - Hydraulic Reservoir	8.5 gal.
Maximum Ground Bearing Pressure	61 psi
Hydraulic Pump	Single Section Gear Pump
Machine Weight	5216.31 kg
Drive Speed - Platform Elevated	0.64 km/h
Drive Speed - Platform Lowered	4.83 km/h
Gradeability - 2WD	35 %
Gradeability - 4WD	45 %
Lift Time	54 sec.
Lower Time	50 sec.
Maximum Drive Height	9.14 m
Maximum Lift Height	12.19 m
Outriggers or Stabilizers	No
Platform Capacity	362.87 kg
Platform Capacity - Extension	113.40 kg
Turning Radius - Outside	4.72 m
Ground Clearance	0.2 m
Machine Height	2.81 m
Machine Height - Rails Folded	2.01 m
Machine Length	3.15 m
Machine Width	1.75 m
Platform Dimension A	2.92 m
Platform Dimension B	1.65 m
Platform Extension Length	0.91 m
Platform Height - Lowered	1.75 m
Platform Railing Height	1.1 m
Tire Size	240/55 x 17.5 Non-Marking
Wheel Base	2.3 m
Platform Height	12.19 m
Working Height	14.02 m

Learn more information about the JLG 4069LE.
