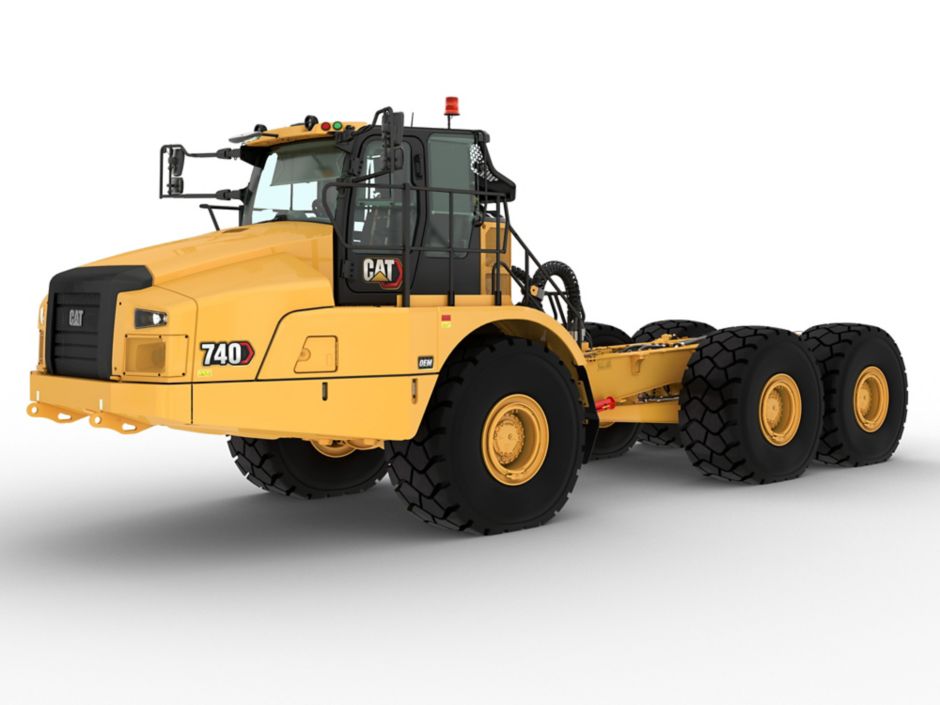

Cat 740 Bare Chassis

For more information on 740 bare chassis options, Please contact caterpillar oem solutions at [email protected].

Note

• Standard and optional equipment may vary. Consult your Cat dealer for details.

Operator environment

• Combined gear selection and hoist control lever
• Secondary steering – electro hydraulic
• Storage:
  – Cup holder
  – Flask receptacle (under the secondary seat)
  – Under seat storage
  – Door pocket
  – Behind seat storage
  – Coat hook
• Glass windows:
  – Front, laminated and tinted
  – Sides and rear, toughened and tinted
• Heater and defroster with four-speed fan
• Windshield wiper and washer, two speed (rear)
• Two seats both with seat belts, operator’s retractable
• Adjustable air vents
• Liquid Crystal Display (LCD):
  – Alert indicator
  – Selected gear and direction
  – Speed or auto shift
  – Operation and Maintenance Manual (OMM)
  – Primary steering failure (warning)
  – Seat belt warning
  – Secondary steering failure
  – Machine Security System (MSS)
  – Secondary steering energy source engaged
  – Hour meter
  – Retarder active
• Touchscreen display incorporating the rearview camera video feed
• Air conditioning with R134A refrigerant
• Windows (tinted) opening both sides
• Tilt and telescopic steering wheel
• Windshield wiper and washer, two speed, intermittent (front)
• Mirrors: extensive arrangement for improved visibility
• Sun visor
• Machine operation monitoring system includes:
  – Action lamp
  – Engine oil pressure
  – Primary steering system
  – Left and right turn signal
  – High beam
  – Coolant temperature
  – Tachometer
  – Parking brake
  – Fuel level
  – Transmission oil temperature
  – Brake system
  – Transmission hold
  – Hoist control
  – Hydraulic system
  – Charging system
  – Transmission fault
  – Traction control system
  – Check engine lamp
• Seats:
  – Operator: fully adjustable, air suspension
  – Trainer: padded with lap belt

Cat technologies

• Cat Detect with Stability Assist
• Product Link: PLE641E (cellular)

Electrical and lighting

• Lighting systems:
  – Cab interior
  – Two head lamps
  – Two width marker
  – Two reversing
  – Work light/cab access light
  – Two stop/tail lights
  – Front and rear direction indicators
• Main disconnect switch
• Electrical system: 24-volt, 10A 24- to 12-volt converter
• Remote starting receptacle (cables not included)
• Batteries (two) maintenance free
• Horn

Powertrain

• Three axle, six-wheel drive
• Differentials: standard with automatic clutched inter- and cross-axle differential locks
• Cat C15 engine
• Three axle, six-wheel drive
• Dual circuit oil immersed, enclosed brakes – all wheels
• Retarder: engine compression brake
• Auto shift nine-speed forward and two reverse transmission

Safety

• Reverse alarm
• ROPS/FOPS cab
• Rearview camera

Guards

• Rear window
• Crankcase
• Radiator
• Axle

Other standard equipment

• S·O·S sampling valves
• Tires, six 29.5 R25
• Vandalism protection: lockable caps
• Sound suppression (only standard in Europe)

Note

• Standard and optional equipment may vary. Consult your Cat dealer for details.

Optional equipment

• Roof mounted High Intensity Discharge (HID) work lights
• Cat Production Measurement payload monitoring system
• Product Link Elite: PLE631E (satellite)
• Fuel additive – anti-waxing
• Cold weather coolant –51° C (–60° F)
• Four-point seat belt
• Ether start
• Machine Security System (MSS)
• Windshield wiper and washer, two speed (rear)
• Sound suppression (only standard in Europe)
• Wheel chocks
• Engine block heater
• Heated rearview motorized mirrors
• Window blinds
• Cold weather start attachment
• Auto lube installation for automatic greasing of bearings
• Bluetooth radio stereo system
• Fast fuel fill
• Infrared glass – high ambient cab
• Flashing LED beacon
• Heated/cooled seat
