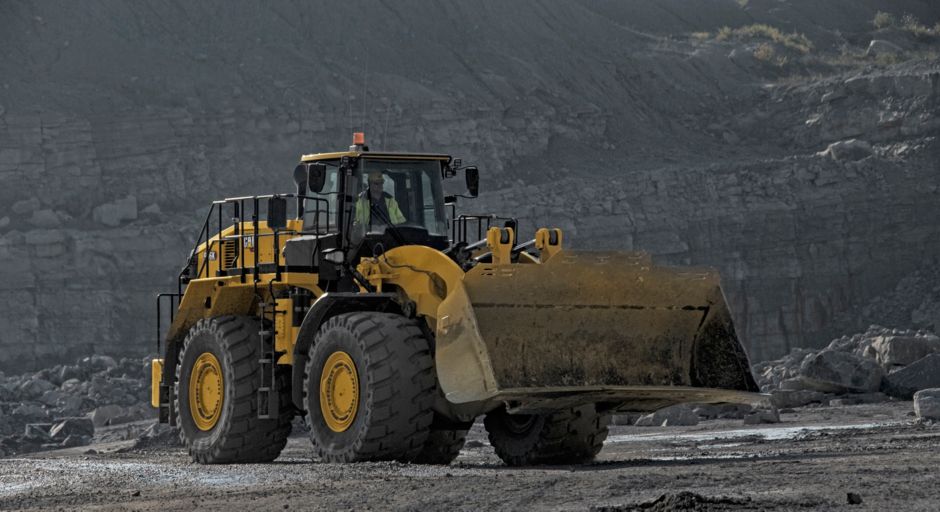

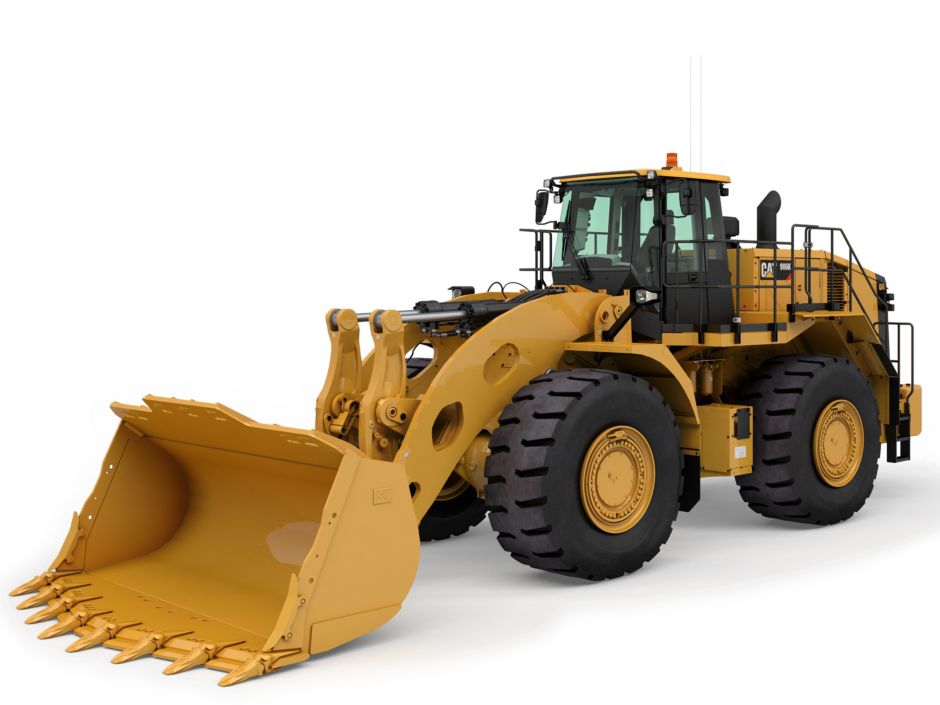

Cat® Large Wheel Loaders are designed with durability built in, ensuring maximum availability through multiple life cycles. With optimized performance and simplified serviceability, our machines allow you to move more material efficiently and safely at a lower cost per ton. The new 986K builds upon this legacy of durability, performance, safety, operator comfort, serviceability and sustainability.
Your bottom line is improved by highly durable structures that achieve multiple life cycles and withstand the toughest loading con…
Building your success begins with a best-in-class transmission designed specifically for mining applications.Consistent, smooth sh…
Increase efficiency through our Load Sense Hydraulic System. Load sense hydraulics maximize performance by directing hydraulic flu…
Your operators can work more efficiently and stay comfortable with our customer-inspired cab features.
Integrated electronics provide flexible levels of information to both the site and the operator. This integration creates a smart…
We are constantly improving our products in an effort to provide a safe work environment for the operator and those who work on yo…
Longer service intervals on fluids and filters. Safe and convenient service with ground level or platform access and grouped…
A valued partner, your Cat dealer is available whenever you need them.Preventive maintenance programs and guaranteed maintenance c…
Sustainability is designed and built into our 986K's features.Engine Idle Shutdown can help you save fuel by avoiding unnecessary…
Performance Series Buckets feature an optimized profile maximizing material retention and minimizing dig time, translating into si…

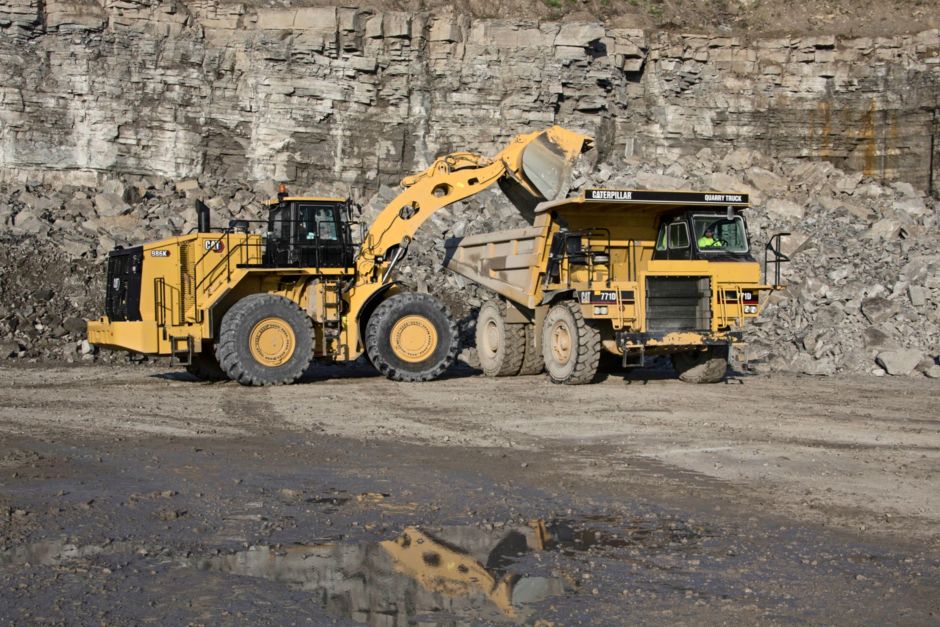

For full truck payloads with minimum loading time, an efficient loading/hauling system starts with a perfect match. Cat wheel load…
| Specification | Value |
| Net Power | 278 kW |
| Engine Model | C15 Cat® |
| Emissions | Tier 4 Final/Stage V, or China Nonroad Stage III and Brazil MAR-1 equivalent to Tier 3 and Stage IIIA |
| Gross Power - ISO 14396 | 335 kW |
| Peak Power Speed - 1,600 rpm - SAE J1995 | 340 kW |
| Peak Power Speed - 1,600 rpm - SAE J1995 (DIN) | 340 kW |
| Peak Power Speed - 1,600 rpm - ISO 14396 | 335 kW |
| Peak Power Speed - 1,600 rpm - ISO 14396 (DIN) | 335 kW |
| Rated Speed - 2,000 rpm - EEC 80/1269 | 278 kW |
| Rated Speed - 2,000 rpm - EEC 80/1269 (DIN) | 278 kW |
| Rated Speed - 2,000 rpm - ISO 9249 | 278 kW |
| Rated Speed - 2,000 rpm - ISO 9249 (DIN) | 278 kW |
| Rated Speed - 2,000 rpm - SAE J1349 | 278 kW |
| Rated Speed - 2,000 rpm - SAE J1349 (DIN) | 278 kW |
| Bore | 137 mm |
| Stroke | 171.5 mm |
| Displacement | 15.2 l |
| Peak Torque - 1,200 rpm - SAE J1995 | 2.411 N·m |
| Torque Rise | 16% |
| Specification | Value |
| Operating Weight | 44.818 kg |
| Operating Weight - Standard | 44.355 kg |
| Operating Weight - High Lift | 47.175 kg |
| Rated Payload - Quarry Face | 10 t |
| Rated Payload - Loose Material (Standard) | 12.7 t |
| Rated Payload - Loose Material (High Lift) | 11 t |
| Rated Payload - Standard (Quarry Face) | 10 t |
| Rated Payload - Standard Lift (Low to Moderate Digging Resistance) | 12.7 t |
| Rated Payload - High Lift (Quarry Face) | 10 t |
| Rated Payload - High Lift (Low to Moderate Digging Resistance) | 11 t |
| Bucket Capacity Range | 5-10,3 m³ (6,5-13,5 yd.³) |
| Cat Truck Match - Standard | 770/735/740/745 |
| Cat Truck Match - High Lift | 772/773 |
| Specification | Value |
| Bucket Capacities | 5-10,3 m³ (6,5-13,5 yd.³) |
| Specification | Value |
| Transmission Type | Cat-Planeten-Lastschaltgetriebe |
| Forward - 1 | 7.3 km/h |
| Forward - 2 | 12.2 km/h |
| Direct Drive - Forward 2 | 12.7 km/h |
| Direct Drive - Forward 3 | 22 km/h |
| Direct Drive - Forward 4 | 39 km/h |
| Reverse - 1 | 7.6 km/h |
| Reverse - 2 | 13.6 km/h |
| Direct Drive - Reverse 2 | 14.1 km/h |
| Direct Drive - Reverse 3 | 25 km/h |
| Direct Drive - Reverse 4 | 40.8 km/h |
| Specification | Value |
| Lift/Tilt System - Circuit | Load Sense |
| Lift/Tilt System - Pump | 2 × 110 cc variable displacement |
| Maximum Flow at 2,165 rpm | 470 L/min |
| Relief Valve Setting - Lift/Tilt | 27.900 kPa |
| Lift Cylinder - Bore | 190 mm |
| Lift Cylinder - Stroke | 1.138 mm |
| Tilt Cylinder - Bore | 170 mm |
| Tilt Cylinder - Stroke | 722 mm |
| Specification | Value |
| Rack Back | 4.5 s |
| Raise | 9 s |
| Dump | 3.5 s |
| Lower | 5.2 s |
| Lower Float Down | 4.3 s |
| Total Hydraulic Cycle Time | 21.3 s |
| Specification | Value |
| Fuel Tank | 535 l |
| Fuel Tank - Short Lift | 481 l |
| Cooling Systems | 100 l |
| Crankcase | 34 l |
| Diesel Exhaust Fluid Tank (For Tier 4 Final/Stage IV Only) | 23 l |
| Transmission | 75 l |
| Axle Oil - Differentials and Final Drives - Front | 186 l |
| Axle Oil - Differentials and Final Drives - Rear | 170 l |
| Hydraulic System Factory Fill | 330 l |
| Hydraulic System - Tank Only | 130 l |
| Specification | Value |
| Air Conditioning | The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430). The system contains 1.8 kg of refrigerant which has a CO2 equivalent of 2.574 metric tonnes. |
| Specification | Value |
| Front | Fixed |
| Rear | Trunnion |
| Oscillation Angle | ±12.5° |
| Oscillation Angle - Chain Arrangement | ±8.5° |
| Specification | Value |
| Brakes | ISO 3450:2011 |
| Specification | Value |
| ISO 5010:2007 - Steering System - Circuit | Load Sense |
| ISO 5010:2007 - Steering System - Pump | Piston, variable displacement |
| ISO 5010:2007 - Maximum Flow at 1,400 rpm | 200 L/min |
| ISO 5010:2007 - Steering Cutoff Pressure | 27.600 kPa |
| ISO 5010:2007 - Total Steering Angle | 70° |
| Specification | Value |
| ROPS/FOPS | ROPS/FOPS meet ISO 3471:2008 (ROPS) and ISO 3449:2005 Level II (FOPS) |
| Specification | Value |
| Operator Sound Level (ISO 6396) | 72 dB(A) |
| Machine Sound Level (ISO 6395) | 112 dB(A) |
| Note | <ul><li>The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.</li><li>Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.</li><li>The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.</li></ul> |
| Specification | Value |
| Operator Sound Level (ISO 6396) | 72 dB(A) |
| Machine Sound Level (ISO 6395) | 110 dB(A) |
| Note | <ul><li>The operator sound pressure level was measured according to the test procedures and conditions specified in ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.</li><li>Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.</li><li>The machine sound power level was measured according to the test procedures and conditions specified in ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.</li></ul> |
| Specification | Value |
| Ground to Top of ROPS | 4.100 mm |
| Ground to Top of Exhaust Stacks | 4.060 mm |
| Ground to Top of Hood | 3.270 mm |
| Ground to Center of Front Axle | 978 mm |
| Ground to Fuel Tank Clearance | 691 mm |
| Ground to Lower Hitch Clearance | 459 mm |
| Reach - Maximum Lift | 2.175 mm |
| Clearance at Maximum Lift | 3.079 mm |
| B-Pin Height - Maximum Lift | 4.912 mm |
| Maximum Overall Height - Bucket Raised | 6.817 mm |
| Rear Axle - Centerline to Bumper | 3.132 mm |
| Wheel Base | 3.810 mm |
| Maximum Overall Length | 11.143 mm |
| Front Axle Centerline to Bucket Tip | 4.201 mm |
| Note | <ul><li>All dimensions are approximate.</li><li>Specs are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul> |
| Specification | Value |
| Ground to Top of ROPS | 4.100 mm |
| Ground to Top of Exhaust Stacks | 4.060 mm |
| Ground to Top of Hood | 3.270 mm |
| Ground to Center of Front Axle | 978 mm |
| Ground to Fuel Tank Clearance | 691 mm |
| Ground to Lower Hitch Clearance | 459 mm |
| Reach - Maximum Lift | 2.248 mm |
| Clearance at Maximum Lift | 3.538 mm |
| B-Pin Height - Maximum Lift | 5.371 mm |
| Maximum Overall Height - Bucket Raised | 7.276 mm |
| Rear Axle - Centerline to Bumper | 3.132 mm |
| Wheel Base | 3.810 mm |
| Maximum Overall Length | 11.591 mm |
| Front Axle Centerline to Bucket Tip | 4.649 mm |
| Note | <ul><li>All dimensions are approximate.</li><li>Specs are calculated with a 6.1 m³ (8.0 yd³) rock bucket.</li></ul> |
Learn more information about the Cat 986K Wheel Loader.
