The ability to power your machine line-up with one engine supplier is truly achieveable with Perkins. We have introduced a platform of 9-18 litre industrial engines that completes our market-leading industrial power range and covers 8.8-597 kW (11.8-800 hp).
We have designed the Perkins 2000 range with optimised fuel consumption in mind, matching it to the operating cycles of a wide ran…
The Perkins 2000 range is suitable for the toughest operating conditions. Built in a world class manufacturing facility, and with…
Features built into the 2000 Range provide opportunities to reduce the cost of installation into your machine. With a compact pack…
| Specification | Value |
| Maximum Power | 400 kW |
| Maximum Torque | 2.353 Nm @ 1400 rpm |
| Rated Speed | 1800-2100 rpm |
| Minimum Power | 287 kW |
| Specification | Value |
| Emissions | China Nonroad Stage III, Brazil MAR-1, UN ECE R96 Stage IIIA, U.S. EPA Tier 3 |
| Specification | Value |
| Number of Cylinders | 6 inline |
| Cycle | 4 stroke |
| Bore | 130 mm |
| Stroke | 157 mm |
| Displacement | 12.5 l |
| Compression Ratio | 17.3:1 |
| Aspiration | Turbocharged aftercooled |
| Combustion System | Direct injection |
| Rotation from Flywheel End | Anti-clockwise |
| Aftertreatment | - |
| Cooling System | Liquid |
| Specification | Value |
| Length | 1.295 mm |
| Width | 1.054 mm |
| Height | 1.186 mm |
| Dry Weight | 1.138 kg |
| Specification | Value |
| Note 1 | *Final dimensions dependent on selected options |

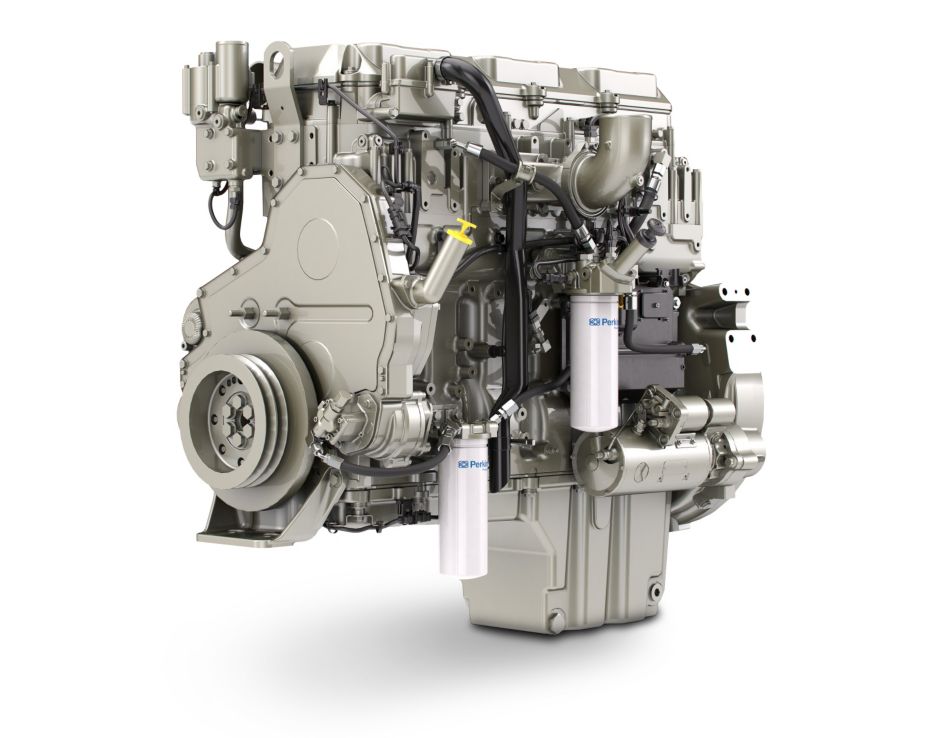

Learn more information about the Perkins 2206D-E13TA Industrial Diesel Engine.
