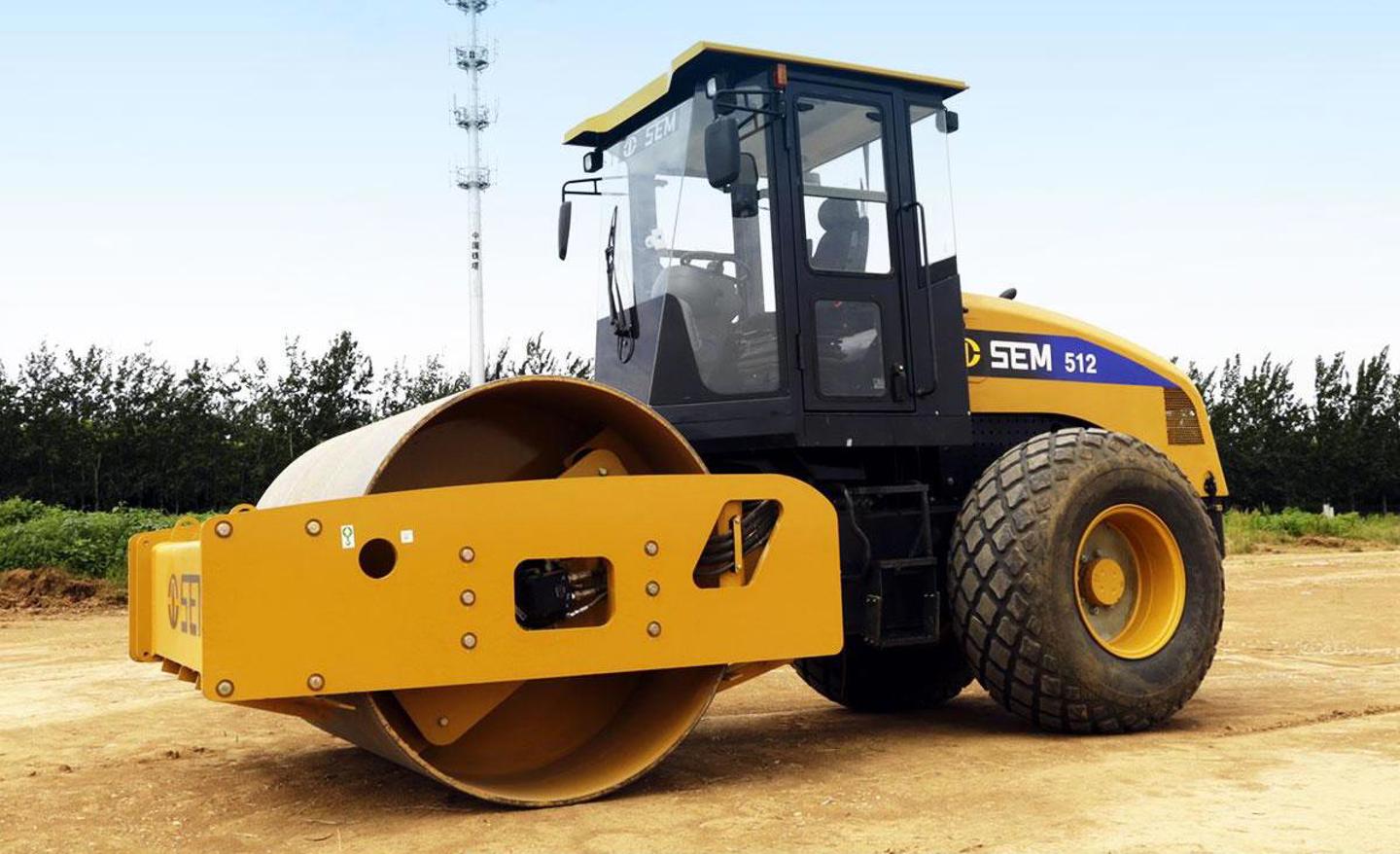

The unique vibratory pod design along with 50 mm thick drum provides superior compaction performance. Vibration system utilises eccentric vibe pod design, extends life over 50%. Digital frequency meter and three level alarm system monitor machine performance.
| Emission | China Stage ll |
| Standard Gross Rated Power | 97.5 kW |
| Rated Speed | 2,200 r/min |
| Composite Work Cycle Fuel Consumption (l/hr) | 560 N.m / 1,400-1,600 rpm |
| Ambient Capability - HA Sea Level | 49 ºC |
| Ambient Capability - Cold Weather | -10 ºC |
| Machine Mass w/Standard Configurations | 12,000 kg +3% |
| Weight at Drum w/Standard Configuration | 6,900 kg +3% |
| Weight on Rear Axle | 5,100 kg |
| Static Linear Load | 317 N/cm |
| Max. Grade Ability w/o Vibrations | 45% |
| Articulated Angle | 33º (±1) |
| Turning Radius Inside Drum Edge | 5,990 mm |
| Compaction Width | 2,130 mm |
| Lo Range | 0 - 5.5 km/h |
| High Range | 0 -12 km/h |
| Full Turn Time | 6 s (±0.5) |
| Frequency Hi/Lo | 33/30 Hz |
| Amplitude Hi-Lo | 0.90/1.80 mm |
| Centrifugal Force Hi/Lo | 150/245 kN |
| Machine Dimensions (L/W/H) | 5,815 mm / 2,290 mm / 3,130 mm |
| Oscillation Angle | 10º (±1) |
| Wheelbase | 2,900 mm |
| Tread Width | 1,600 mm |
| Drum Width | 2,130 mm |
| Drum Diameter | 1,600 mm |
| Tire Pressure Setting | 0.35 Mpa |
