Fill out our form with your model of interest and we'll send you a downloadable brochure or technical specifications document.
Used for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Ideal for clearing parking lots, industrial plants, mill yards, airport runways, streets, driveways and lanes.
Angles hydraulically or manually 30 degrees left or right; will also clean in straight position.
Strong gerotor hydraulic motor provides high torque to the bristle core and is designed to maximize performance of standard flow m…
Parking supports provide stable and secure parking of the broom when not in use.
An optional water sprinkler kit is available which helps reduce the amount of airborne dust during your sweeping operations.
Cat® Angle Brooms come standard with a 50/50 mix of replaceable polypropylene and steel wire sections. Convoluted bristle section…
| Specification | Value |
| Overall Width | 2.637 mm |
| Specification | Value |
| Sweeping Width | 2.119 mm |
| Specification | Value |
| Brush Diameter | 815 mm |
| Specification | Value |
| Required Hydraulics | Standard Flow |
| Specification | Value |
| Height | 918 mm |
| Specification | Value |
| Length | 1.741 mm |
| Specification | Value |
| Weight | 411 kg |
| Specification | Value |
| Optimal Hydraulic Flow | 42-86 L/min (11-23 gpm) |
| Specification | Value |
| Optimal Hydraulic Pressure | 145-235 bar (2100-3400 psi) |
| Specification | Value |
| Motor Displacement | 405 cm³/rev |
| Specification | Value |
| Brush Speed at Maximum Flow | 199 rpm |
| Specification | Value |
| Sweeping Width - Angled (± 30 Degrees) | 1.849 mm |
| Specification | Value |
| Overall Width - Angled (± 30 Degrees) | 2.508 mm |
| Specification | Value |
| Drive Method | Direct Drive |
| Specification | Value |
| Interface Type | Skid Steer Coupler |
| Specification | Value |
| Optional Hood Extension | 18 kg |

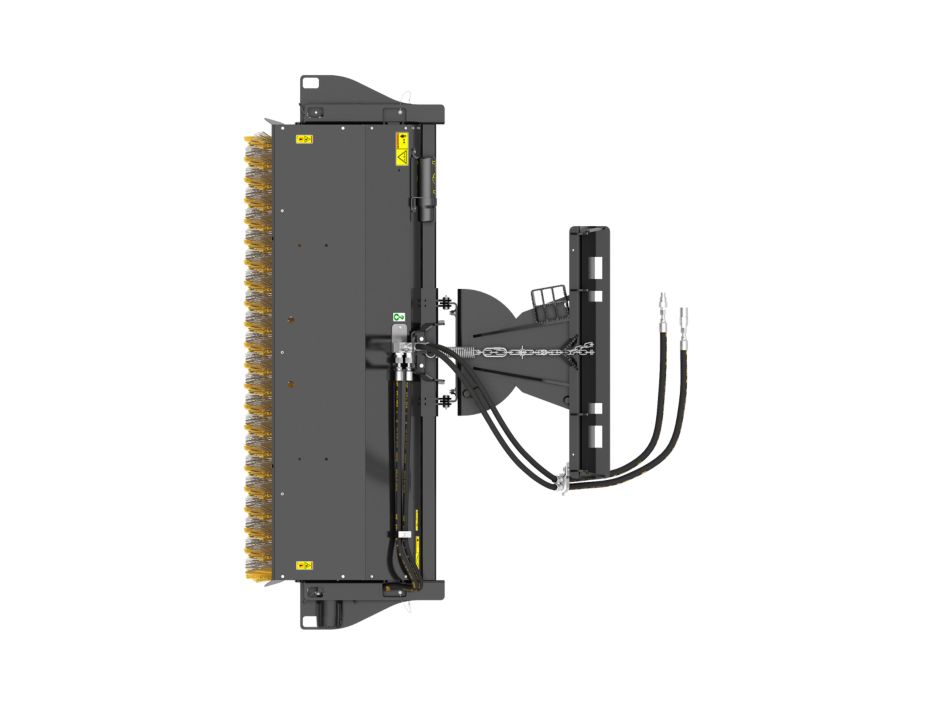

Learn more information about the Cat BA118C Manual Angle Broom With Polypropylene/Wire Bristles.
