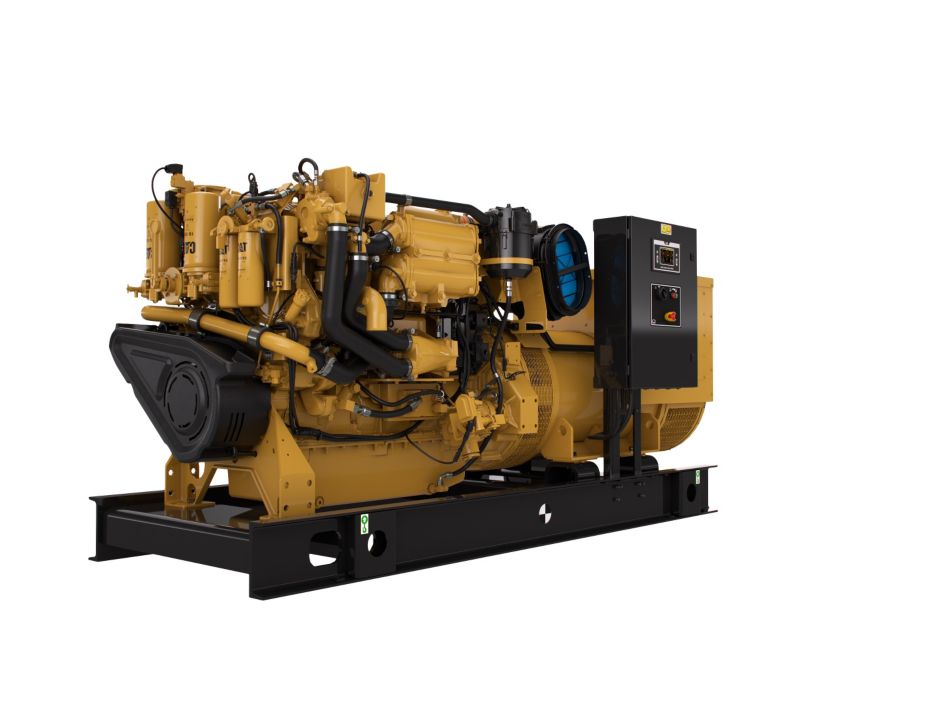

The C18 is the latest generator and brings commonality with our petroleum products as well as interfacing improvements. We have also taken this opportunity to add new price list options. All engine ratings and emissions certifications are the same, however we have been able to increase the power output of the generator for 12 of the 14 ratings.
The primary advantage of the separate circuit aftercooling system (SCAC) is that no sea water circulates through the aftercooler
EPA Tier 3 compliant, IMO II and EU IWW compliant
Heat exchanger and Keel cooled options for all ratings
Single turbo configurations for all ratings
All major MCS type approvals available from factory
Specification | Value |
Power Range | 260 - 565 ekW |
Specification | Value |
Frequency | 50 / 60 |
Minimum Rating | 260 ekW (325 kVA) |
Maximum Rating | 565 ekW (706 kVA) |
Specification | Value |
Configuration | In-line 6, 4-Stroke-Cycle Diesel |
Aspiration | Turbocharged - Aftercooled |
Bore | 145 mm |
Stroke | 183 mm |
Fuel System | MEUI |
Oil Change Interval | 250 / 500 hours |
Governor | Electronic |
Refill Capacity | 68 |
Cooling | Heat Exchanger, Keel, Radiator Cooled |
Rotation from Flywheel End | SAE No. (136 teeth) |
Specification | Value |
Emissions | EPA Tier 3, IMO II, EU IWW, EU Stage V, China II |
Specification | Value |
Height | 2.408 mm |
Length | 4.741 mm |
Width | 1.699 mm |
Weight - Approximate | 6.076 kg |
Specification | Value |
Length | 3.038 mm |
Height | 1.648 mm |
Width | 1.411 mm |
Weight - Approximate | 4.221 kg |
Specification | Value |
Excitation | SRMP |
Insulation | Class H |
IP Rating | IP23 (standard), IP 44 (optional) |
Voltage Regulator | CDVR (Digital Voltage) |
Learn more information about the Cat C18 Marine Generator Set.
