Vibratory Soil Compactors

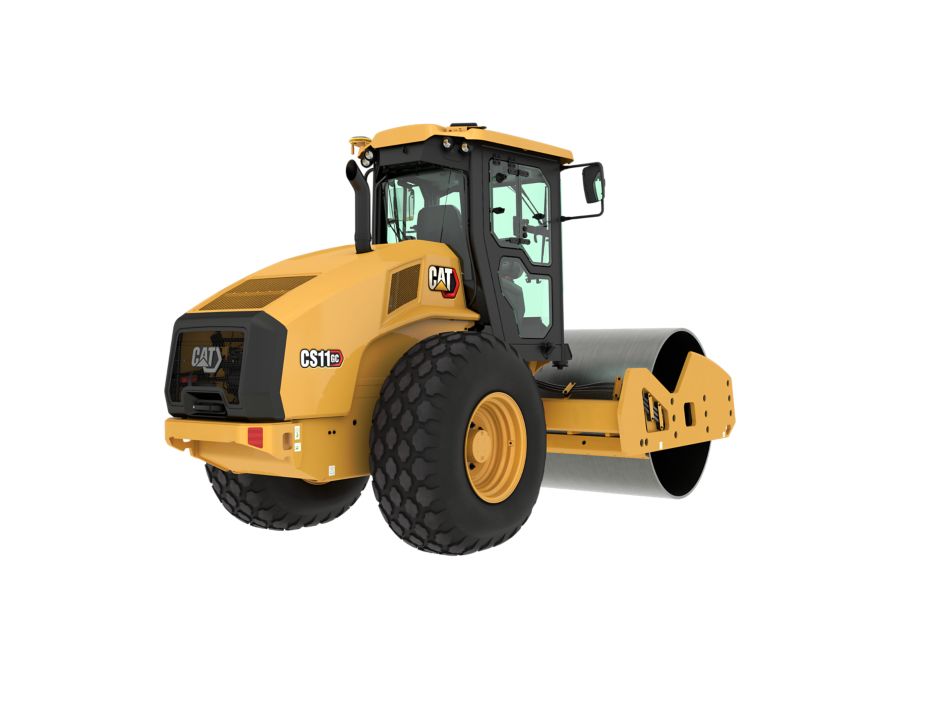

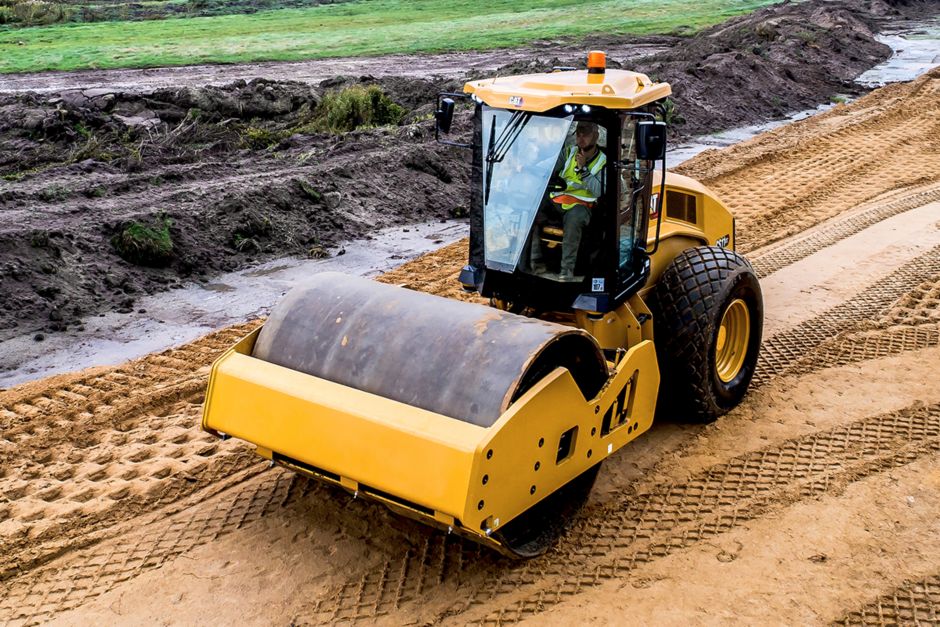

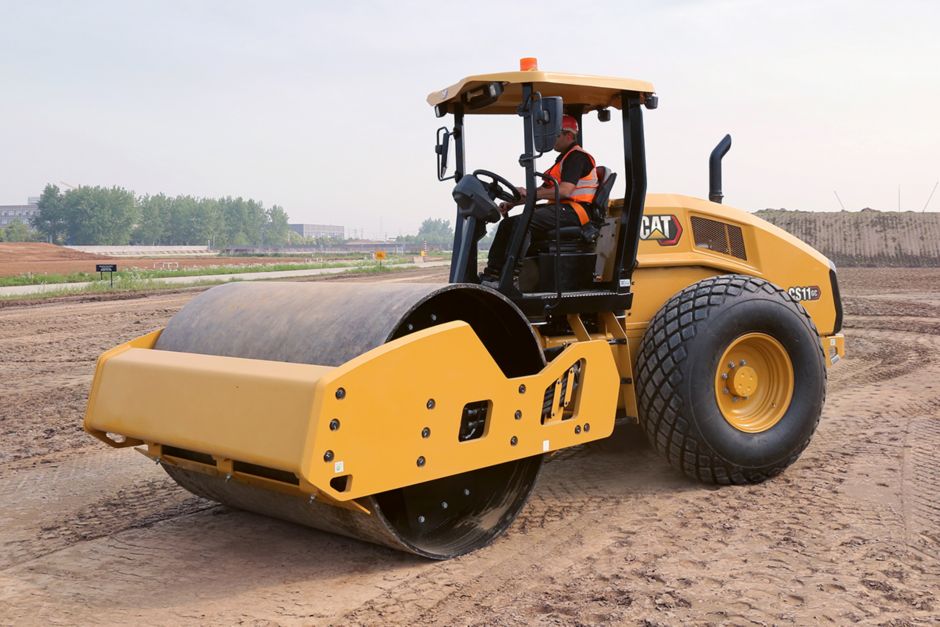

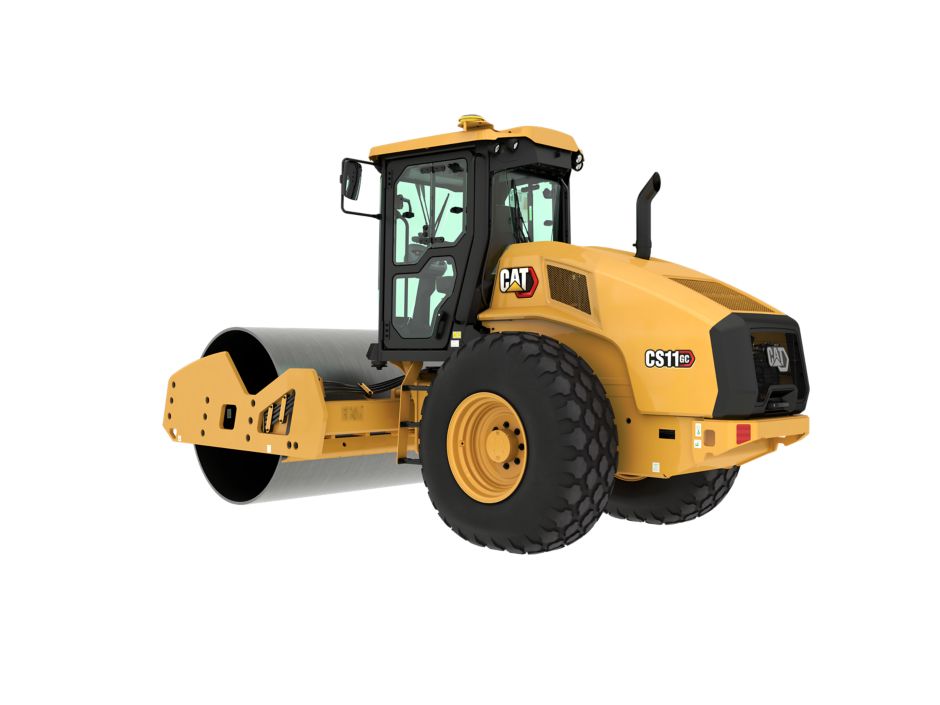

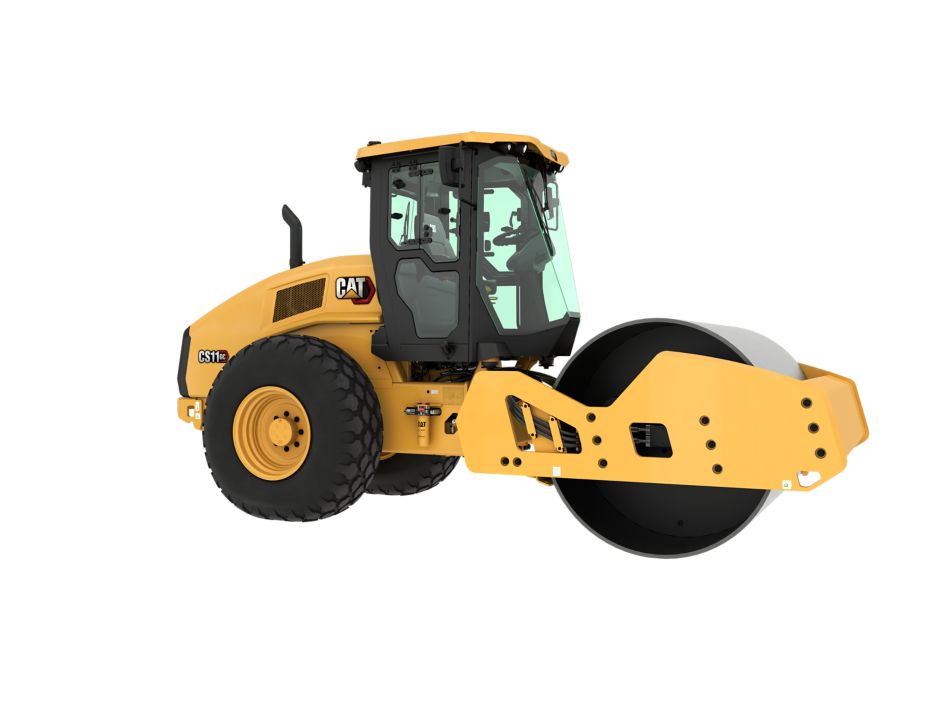

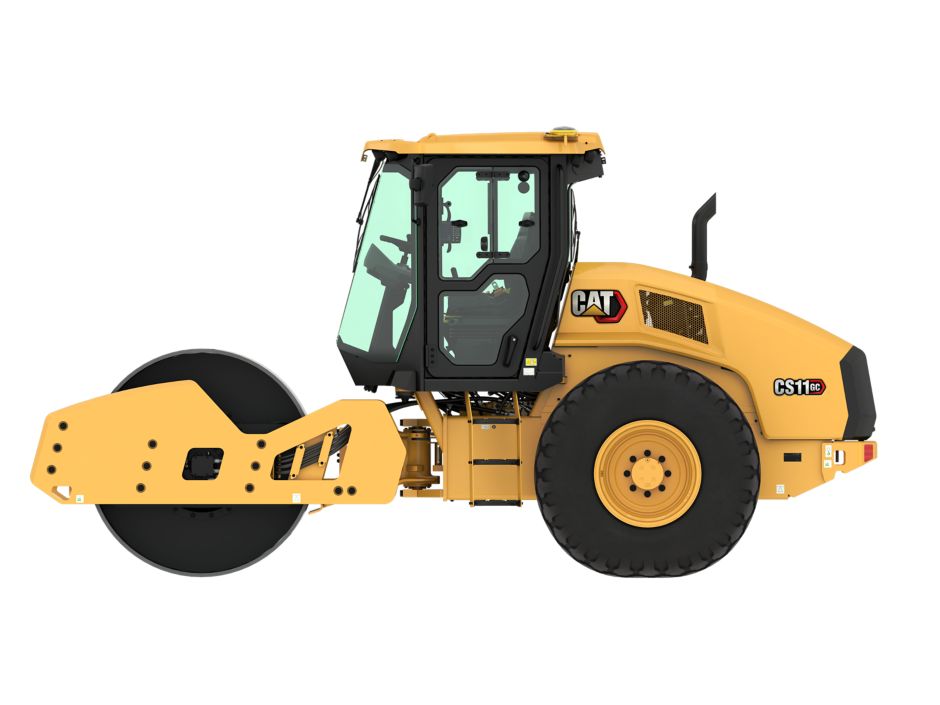

Cat CS11 GC Vibratory Soil Compactor

Operating Weight - With Cab 24661 lb

Operating Weight - With Sun Canopy 23817 lb

Compaction Width 84 in

The GC-Series Vibratory Soil Compactors deliver dependable, economical production with performance that exceeds expectations.

Pod-style Eccentric Weights

The GC-Series utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contaminatio…

The GC-Series utilizes the proven Cat pod-style vibratory system. The system design significantly reduces the risk of contamination common to conventional designs that employ metal weights. Providing unrivaled reliability and performance, the Cat pod-style vibratory system is virtually maintenance free, with the first scheduled maintenance period at 3 years or 3,000 hours.
MORE DETAILS
Cat Engine

The GC-Series Vibratory Soil Compactors feature a Cat engine that offers enhanced efficiency, better serviceability, ample power,…

The GC-Series Vibratory Soil Compactors feature a Cat engine that offers enhanced efficiency, better serviceability, ample power, and less noise.
MORE DETAILS
Comfortable and Ergonomic

A multi-position steering wheel adjusts for comfort. An adjustable vinyl seat with seat belt is comfortable and keeps controls and…

A multi-position steering wheel adjusts for comfort. An adjustable vinyl seat with seat belt is comfortable and keeps controls and operating information within easy reach. A 12-volt adapter provides power for personal electronic devices. A floor mat reduces vibrations. Cup holders are provided on the steering column. Large mirrors provide excellent views to the rear of the machine.
MORE DETAILS
Two Compaction Measurement Technologies Available

Two different compaction measurement technologies are available: Compaction Meter Value (CMV) or Machine Drive Power (MDP). Both t…

Two different compaction measurement technologies are available: Compaction Meter Value (CMV) or Machine Drive Power (MDP). Both technologies display real time measurements on the LCD display.
MORE DETAILS
Ground Level Access

Design provides ground level access to all service and maintenance points.

Design provides ground level access to all service and maintenance points.
MORE DETAILS

Technical Specifications

  • Weights
    Operating Weight - With Cab 24661 lb
    Operating Weight - With Sun Canopy 23817 lb
    Weight - Drum with Sun Canopy 13201 lb
  • Compaction Width 84 in
    Ground Clearance 20.4 in
    Travel Speed - Maximum 6.9 mile/h
    Turning Radius - Inside Drum Edge 12.7 ft
  • Gross Power 111.3 HP
    Engine Model Cat C4.4
  • Wheel Base 9.8 ft
    Overall Width 7.53 ft
    Drum Width 84 in
    Drum Diameter 60.4 in
    Overall Length 18.71 ft
    Maximum Height 9.8 ft
  • Nominal Amplitude - Low 0.039 in
    Nominal Amplitude - High 0.079 in
    Centrifugal Force - Maximum 56200 lbf
    Centrifugal Force - Minimum 33500 lbf
    Vibratory Frequency - Standard 30-33 Hz
    Vibratory Frequency - Standard 1800-1980 vpm
    Vibratory Frequency - Ecomode 28.6-31.5 Hz
    Vibratory Frequency - Ecomode 1716-1890 vpm
  • Tires 23.1 x 26
  • Fuel Tank Capacity 65.5 gal (US)
