Large wheel loaders

Cat 990

In stock

Price on request

Engine Power - ISO 14396:2002

586 kW

Operating Weight - Standard

80.974 kg

Bucket Capacity Range

8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³)

Request Quote Compare Models

Jump to section:

Benefits Specifications Gallery Alternatives Services Contact

US
Metric

Feature and benefits

The Cat® 990 Wheel Loader helps you move more material in less time, at a low cost per ton, for a fast return on your investment. This machine offers significant fuel savings, low maintenance costs, and great productivity and durability to acheive multiple life cycles.

Cat C27 engine is built and tested to meet your most demanding applications. &nb…

Cat C27 engine is built and tested to meet your most demanding applications.
Long engine life and improved fuel efficiency with reduced rated speed.
Designed for long life, rebuildability, and high resale value.
Maximum responsiveness with Steering and Integrated Control (STIC™).
Moves more material more efficiently with improved power and control.
Durable construction withstands the toughest loading conditions and multiple life cycles.

Learn More

Two engine emission options are available that meet U.S. EPA Tier 4 Final and EU Stage V emission standar…

Two engine emission options are available that meet U.S. EPA Tier 4 Final and EU Stage V emission standards or U.S. EPA Tier 2 and EU Stage II equivalent.

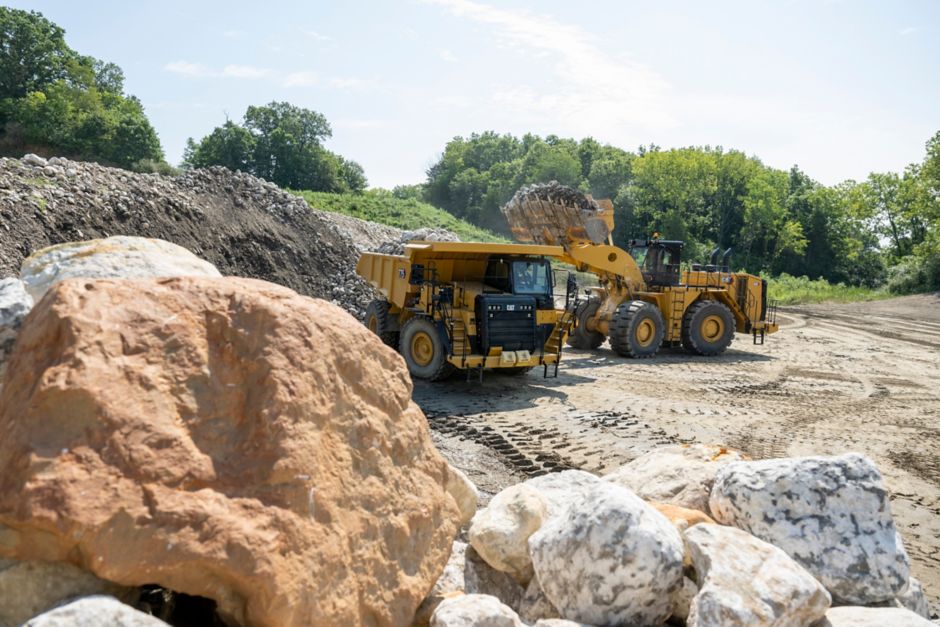

More payload per pass on truck-loading applications with Performance Series Buckets.
Payload increase to optimize pass on 775 trucks.
Positive Flow Control (PFC) hydraulic system helps increase efficiency, bucket feel, and responsiveness with consistent performance.
Excellent visibility to the bucket edges and work area through a Z-bar linkage.
Planetary power shift transmission for maximum uptime.
Convenient, responsive, electro-hydraulic controls increase operator productivity.
Superior digging, high bucket fill factors, reduced dig times.
Integrated steering and transmission controls.
Operators can check tire pressure during operation with any change sending a fault code to VisionLink®, helping to prevent premature tire failure.

Learn More

Increased efficiency material per gallon of fuel. Economy mode for reduced…

Increased efficiency material per gallon of fuel.
Economy mode for reduced rated engine speed and reduced fuel consumption.
Positive flow-control hydraulics for full flow on demand at low engine speeds.
Engine Idle Shutdown for less fuel used while idling.
Fully integrated electronic engine controls help make your fuel go farther.

Learn More

Developed to monitor, manage, and enhance your jobsite operations. Payload…

Developed to monitor, manage, and enhance your jobsite operations.
Payload provides accurate weighing* of the materials you are loading and hauling. Payload data is displayed in real-time to improve productivity and reduce overloading.
Detect helps enhance awareness of the environment around working equipment and provides alerts to help keep people and assets safe on the jobsite.
VisionLink wirelessly connects you to your equipment, giving you access to essential information you need to know to run your business.
Gain valuable insight into how your machine or fleet is performing.
Optional Advanced Productivity subscription helps provide comprehensive actionable information to help you manage and improve the productivity and profitability of your operations.

*Not legal for trade

Learn More

10% lower maintenance costs. Grouped service points. &n…

10% lower maintenance costs.
Grouped service points.
Electro-hydraulic controls.
Swing-out engine compartment service doors.
Ecology drains to prevent spills.
Ground level access to transmission control valves.
Vehicle Information Management System (VIMS™) notifications to resolve problems before failure.
Long life, rebuildability, and high resale value.

Learn More

Standard stairway lighting. Left- and right-hand stairs with 45-degree ang…

Standard stairway lighting.
Left- and right-hand stairs with 45-degree angle.
Standard Cat Vision, rear vision camera system.
Pressurized cabin with filtered and reduced sound levels.

Learn More

World-class operator comfort and ergonomics. Premium seat with heated and…

World-class operator comfort and ergonomics.
Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion.
Easy-to-reach levers and controls with seat-mounted implement pod to reduce fatigue.
Ergonomic switch placement and displays with large backlit switches, LED indicators, and ISO symbols.
Optional heated mirrors.
Two-position rocker switch activates the electro-hydraulic parking brake.
Reduced vibrations from isolated cab mounts and seat air suspension.
Automatic cab temperature controls.
Achieve precise positioning for easy loading in tight areas with 35 degrees of steering articulation.
Precise machine control by load-sensing hydraulic steering system.

Learn More

Designed to meet the demands of millyard applications. Designed for durabi…

Designed to meet the demands of millyard applications.
Designed for durability, ensuring availability in multiple life cycles.
Equipped with Economy Mode to save on fuel consumption by the use of On Demand Throttle.
Equipped with Impleller Clutch Torque Convereter (ICTC) and Rimpull Control System (RCS) to reduce tire slippage and fuel efficiency.
Full hydraulic flow down to 1,400 engine rpm by using hydraulic flow sharing technology.
Equipped with 45 degree angle access ladders and standard Cat Vision for enhanced safety.
Cat forks are designed for maximum productivity and durability.
Integrates front camera mounting location for maximum visibility to the entire fork tips during truck unloading.

Learn More

World-class safety, operator comfort and efficiency in pit digging and skull handling applications. …

World-class safety, operator comfort and efficiency in pit digging and skull handling applications.
Efficiency of manual throttle and ergonomics of throttle lock.
Excellent visibility to the bucket edges and work area through a Z-bar design.
Equipped with extra heat protection to key hoses and harnesses for improved reliability.

Learn More

World-class transmission for long life and consistent, smooth shifting; specifically designed for mining…

World-class transmission for long life and consistent, smooth shifting; specifically designed for mining applications.
Advanced filtration system for extended performance and reliability of the hydraulic system.
Advanced Impeller Clutch Torque Converter (ICTC) and Rimpull Control System (RCS) reduce tire slippage and wear, improve fuel efficiency, and reduce cost-per-ton.
Linkage pin joints have optional auto-lube system to ensure long life.
Frame resists torsional shock and twisting forces.
Heavy-duty steering cylinder mounts and axle mounting ensure increased structural integrity.

Learn More

Expand to See More

Technical specification

US
Metric

Engine

Specification	Value
Engine Power - ISO 14396:2002	586 kW
Engine Model	Cat® C27
Emissions	Option 1 - U.S. EPA Tier 4 Final/EU Stage V
Rated Speed	1.800 r/min
Gross Power - SAE J1995:2014	597 kW
Net Power - SAE J1349:2011 - Standard Ambient	546 kW
Net Power - SAE J1349:2011 - High Ambient	508 kW
Emissions	Option 2 - Emits equivalent to U.S. EPA Tier 2
Rated Speed	1800 r/min
Engine Power - ISO 14396:2002	561 kW
Gross Power - SAE J1995:2014	571 kW
Net Power - SAE J1349:2011 - Standard Ambient	521 kW
Net Power - SAE J1349:2011 - High Ambient	483 kW
Bore	137.2 mm
Stroke	152.4 mm
Displacement	27.03 l
Peak Torque - 1,200 rpm	3.557 N·m
Torque Rise	18 %
Note	Net power advertised is the power available at the flywheel when the engine is equipped with fan at minimum speed, air intake sytstem, exhaust system, and alternator.

Transmission

Specification	Value
Transmission Type	Cat planetary power shift
Forward - 1	7.4 km/h
Forward - 2	13.2 km/h
Forward - 3	23.3 km/h
Reverse - 1	8.15 km/h
Reverse - 2	14.6 km/h
Reverse - 3	25.7 km/h
Direct Drive - Forward 1	Lock-up disabled
Direct Drive - Forward 2	13.2 km/h
Direct Drive - Forward 3	23.3 km/h
Direct Drive - Reverse 1	8.15 km/h
Direct Drive - Reverse 2	14.6 km/h
Direct Drive - Reverse 3	25.7 km/h
Note	Travel speeds based on Michelin 45/65R39 LD D2**L5 tires.

Operating Specifications

Specification	Value
Operating Weight - Standard	80.974 kg
Bucket Capacity Range	8.6 m³ – 10.0 m³ (11.25 yd³ – 13.0 yd³)
Rated Payload - Standard	15.9 t
Rated Payload - High Lift	15.9 t
Cat Truck Match - Standard	773-775
Cat Truck Match - High Lift	775-777

Hydraulic System - Lift/Tilt

Specification	Value
Lift/Tilt System - Circuit	Positive flow control
Lift/Tilt System	Variable displacement piston
Maximum Flow at 1,800 rpm	910 l/min
Relief Valve Setting - Lift/Tilt	33.000 kPa
Cylinders, Double Acting - Lift, Bore and Stroke	235 mm × 1287 mm (9.3 in × 50.7 in)
Cylinders, Double Acting - Tilt, Bore and Stroke	292.1 mm × 820 mm (11.5 in × 32.3 in)
Pilot System	Open loop and pressure reducing
Pilot Relief Setting	3.500 kPa

Hydraulic Cycle Times

Specification	Value
Rack Back	4.3 s
Raise	8.6 s
Dump	2.9 s
Lower	3.7 s
Lower Float Down	3.7 s
Total Hydraulic Cycle Time - Empty Bucket	13.8 s

Hydraulic System - Steering

Specification	Value
Steering System - Circuit	Pilot, load sensing
Steering System - Pump	Piston, variable displacement
Maximum Flow at 1,400 rpm	364 l/min
Relief Valve Setting - Steering	34.500 kPa
Total Steering Angle	70°

Air Conditioning System

Specification	Value
Air Conditioning	• The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. • If equipped with R134a (Global Warming Potential = 1430), the system contains 2.7 kg (5.9 lb) of refrigerant which has a CO2 equivalent of 3.861 metric tonnes (4.256 tons).

Axles

Specification	Value
Front	Fixed
Rear	Trunnion
Oscillation Angle	8.5°

Brakes

Specification	Value
Brakes	ISO 3450: 2011

Service Refill Capacities

Specification	Value
Fuel Tank	1.064 l
Cooling System	208 l
Engine Crankcase	75.7 l
Transmission	110 l
Differential - Final Drives - Front	271 l
Differential - Final Drives - Rear	261 l
Hydraulic System Factory Fill	795 l
Hydraulic Tank - Implement and Hydraulic Fan	261 l
Hydraulic Tank - Steering and Braking	132 l
Note	Cat U.S. EPA Tier 4 Final/EU Stage V diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels** up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (hydrotreated vegetable oil) and GTL (gas-to-liquid) fuels Refer to guidelines for successful application. Please consult your Cat dealer or “Caterpillar Machine Fluids Recommendations” (SEBU6250) for details. * Engines with no aftertreatment devices can use higher blends, up to 100% biodiesel (for use of blends higher than 20% biodiesel, consult your Cat dealer). ** Tailpipe greenhouse gas emissions from lower-carbon intensity fuels are essentially the same as traditional fuels. – Cat DEO-ULS™ or oils that meet the Cat ECF-3, API CJ-4, API CK-4, and/or ACEA E9 specifications are required. – Diesel Exhaust Fluid (DEF) that meets all requirements defined in ISO 22241-1:2006.

Sound Performance - Tier 4 Final / Stage V

Specification	Value
Operator Sound Pressure Level (ISO 6396:2008)	72 dB(A)
Machine Sound Power Level (ISO 6395:2008)	116 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*	72 dB(A)
Machine Sound Power Level (ISO 6395:2008)*	114 dB(A)
Note (1)	*Sound suppression equipped
Note (2)	The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (3)	The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (4)	Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Sound Performance - Tier 2

Specification	Value
Operator Sound Pressure Level (ISO 6396:2008)	72 dB(A)
Machine Sound Power Level (ISO 6395:2008)	116 dB(A)
Operator Sound Pressure Level (ISO 6396:2008)*	72 dB(A)
Machine Sound Power Level (ISO 6395:2008)*	114 dB(A)
Note (1)	*Sound suppression equipped
Note (2)	The machine sound power level was measured according to ISO 6395:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (3)	The operator sound pressure level was measured according to ISO 6396:2008. The measurement was conducted at 70 percent of the maximum engine cooling fan speed.
Note (4)	Hearing protection may be needed when the machine is operated with a cab that is not properly maintained or when the doors or windows are open for extended periods or in a noisy environment.

Dimensions (Approximate) - Standard Lift Linkage

Specification	Value
Ground to Top of ROPS	5.240 mm
Ground to Top of Exhaust Stacks	5.049 mm
Ground to Top of Hood	3.862 mm
Ground to Bumper Clearance	1.079 mm
Rear Axle - Centerline to Bumper	3.795 mm
Front Axle Centerline to Bucket Tip	4.689 mm
Wheel Base	4.600 mm
Maximum Overall Length	13.084 mm
Ground to Lower Hitch Clearance	596 mm
Ground to Center of Front Axle	1.290 mm
Clearance at Maximum Lift	4.044 mm
Rack Back Angle at Ground Level	40.4°
Rack Back Angle at Carry	48.8°
B-Pin Height - Maximum Lift	6.009 mm
Maximum Overall Height - Bucket Raised	8.281 mm
Rack Angle at Maximum Lift	63.7°
Dump Angle at Maximum Lift	45°
Reach - Maximum Lift	2.194 mm
Note	Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires.

Dimensions (Approximate) - High Lift Linkage

Specification	Value
Ground to Top of ROPS	5.240 mm
Ground to Top of Exhaust Stacks	5.049 mm
Ground to Top of Hood	3.862 mm
Ground to Bumper Clearance	1.079 mm
Rear Axle - Centerline to Bumper	3.795 mm
Front Axle Centerline to Bucket Tip	5.425 mm
Wheel Base	4.600 mm
Maximum Overall Length	13.820 mm
Ground to Lower Hitch Clearance	596 mm
Ground to Center of Front Axle	1.290 mm
Clearance at Maximum Lift	4.521 mm
Rack Back Angle at Ground Level	39.9°
Rack Back Angle at Carry	49.3°
B-Pin Height - Maximum Lift	6.470 mm
Maximum Overall Height - Bucket Raised	8.742 mm
Rack Angle at Maximum Lift	60.6°
Dump Angle at Maximum Lift	51°
Reach - Maximum Lift	2.583 mm
Note	Specifications are calculated with 9.0 m3 (11.8 yd3) rock bucket and Bridgestone 45/65R39 VSDL One Star tires.

Note

Standard and optional equipment may vary. Consult your Cat dealer for details.

Operator environment

Air conditioner and heater with automatic temperature control
Cab, sound-suppressed and pressurized, rollover protective structure/falling objects protective structure (ROPS/FOPS)
Cat Vision, rear vision camera system
12-volt power port
Coat hook
Cab precleaner, powered
Electro-hydraulic tilt and lift controls (seat mounted)
Flip-up armrest
Heater and defroster
CB radio ready
Horn, electric
Implement hydraulic lockout
Instrumentation, gauges:
– Engine coolant temperature
– Fuel level
– Ground speed
– Gear
– Hydraulic oil temperature
– Speedometer/tachometer
– Torque converter temperature
Instrumentation, warning indicators:
– Action alert system, three category
– Automatic transmission model enable status
– Brake malfunction
– Bucket float status
– Delayed engine shutdown status
– Engine idle shutdown status
– Engine malfunction
– Fuel economy mode enable status
– Hydraulic lockout
– Lockup clutch enable status
– Low fuel level
– Parking brake status
– Rimpull control enable status
– Seatbelt warning
– Secondary steering (if equipped)
– Throttle lock status
– Transmission gear
Keypad, control with indicator lights:
– Auto trans mode speed range
– Auto/manual transmission mode
– Fuel economy mode
– Implement kickout
– Lockup clutch
– Reduced rimpull
– Throttle lock
Light, dome (cab)
Lunchbox and beverage holders
Mirrors, rearview (externally mounted)
Premium seat with heated and actively cooled leather, adjustable lumbar support, air adjustable bolsters on the seat and backrest, seat cushion tilt adjustment, and adjustable-length seat cushion
Seat belt, retractable, 76 mm (3 in) wide
Steering and Transmission Integrated Control (STIC™) system with steering lock
Tinted glass
Trainer seat with lap belt
Vital Information Management System (VIMS™) with graphical information display: external data port, customizable operator profiles, cycle timer, and integral Cat Production Measurement
– Wet-arm wipers/washers (front, rear and corner) intermittent front wiper

Powertrain

Brakes, full hydraulic, enclosed, oil-disc
Axle-shaft oil-disc service brake
Electro hydraulic parking brake
Case drain screens
Cat clean emission module (CEM) - (Tier 4 only)
Demand fan
Engine Cat C27
Fuel priming pump (electric)
Ground level shutdown switch
Mufflers (under hood) (Tier 2 equivalent only)
Precleaner, engine air intake
Radiator, Aluminum Modular (AMR)
Separated cooling system
Starting aid, (ether) manual override
Throttle Lock
Torque Converter, Impeller Clutch (ICTC) with lock-up clutch (LUC), and rimpull control system
Transmission, 534 mm (21 in) planetary power shift (electronic) (3F/3R)

Electrical

Alarm, back-up
Alternator, 150 amp
Batteries, maintenance free (2 – 1,400 CCA)
Converter, 10/15 amp, 24V to 12V
Deutsch component connectors
Electrical system, 24V
Electronic transmission control
Lighting system, halogen (front and rear) lighting, access stairway, engine compartment
Starter, electric
Auxiliary start receptacle

Other

Automatic bucket lift kickout/positioner
Axle temperature sensor
Battery disconnect and jump start receptacle, bumper
Coupling, Caterpillar O-ring face seals
Economy mode with on demand throttle
Emergency platform exit
Engine, crankcase, 500 hour interval with CH4
Engine idle management features:
– Auto idle kickdown
– Delayed engine shutdown
– Engine idle shutdown
Fenders, steel (front)
Guards, crankcase and powertrain
Ground level lockable battery disconnect switch
Grouped/labeled lube points
Hitch, drawbar with pin
Hoses, Cat XT™
Oil sampling valves
Positive flow control hydraulic system
Product Link™
Sight Gauges: hydraulic tanks, steering/fan and implement/brake, and transmission
Stairway, left and right rear access
Steering, load sensing
Toe kicks
Vandalism protection caplocks
Venturi stack
Premixed 50% concentration of extended life coolant with freeze protection to –34° C (–29° F)

Note

Standard and optional equipment may vary. Consult your Cat dealer for details.

Powertrain

–50° C (–58° F) antifreeze
Engine oil change system, high speed, Wiggins
Engine block heater 120V or 240V
High ambient cooling – software

Operator environment

Cat Detect, object detection system
AM/FM/CD/MP3 radio
Satellite Sirius radio with Bluetooth®
LED warning strobe
Mirrors heated
Window pull-down visor

Other

Front and rear roading fenders
Fast fill fuel system (Shaw-Aero)

Other optional configurations

Millyard
Steel Mill

Download technical specifications

Learn more information about the Cat 990 Wheel Loader.

Download (2.22 MB, PDF)

Media gallery

Filter by category:
All
Photos
360 View
Videos

Frequently compared machines

Service Solutions

From pre-purchase consults to end-of-lifecycle benefits, Mantrac informs, advises and partners with you.

/media/3zzdz1bk/mantrac_services_warranty_hero_v1.jpg?width=370

GET IN TOUCH WITH
OUR SALES TEAM

Speak with the Sales Team to learn the latest prices and information on products that can deliver value and help transform your business.

Enquire now

Speak with our local experts

Find the perfect machine or equipment solution by contacting one of our local specialists. They are on standby, ready to help you solve your operational challenges.

Mantrac Tanzania Ltd.

Plot no 4A
Nyerere Road
P.O. Box 9262
Dar es Salaam

Hotline: 0772 000 029

Connect on WhatsApp

Send an email

Large wheel loaders

Cat 990

Feature and benefits

Technical specification

Engine

Transmission

Operating Specifications

Hydraulic System - Lift/Tilt

Hydraulic Cycle Times

Hydraulic System - Steering

Air Conditioning System

Axles

Brakes

Service Refill Capacities

Sound Performance - Tier 4 Final / Stage V

Sound Performance - Tier 2

Dimensions (Approximate) - Standard Lift Linkage

Dimensions (Approximate) - High Lift Linkage

Note

Operator environment

Powertrain

Electrical

Other

Note

Powertrain

Operator environment

Other

Other optional configurations

Download technical specifications

Media gallery

Frequently compared machines

Service Solutions

Warranty & Guarantee

Technology

Financing

GET IN TOUCH WITH OUR SALES TEAM

Speak with our local experts

GET IN TOUCH WITH
OUR SALES TEAM
