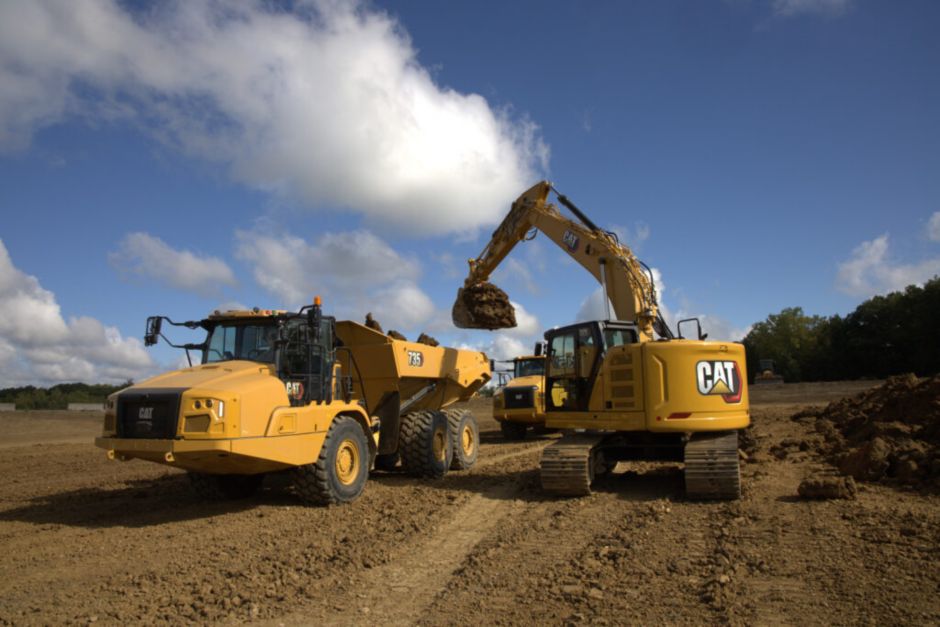

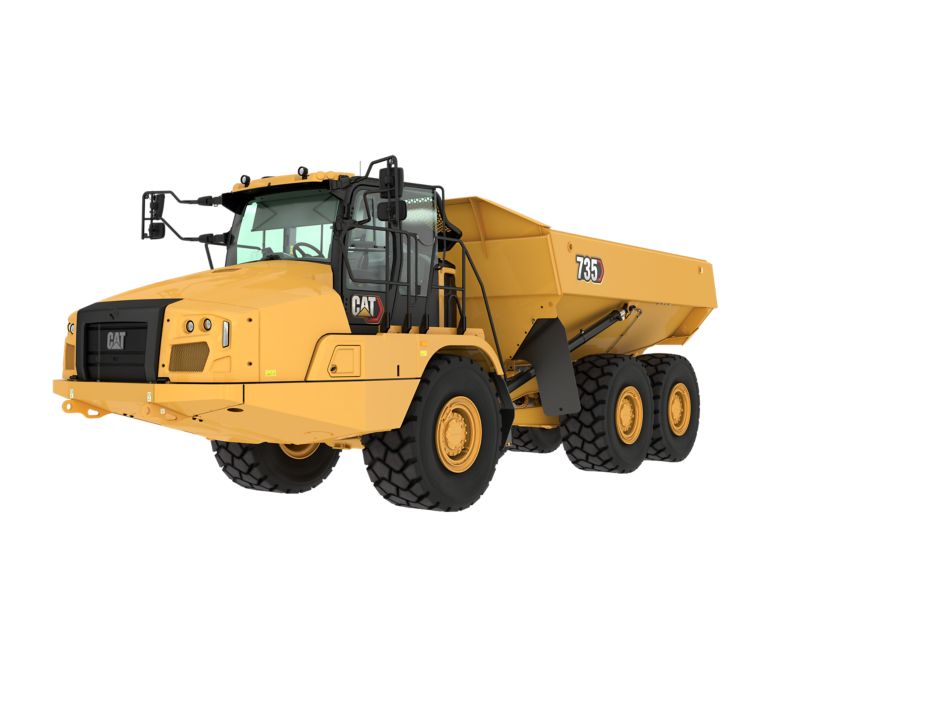

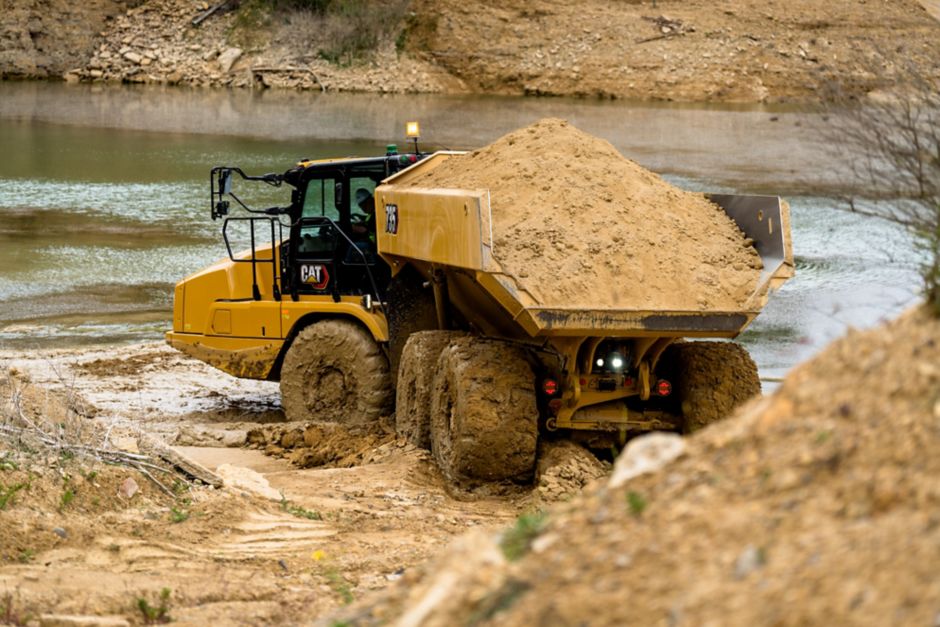

For tough quarry and mining jobs, rely on the Cat® 735 articulated truck. Its 35.3-ton (32-tonne) payload capacity is pass-matched with excavators and loaders to help you move more material and boost productivity across any jobsite.
| Specification | Value |
| Engine Model | Cat® C13A |
| Gross Power (SAE J1995) | 306 kW |
| Net Power (SAE J1349) | 298 kW |
| Engine Power (ISO 14396) | 301 kW |
| Bore | 130 mm |
| Stroke | 157 mm |
| Displacement | 12.5 l |
| Note (1) | Advertised power is tested at 1,800 rpm. |
| Note (2) | Advertised power is tested per the specified standard in effect at the time of manufacture. |
| Note (3) | Net power available at the flywheel when the engine is equipped with alternator, air cleaner, muffler, and fan at minimum speed. |
| Note (4) | Net power when the fan is at maximum speed is 298 kW (400 hp) per the SAE reference conditions. |
| Note (5) | Two engine emission options are available: 1. Meets Brazil MAR-1 emission standards, equivalent to U.S. EPA Tier 3 and EU Stage IIIA. 2. Noncertified configuration that is equivalent to U.S. EPA Tier 2 and EU Stage II. |
| No Engine De-rating Below | 3.810 m |
| Peak Engine Torque Gross (SAE J1995) | 2.192 N·m |
| Peak Engine Torque Net (SAE J1349) | 2.155 N·m |
| Peak Engine Torque Speed | 1.200 r/min |
| Specification | Value |
| Rated Payload | 32 t |
| Specification | Value |
| Heaped (SAE 2:1) | 20 m³ |
| Struck | 16 m³ |
| Tailgate Heaped SAE 2:1 | 21.7 m³ |
| Tailgate Struck | 17 m³ |
| Specification | Value |
| Forward - 1 | 8 km/h |
| Forward - 2 | 15 km/h |
| Forward - 3 | 23 km/h |
| Forward - 4 | 35 km/h |
| Forward - 5 | 48 km/h |
| Forward - 6 | 57 km/h |
| Reverse - 1 | 9 km/h |
| Specification | Value |
| Interior Cab | 72 dB(A) |
| Note (1) | The declared dynamic operator sound pressure level is 72 dB(A) when ISO 6396:2008 is used to measure the value for an enclosed cab. The measurement was conducted at 70% of the cooling fan’s maximum speed. The sound level may vary at different cooling fan speeds. The measurement was conducted with the cab doors and the cab windows closed. The cab was properly installed and maintained. |
| Note (2) | Hearing protection may be needed when operating with an open operator station and cab (when not properly maintained or doors/windows open) for extended periods or in noisy environments. |
| Specification | Value |
| Front Axle - Empty | 14.580 kg |
| Center Axle - Empty | 5.110 kg |
| Rear Axle - Empty | 4.890 kg |
| Total - Empty | 24.580 kg |
| Front Axle - Rated Load | 4.054 kg |
| Center Axle - Rated Load | 13.973 kg |
| Rear Axle - Rated Load | 13.973 kg |
| Total - Rated Load | 32.000 kg |
| Front Axle - Loaded | 18.634 kg |
| Center Axle - Loaded | 19.083 kg |
| Rear Axle - Loaded | 18.863 kg |
| Total - Loaded | 56.580 kg |
| Specification | Value |
| Type | High strength Brinell HB450 wear resistant steel |
| Specification | Value |
| Front Plate | 7 mm |
| Base Plate | 13 mm |
| Side Plates | 11 mm |
| Specification | Value |
| Fuel Tank | 400 l |
| Cooling System | 83 l |
| Hydraulic System | 110 l |
| Engine Crankcase | 38 l |
| Transmission | 56 l |
| Final Drives/Differential | 125 l |
| Output Transfer Gear Box | 25 l |
| Specification | Value |

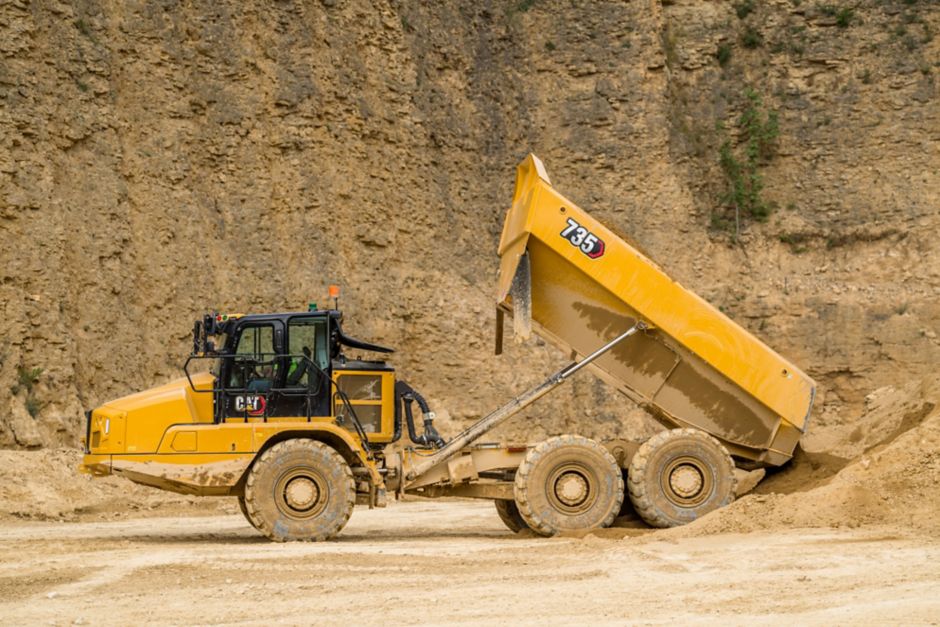

| Raise Time | 12 s |
| Lower Time | 11 s |
| Specification | Value |
| Brakes | ISO 3450 – 2011 |
| Cab - FOPS | ISO 3449 Level II – 2005 |
| Cab - ROPS | ISO 3471 – 2008 |
| Steering | ISO 5010 – 2019 |
| Specification | Value |
| Turning Dimensions - Steer Angle - Left/Right | 45° |
| Turning Dimensions - SAE Turning Radius | 7.470 mm |
| Turning Dimensions - Clearance Radius | 8.075 mm |
| Turning Dimensions - Inside Radius | 3.793 mm |
| Turning Dimensions - Aisle Width | 5.393 mm |
| Note | Dimensions are for machines equipped with 750/65 R25 tires. |
| Specification | Value |
| Lock to Lock | 4.75 seconds @ 60 rpm |
| Specification | Value |

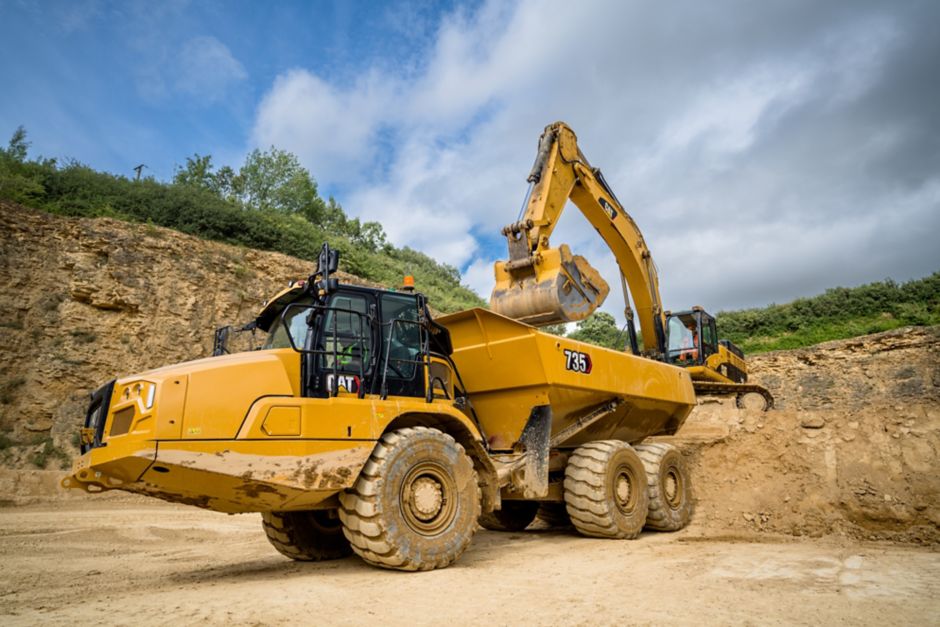

| Hydraulic Excavators: 350/352 - Passes | 4-5 |
| Hydraulic Excavators: 336 - Passes | 5-6 |
| Wheel Loaders: 972/972 XE - Passes | 3-4 |
| Wheel Loaders: 966/966 XE - Passes | 4 |
| Wheel Loader: 962 - Passes | 4-5 |
| Wheel Loader: 950 - Passes | 5 |
| Note | An optimum system match gives you a major productivity advantage. The 735 is an excellent match for the Cat 350/352 and 336 Hydraulic Excavators; and Cat 972, 966, 962 and 950 Wheel Loaders. Having matched loading and hauling tools results in increased production and lower system costs per unit of volume moved. |
Learn more information about the Cat 735 Articulated Truck.
