Compact wheel loaders

906

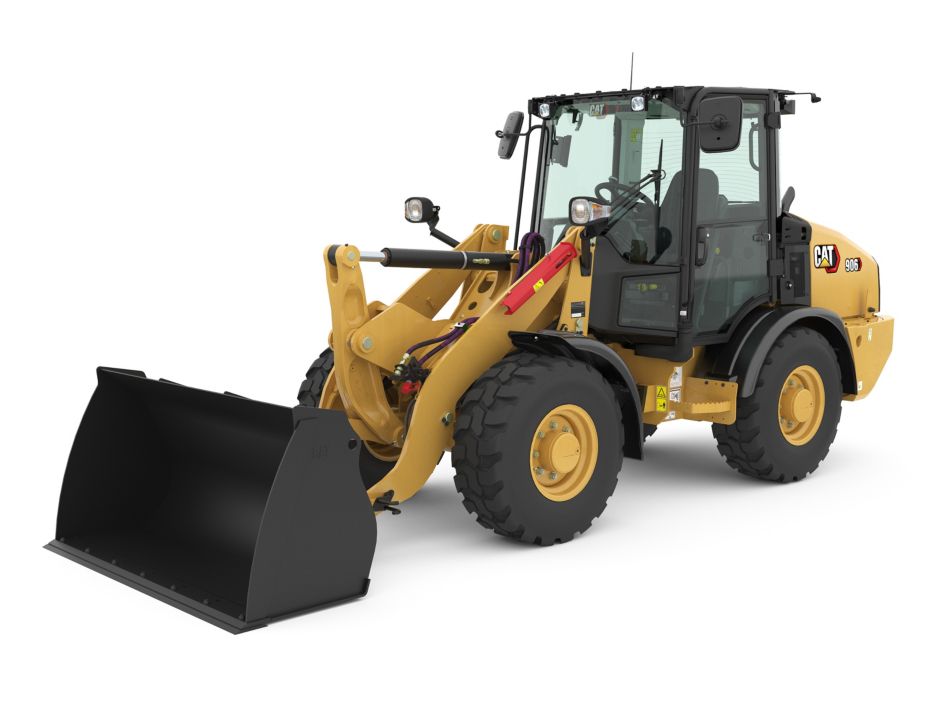

Name: 906 - Compact Wheel Loaders
Brand: Cat

In stock

Price on request

Maximum Gross Power

60 kW

Operating Weight

5.730 kg

Bucket Capacities

0.75-1.55 m³ (1.0-2.0 yd³)

Request Quote Compare Models

Jump to section:

Benefits Specifications Gallery Alternatives Services Contact

US
Metric

Feature and benefits

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. “Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles.

Configured for success

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a…

Cat® wheel loaders set the standard for productivity, fuel efficiency and operator comfort. The Cat 906 Compact Wheel Loader has a high torque C2.8 engine that works in conjunction with an intelligent hystat power train to deliver exceptional fuel efficiency. Dependent on regional requirements our engines emit equivalent to EU Stage IIIA (U.S. EPA Tier 3) or meets EU Stage V (U.S. EPA Tier 4 Final) with a clean emission module designed to manage itself so you can concentrate on the task at hand.

Learn More

Enjoy all day comfort

All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mou…

All new cab is spacious, quiet and comfortable with all around 360° visibility to keep you productive throughout the day. Seat-mounted controls feature a multifunction joystick for lift and tilt functions with an integrated thumb operated speed range, forward/neutral/reverse (FNR) switch, trigger operated differential lock and constant flow. Optional fourth function joystick also available.
Digital display with soft touch buttons for customized settings to easily control linkage and drive train to further enhance operator comfort and safety.

Learn More

Efficiently powerful

Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque,…

Cat C2.8 engine provides a cleaner, quieter operation while delivering superior performance and durability through a high torque, low speed design. Caterpillar’s exclusive Intelligent Power Management system monitors operator input and available power to keep the machine working at peak efficiency.
“Shift on the go” locking differentials and hydrostatic transmission provide smooth and powerful operation while increasing the efficiency of machine cycles. New Powertrain (Utility) Mode via the display enables right pedal machine operation giving further improved operator controllability of attachment RPM versus machine ground speed over creep control and inching pedal.

Learn More

Work made easy

All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pr…

All-in-one joystick to keep eyes on the work while maximizing operation of hydro-mechanical attachments with a state of the art pressure compensated electro-hydraulic system. Optimized Z-bar linkage for great performance and versatility with buckets that now have the DNA of the larger Cat loaders, such as curved side plates and a flat torque tube for parallel reference to the cutting edge.

Learn More

Customize your experience

Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button ba…

Work as one with your machine by customizing the controls. Operator can adjust machine responsiveness with the push of a button based on the attachment or application. Once customized, settings can be locked with “simplified mode” to ensure the machine is consistent and intuitive for every user.
Machine security is enhanced with a standard keycode or optional Bluetooth® technology.

Learn More

Purpose built specialty models

Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, La…

Machines can be built to meet industry and application specific needs: Agriculture, General Construction, Industrial and Waste, Landscaping or Snow Removal.
The 906 is availble with the following specific handler arrangements: Ag Handler and Waste Handler

Learn More

Aftermarket and services

Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.…

Range of services and aftermarket retrofits and upgrades available to keep your machine going and configured for your application.
Service and maintenance parts available, including a range of self-service options (SSO) and dealer installed kits.
Integrated Technology available to reduce service costs and maintenance.

Learn More

Expand to See More

Technical specification

US
Metric

Engine

Specification	Value
Maximum Gross Power	60 kW
Engine Model	Cat C2.8*
Maximum Engine Speed	2550 rpm
Maximum Gross Power - Rated Engine Speed	2.400 r/min
Maximum Gross Power - SAE J1995	60 kW
Maximum Gross Power - ISO 14396	55.4 kW
Maximum Gross Power - ISO 14396 (metric)	75.3 mhp
Rated Net Power - Rated Engine Speed	2.400 r/min
Rated Net Power - SAE J1349	54.4 kW
Rated Net Power - ISO 9249	53.8 kW
Rated Net Power - 2,400 rpm - ISO 9249 (metric)	73.1 mhp
Maximum Gross Torque - SAE J1995	301 N·m
Maximum Gross Torque - ISO 14396	300 N·m
Maximum Net Torque - SAE J1349	296 N·m
Maximum Net Torque - ISO 9249	295 N·m
Displacement	2.8 l
Bore	90 mm
Stroke	110 mm
Note	*Equivalent to U.S. EPA Tier 3 and EU Stage IIIA.
Note (1)	Maximum gross and net torque measured at 1,600 rpm.
Note (2)	Net power ratings are tested at the reference conditions for the specified standard.
Note (3)	Net power advertised is the power available at the flywheel.

Weights

Specification	Value
Operating Weight	5.730 kg

Buckets

Specification	Value
Bucket Capacities	0.75-1.55 m³ (1.0-2.0 yd³)
Bucket Capacities - General Purpose	0.80-1.35 m³ (1.0-1.7 yd³)
Bucket Capacities - Light Material	1.25-1.55 m³ (1.6-2.0 yd³)
Multi-Purpose	0.75-1.1 m³ (1.0-1.4 yd³)
Note	All capacities are applicable for each model. Bucket selection must be made with an understanding of the material density and application to ensure machine stability is maintained within the tipping loads stated per model and configuration.
Note (1)	Bucket capacities stated include BOCE, in line with ISO 7546.

Service Refill Capacities

Specification	Value
Fuel Tank	70 l
Cooling System	12 l
Engine Crankcase	8.8 l
Axles - Front Center Differential	8.8 l
Axles - Rear Center Differential	8.8 l
Hydraulic System - Including Tank	67.5 l
Hydraulic Tank	44.6 l
Transmission	2.4 l
Note	No Diesel Exhaust Fluid (DEF) fluid needed on this size engine.

Axles

Specification	Value
Front	Fixed (standard)
Rear	Fixed (standard)
Note	Oscillation of ±11 degrees via hitch between front and rear frames.

Steering

Specification	Value
Steering Articulation Angle - Each Direction	39 °
Maximum Flow - Steering Pump	46.7 l/min
Maximum Working Pressure - Steering Pump	23.000 kPa
Steering Cycle Times – (full left to full right) – at High Idle	2.8 s
Number of Steering Wheel Turns - Full Left to Full Right or Full Right to Full Left	3.25 turns or 4.00 turns

Transmission

Specification	Value
Forward and Reverse - Speed Range Creep#	10 km/h
Forward and Reverse - Speed Range 1*	10 km/h
Forward and Reverse - Speed Range 2** - High Speed	17 km/h
Forward and Reverse - Speed Range 2** - Standard	20 km/h
Forward and Reverse - Speed Range 3***	40 km/h
Note	#Factory default shown, can be adjusted to any speed up to 19 km/h (12 mph).
Note (1)	*Creep function not available in this gear or above.
Note (2)	**Max speed dependent on model and configuration (standard vs. high speed transmission).
Note (3)	***Reverse is 30 km/h (19 mph).

Tires

Specification	Value
Tire Size - Standard	*405/70 R18 SPT9
Tire Size - Optional	405/70 R18 Powerloads
Tire Size - Optional (1)	340/80 R18 XMCL/Bibload
Tire Size - Optional (2)	340/80 R18 TRI 2
Tire Size - Optional (3)	40X14-20 TL, SM/TR
Tire Size - Optional 4	340/80 R18 Duraforce
Note	*This tire has been used for all dimension, stability and performance data.
Note (1)	Other tire choices are available. Contact your Cat dealer for details.
Note (2)	In certain applications, the loader’s productive capabilities may exceed the tire’s tonnes-km/h (ton-mph) capabilities.
Note (3)	Caterpillar recommends that you consult a tire supplier to evaluate all conditions before selecting a tire model.

Cab

Specification	Value
ROPS	ISO 3471:2008
FOPS	ISO 3449:2005 Level II
Note (1)	Canopy and cab, Rollover Protective Structures (ROPS) are available worldwide. Canopy not available in EU.
Note (2)	The declared dynamic operator sound pressure levels per ISO 6396:2008*, when properly installed and maintained, is 71 dB(A).
Note (3)	*Measurements were conducted with the cab doors and windows closed.
Note (4)	The labelled sound power level for the CE marked configurations when measured according to the test procedure and conditions specified in 2000/14/EC is 101 dB(A). 99 dB(A) Low Sound – Option available.

Loader Hydraulic System

Specification	Value
Main Relief - 1st Auxiliary (3rd slice)	23.500 kPa
Main Relief - 1st Auxiliary (3rd slice) - Standard Flow*	80 l/min
Main Relief - 1st Auxiliary (3rd slice) - High Flow*	120 l/min
Main Relief - 2nd Auxiliary (4th slice)	23.500 kPa
Main Relief - 2nd Auxiliary (4th slice) - Flow	45 l/min
Hydraulic Cycle Time - Rackback	2.2 s
Hydraulic Cycle Time - Lift	5 s
Hydraulic Cycle Time - Dump	1.6 s
Hydraulic Cycle Time - Float Down	2.8 s
Note	* Maximum flow stated, actual flow delta could be 6% from data shown. Also adjustable from 20% to 100% of maximum flow through display.

Dimensions - With HPL-V Coupler - Approximate#

Specification	Value
Height: Ground to Cab**	2.468 mm
Height: Ground to Beacon**	2.651 mm
Height: Ground Axle Center**	480 mm
Height: Ground Clearance**	300 mm
Length: Overall*	5.369 mm
Length: Rear Axle to Bumper	1.391 mm
Length: Hitch to Front Axle	1.085 mm
Length: Wheel Base	2.170 mm
Clearance: Bucket at 45° *	2.499 mm
Clearance: Load over Height**	2.900 mm
Clearance: Level Bucket**	3.038 mm
Height: Bucket Pin**	3.244 mm
Height: Overall**	4.115 mm
Reach: Bucket at 45° *	725 mm
Carry Height: Bucket Pin	311 mm
Dig Depth**	77 mm
Width: Bucket	1.890 mm
Width: Tread Center	1.420 mm
Turning Radius: Over Bucket	4.406 mm
Width: Over Tires	1.840 mm
Turning Radius: Outside of Tires	4.007 mm
Turning Radius: Inside of Tires	2.128 mm
Rack Angle at Full Lift	56°
Dump Angle at Full Lift	45°
Rack Angle at Carry	51°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket ^	5.730 kg
Tipping Load - Straight - ISO 14397-1 †	4.427 kg
Tipping Load - Full Turn - ISO 14397-1 †	3.701 kg
Operating Weight: Carriage and Tines ^^	5.552 kg
Tipping Load - Straight †	3.514 kg
80% of Tip: Firm and Level EN474-3 ††	2.364 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%).

Dimensions - With SSL Coupler - Approximate

Specification	Value
Height - Ground to Cab	2.468 mm
Height: Ground to Beacon**	2.651 mm
Height: Ground Axle Center**	480 mm
Height - Ground Clearance	300 mm
Length - Overall with Bucket	5.527 mm
Length: Rear Axle to Bumper	1.391 mm
Length: Hitch to Front Axle	1.085 mm
Length - Wheel Base	2.170 mm
Clearance - Bucket at 45°	2.385 mm
Clearance: Load over Height**	2.900 mm
Clearance - Level Bucket	3.030 mm
Height - Bucket Pin	3.244 mm
Height: Overall**	4.205 mm
Reach - Bucket at 45°	822 mm
Carry Height: Bucket Pin	335 mm
Dig Depth	85 mm
Width - Bucket	1.890 mm
Width - Tread Center	1.420 mm
Turning Radius - Over Bucket	4.481 mm
Width - Over Tires	1.840 mm
Turning Radius: Outside of Tires	4.007 mm
Turning Radius - Inside Tire	2.128 mm
Rack Angle at Full Lift	50°
Dump Angle at Full Lift	45°
Rack Angle at Carry	46°
Departure Angle - Degrees	30°
Articulation Angle - Degrees	39°
Operating Weight: Bucket ^	5.835 kg
Tipping Load – Straight – ISO 14397-1 †	3.907 kg
Tipping Load – Full Turn – ISO 14397-1 †	3.248 kg
Operating Weight: Carriage and Tines ^^	5.640 kg
Tipping Load - Straight †	3.338 kg
80% of Tip: Firm and Level EN474-3 ††	2.254 kg
Note (1)	*Vary with bucket
Note (2)	**Vary with tire
Note (3)	^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), 0.95 m3 (1.2 yd3) general purpose bucket.
Note (4)	^^Horizontal Pin Lock Coupler (HPL-V) or Vertical Pin Coupler (SSL), class II carriage, 1220 mm (4 ft) tines (500 mm [20 in] load center).
Note (5)	†Full compliance to ISO 14397-1 (2007) Sections 1 thru 6 (fork 500 mm [20 in] load center), which requires 2% verification between calculation and testing.
Note (6)	††Full compliance to EN474-3 and SAE J1197.
Note (7)	#HPL-A weight, tipping and rated loads are within 1% of the HPL-V.
Note (8)	Dimensions listed are for a machine configured with standard cab, heater, 20 km/h (12 mph), standard guarding, 80 kg (176 lb) operator, full fluids, SPT9EM 405/70 R18 tires and 0.95 m3 (1.2 yd3) general purpose bucket with bolt-on cutting edge or a class II fork carriage and tines (tire supplier variability can impact dimensions by 2%).

Power train

Emissions compliant, two options (Dependent on regional regulations.)
– U.S. EPA Tier 4 Final and EU Stage V
– U.S. EPA Tier 3 and EU Stage IIIA equivalent
Cat C2.8 engine
– Diesel particulate filter (Fit for Life) or muffler (Dependent on regional regulations.)
– Fuel, diesel, ultra low or low Sulphur (Dependent on regional regulations.)
– Hydrostatic transmission, two speed, with inching function, “shift on the go”
– Power train mode, hystat
Air cleaner, two stage filter, with in cab audio/visual indicator on display
Axles, heavy duty, frame mounted with outboard planetary reduction
Closed circuit breather
Coolant, extended life, –36° C (–33° F)
Drive shaft, sealed for life, universal joints
Engine, auto idle shutdown, hibernation mode
Engine oil, ECO drain tap and hose
Fuel pump, priming (manual)/water separator/drain

Hydraulics

Hystat displacement pump, infinitely variable
Implement valve, pressure compensated
Joystick, single lever, single auxiliary roller
Multi-function lift and tilt with loader arm float
Motor, single drive with dedicated implement and steering pumps

Electrical

Alternator, 100 amp sealed
Battery, heavy duty, 12V, 90Ah and 1,000 CCA
Battery disconnect switch
Cab mounted fuse panel
Lights, rear stop and turn, LED
Lights, roading, front halogen
Service (Electronic Technician™)
Product Link™

Operator environment

ROPS/FOPS certified canopy/cab
– 12V power outlets, interior/exterior
– Pedals, raised, foot, brake/inching, accelerator
– Lever, parking brake
– Cup holders (2)
– CB radio clip, phone holder
– Door release, internal (left and right)
– Hook, large, coat and hard hat
– Floormat, heavy duty, easy clean
– Mirrors, (2) external breakaway, (1) internal
– Operator station on isolation mounts
– Steering wheel, spinner knob, horn in center
– Seat belt, orange, retractable, 51 mm (2 in)
– Storage, personal (trays [3], seat pocket)
– Steering column, tilt adjusted
– Column mounted multi function control: lights, roading, wipers, self cancelling turn signals
– Quick coupler switch, in cab
Display, analog and digital
– Gauges (2), hydraulic oil, engine coolant
– Digital with soft touch buttons – fuel level, speed range, speedometer, service hour meter, service/maintenance information, hydraulic and power train performance and aggressiveness settings, security passcode (multiple languages)
Joystick, seat mounted, standard multifunction
– FNR, auxiliary roller, speed range select, continuous flow, differential lock, horn
– Arm rest, padded right, multiple position vertical height
Seat, manual height adjustment, (cab) fabric with adjustable left arm rest, (canopy) vinyl
Cab
– Doors (2), fixed glass
– Wipers, front and rear, full front coverage
– Windshield, front single piece
– Window, rear heated
– Radio ready, speakers and wiring
– Air vents, (4) screen, (7) directional
– Heating, mechanical control unit
– Sun visor, solid, front full width
– Interior light (incandescent)

Other

Fenders, front and rear
Ground level easy access daily service points
Loader arm safety brace
Lockable main and side engine enclosures
Lockable, fuel cap, HVAC filters, nose cone
Machine lifting/tie down points
Paint, Electro-Coat primer, gloss topcoat
Recovery hitch with pin
Scheduled Oil Sampling (S·O·S℠) ports, engine oil and hydraulic oil

Power train

Antifreeze, extended life coolant, –50° C (–58° F)
Cold start – jacket water heater, bypass valve
Creep and throttle lock function
Fuel pump, priming, electric (Dependent on regional regulations.)
Hydrostatic transmission, 3-speed, “shift on the go”, secondary steering and boosted brakes
Power train mode, utility (includes keypad)

Electrical

Lighting packages, multiple; front, rear, engine bay (LED or HAL)
Push to start
Work tool wiring harness, (3) in cab switches

Hydraulics

Auxiliary flow, single standard (3) valve, single high flow (3) valve, dual high flow (4) valve
Caterpillar Bio HYDO Advanced hydraulic oil
Connect under pressure and case drain
Ride Control or load check valves (Dependent on regional regulations.)
Reversing fan
Quick disconnect auxiliary hydraulics

Operator station

Air Conditioning, automatic temperature control (ATC)
Doors, sliding windows (left and right)
FNR, twin auxiliary roller, continuous flow, differential lock, horn
Interior light, door activated
Joystick, seat mounted, multifunction
Mirrors (2) electronically adjustable, heated external, plus lower parabolic mirror
Phone holder, spring loaded
Radio, FM or digital audio broadcast
Seat belt options, multiple
Seat packages; deluxe or premium
Secondary display, front or rear view camera
Soft touch keypad options, 8 or 16 button
Storage, lockable box or lockable cooled box
Sun visor, rear perforated
USB ports (2), interior

Other

Couplers, vertical (SSL), horizontal (HPL-V, HPL-A)
Rotary sensors (snubbing, kickouts, parallel)

Download technical specifications

Learn more information about the Cat 906 Compact Wheel Loader.

Download (2.22 MB, PDF)

Media gallery

Filter by category:
All
Photos
360 View
Videos

Frequently compared machines

Service Solutions

From pre-purchase consults to end-of-lifecycle benefits, Mantrac informs, advises and partners with you.

/media/3zzdz1bk/mantrac_services_warranty_hero_v1.jpg?width=370

GET IN TOUCH WITH
OUR SALES TEAM

Speak with the Sales Team to learn the latest prices and information on products that can deliver value and help transform your business.

Enquire now

Speak with our local experts

Find the perfect machine or equipment solution by contacting one of our local specialists. They are on standby, ready to help you solve your operational challenges.

Iratrac Baghdad

Baghdad, Iraq

Hotline: 7800000088

Connect on WhatsApp

Send an email

Compact wheel loaders

906

Feature and benefits

Configured for success

Enjoy all day comfort

Efficiently powerful

Work made easy

Customize your experience

Purpose built specialty models

Aftermarket and services

Technical specification

Engine

Weights

Buckets

Service Refill Capacities

Axles

Steering

Transmission

Tires

Cab

Loader Hydraulic System

Dimensions - With HPL-V Coupler - Approximate#

Dimensions - With SSL Coupler - Approximate

Power train

Hydraulics

Electrical

Operator environment

Other

Power train

Electrical

Hydraulics

Operator station

Other

Download technical specifications

Media gallery

Frequently compared machines

Service Solutions

Warranty & Guarantee

Technology

Financing

GET IN TOUCH WITH OUR SALES TEAM

Speak with our local experts

GET IN TOUCH WITH
OUR SALES TEAM
