Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscaping applications.
Cat® Augers are used to drill holes for footings, fencing, sign posts, trees and shrubs in construction, agricultural and landscap…
Three different drive systems, all designed with the right amount of speed and torque for working in a broad range of soil types.A…
Rugged bits are adaptable to a number of projects. Standard bits, tree bits, industrial bits and standard rock drill head bits (b…
Various extensions allow for digging deeper and adapting to round or hex shaft bit designs. Retention pin reduces time to auger f…
Articulated joint ensures auger hangs straight, independent of machine positioning.
Mechanical swing stops protect from auger over swing.
Variable speed, bi-directional, double reduction planetary drive hydraulic gear motor mounted to a planetary gear box for optimal…
Specification | Value |
Drive Shaft Torque at Maximum Pressure | 6.830 N·m |
Specification | Value |
Drive Method | Gerotor Motor - Double Planetary Reduction |
Specification | Value |
Mounting Bracket Design | 415-444 Backhoe Loader Pin On |
Specification | Value |
Required Hydraulics | High Flow XPS |
Specification | Value |
Optimal Hydraulic Flow | 95-130 L/min (25-34 gpm) |
Specification | Value |
Optimal Hydraulic Pressure | 207-290 bar (3002-4206 psi) |
Specification | Value |
Overall Width - With Bracket | 358 mm |
Specification | Value |
Overall Length - With Bracket | 650 mm |
Specification | Value |
Overall Height | 1.006 mm |
Specification | Value |
Housing Diameter | 280 mm |
Specification | Value |
Swing Range (fore/aft) | 117 degrees |
Specification | Value |
Swing Range (L/R) | 76 degrees |
Specification | Value |
Weight | 183 kg |
Specification | Value |
Motor Displacement | 44 cm³ |
Specification | Value |
Bit Speed at Maximum Flow | 81 rpm |
Specification | Value |
Hex Output Shaft Size | 51 mm |

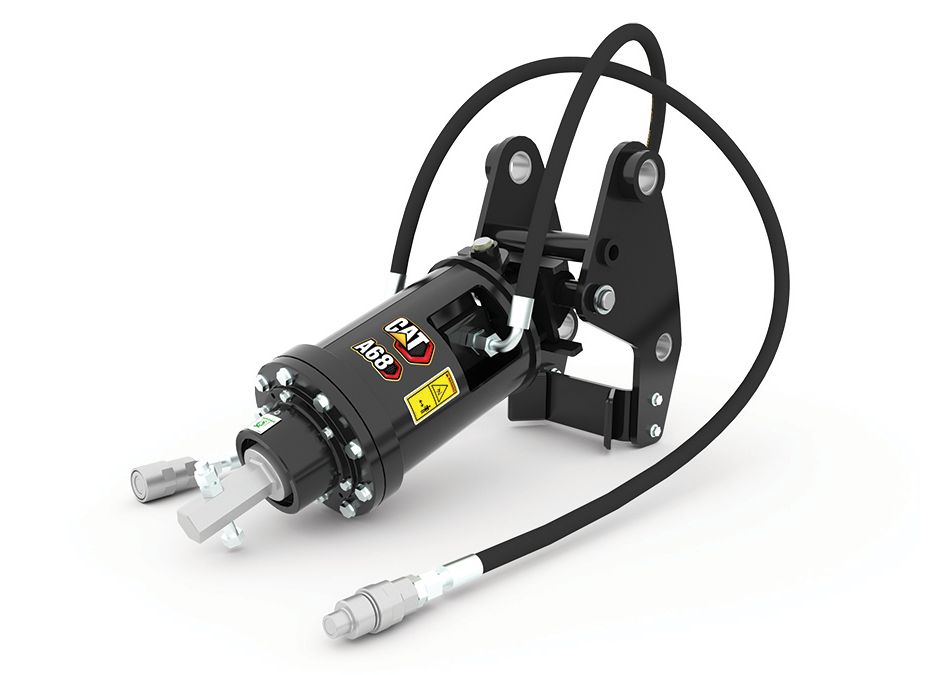

Learn more information about the Cat A68 Auger For Backhoe Loaders.
