Diesel Generator Sets

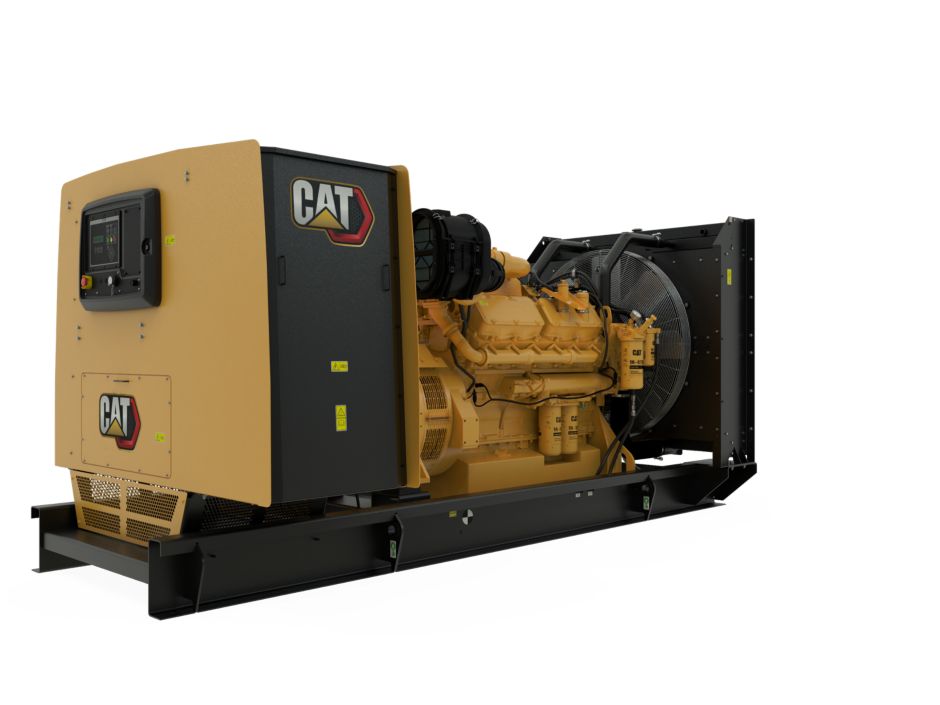

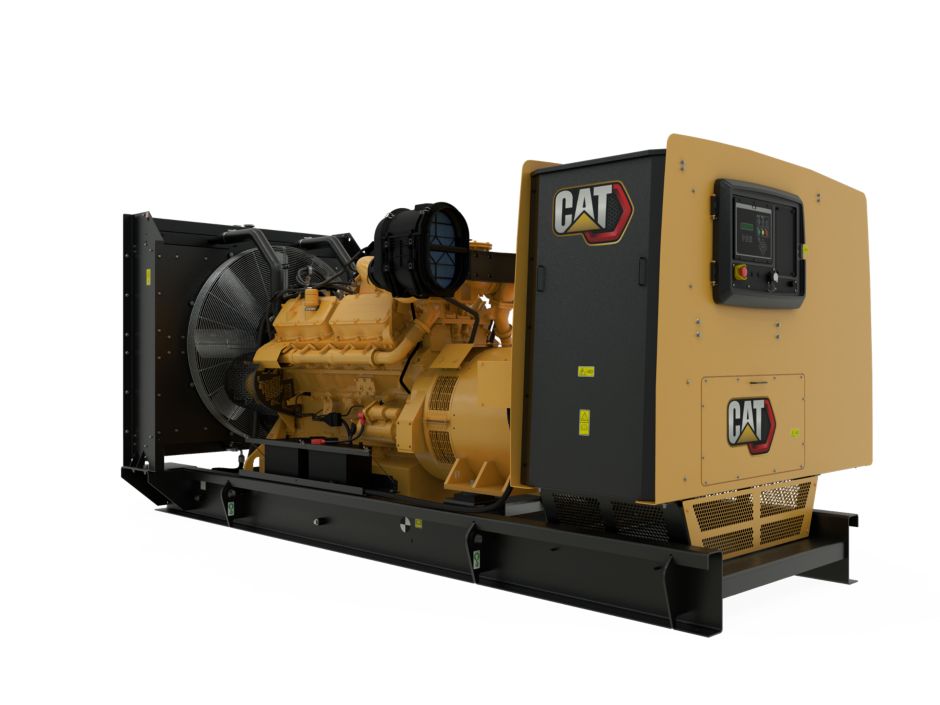

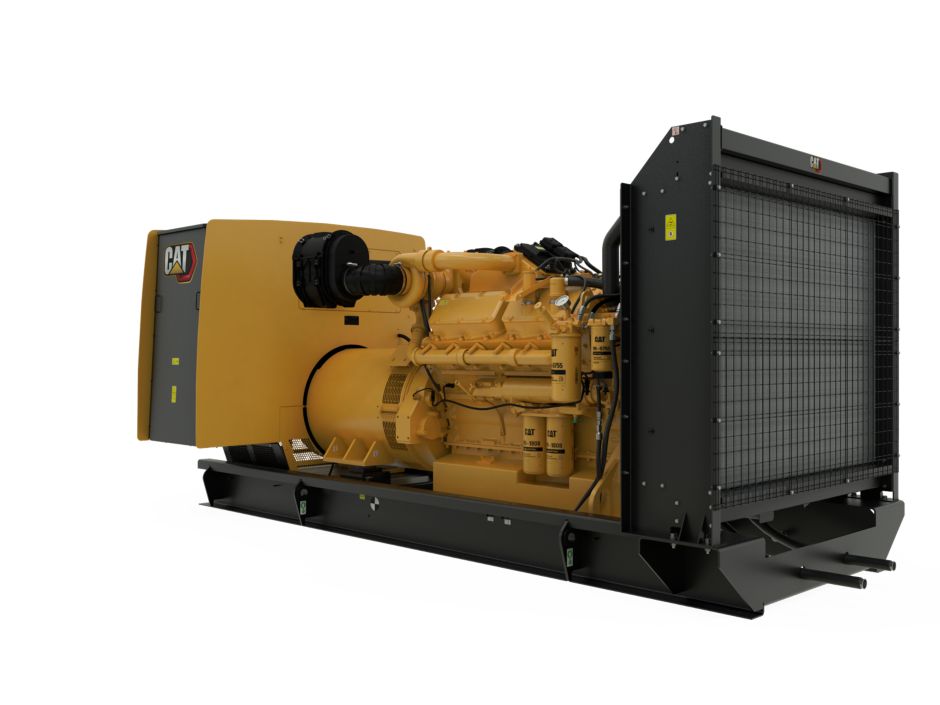

Cat 3412C Generator Set

Minimum Rating 680 kVA

Maximum Rating 900 kVA

Emissions/Fuel Strategy Low Fuel Consumption

Caterpillar is leading the power generation marketplace with Power Solutions engineered to deliver unmatched flexibility, expandability, reliability, and cost-effectiveness.

Feature Image
Cat Generator Set Package

Cat generator set packages have been fully prototype testedAccepts 100% block load in one step and meets NFPA 110 loading requirem…

  • Cat generator set packages have been fully prototype tested
  • Accepts 100% block load in one step and meets NFPA 110 loading requirements
  • Conform to ISO 8528-5 steady state and transient response requirements
MORE DETAILS
Feature Image
Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consis…

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
MORE DETAILS
Feature Image
SR500 Alternator

Superior motor starting capability minimizes need for oversizing alternatorDesigned to match performance and output characteristic…

  • Superior motor starting capability minimizes need for oversizing alternator
  • Designed to match performance and output characteristics of Cat diesel engines
  • Robust Class H insulation
MORE DETAILS
Feature Image
EMCP 4 Control Panel

User-friendly interface and navigationScalable system to meet a wide range of installation requirementExpansion modules and site-s…

  • User-friendly interface and navigation
  • Scalable system to meet a wide range of installation requirement
  • Expansion modules and site-specific programming for specific customer requirements
MORE DETAILS
Feature Image
Cooling System

Designed to operate in standard ambient temperatures up to 50°C (122°F)Contact your Cat Dealer for specific ambient and altitude c…

  • Designed to operate in standard ambient temperatures up to 50°C (122°F)
  • Contact your Cat Dealer for specific ambient and altitude capabilities
MORE DETAILS
Feature Image
Certifications

EU Declaration of ConformityEU Declaration of IncorporationEurasian Conformity (EAC)

  • EU Declaration of Conformity
  • EU Declaration of Incorporation
  • Eurasian Conformity (EAC)
MORE DETAILS
Feature Image
One Safe Source

Components used in the generator set are selected based on seamless design integration to provide the optimum performanceThe gener…

  • Components used in the generator set are selected based on seamless design integration to provide the optimum performance
  • The generator set is fully assembled at a Caterpillar facility following our quality guidelines
  • Each generator set package is tested before leaving the Caterpillar facility
  • Cat product support, including dealer service, parts and warranty covers the entire Cat power system
MORE DETAILS
Feature Image
World Wide Product Support

Cat dealers have over 1,800 dealer branch stores operating in 200 countriesYour local Cat dealer provides extensive post-sale supp…

  • Cat dealers have over 1,800 dealer branch stores operating in 200 countries
  • Your local Cat dealer provides extensive post-sale support, including maintenance and repair agreements
MORE DETAILS

Standard Equipment

Air Inlet System
  • Air cleaner, single element canister type with service indicator
Control Panel
  • EMCP 4.2B
  • Customer data link (Modbus RTU)
  • 2 programmable relay outputs (Form C)
  • Features:
  • Voltage adjust
  • Failure to start (overcrank)
  • Volts (L-L & L-N)
  • Reverse power (kW) (32)
  • Accessory module data link
  • Over / under voltage (27 / 59)
  • Speed adjust
  • Low coolant temperature
  • Oil pressure (psi, kPa or bar)
  • Environmental sealed front face
  • Generator temperature monitoring module
  • DC volts
  • Serial annunciator module data link
  • Reverse reactive power (kVAr) (32RV)
  • Amps (per phase & average)
  • High coolant temperature
  • 24-volt DC operation
  • Communications
  • Power Factor (per phase & average)
  • Compatible with the following optional modules:
  • Low coolant level
  • Text alarm / event descriptions
  • Digital I/O module
  • 6 programmable digital inputs
  • Low oil pressure
  • Remote Serial annunciator
  • Engine cycle crank
  • Local annunciator
  • Digital indication for:
  • Over / under Frequency (81 o/u)
  • Generator phase sequence
  • Emergency stop
  • kVAr (per phase, average & percent)
  • Run / Auto / Stop Control
  • Operating hours
  • kVA (per phase, average & percent)
  • Warning / shutdown with common LED indication of shutdowns for:
  • Emergency stop pushbutton
  • Frequency (Hz)
  • coolant temperature
  • Overspeed
  • 4 programmable relay outputs (Form A)
  • kW-hr (total)
  • 2 programmable digital outputs
  • Remote CAN annunciator
  • Overcurrent (50 / 51)
  • kW (per phase, average & percent)
  • RPM
  • Programmable protective relaying functions:
Cooling System
  • Radiator with guard (Sized for 50 degrees C)
  • Coolant level shutdown
  • Coolant drain line with valve, piped to edge of base
  • Fan and belt guards
  • Caterpillar Extended Life Coolant
Exhaust System
  • Stainless steel exhaust flex with ANSI style outlet flange, gasket, bolts and mating weld flange, shipped loose
Fuel System
  • Primary and secondary fuel filters
  • Fuel priming pump
  • Flexible fuel lines terminated on base
  • Water seperator
Generator and Attachments
  • 2:1 Volts/Hz
  • Bus bar termination
  • 3-phase sensing
  • Class H insulation
  • Reactive droop
  • VR6 Voltage Regulator
  • SR4B self excited
  • 12 lead
  • Class F temerature rise
Governing System
  • Cat electronic governor
Lube System
  • Oil drain line with valve, piped to edge of base
  • Lubricating oil
  • Oil filter
  • Fumes disposal, piped to front of radiator
Mounting System
  • Base, formed steel with linear vibration isolators between base and engine-generator
Starting / Charging System
  • 45 amp charging alternator
  • Battery with rack, cables
  • Fuel shutoff solenoid
  • 24 volt starting motor
Air Inlet System
  • Heavy duty air cleaners
  • Duel element air cleaners
  • Open element air cleaners
Circuit breakers
  • 1600 Amp, 3 pole, Non-UL, 100% rated, 24 volt DC shunt trip
  • 1250, 1600 Amp, 3 pole, IEC 100% rated, 24 volt DC shunt trip
Control Panel
  • Generator temperature monitoring package
  • EMCP 4.4
  • First local annunicators
  • Vandal proof panel door
  • Remote custom annunicators
  • EMCP 4.3
  • Local discrete I/O package
  • Common alarm / shutdown relay
  • Ground fault relay
  • Generator running VFC
Cooling System
  • Radiator duct flange
  • Jacket water heaters
European Certifications
  • Eurasian conformity (EAC) mark
Exhaust System
  • Through wall installation kit
  • Mufflers
  • Manifold and turbocharger guard
  • Elbow kit
Generator and Attachments
  • Permanent magnet excitation
  • Space heater
  • Digital voltage regulator
  • Oversize and premium generators
Lube System
  • Manual sump pump
Mounting System
  • Fuel tank base (1200 ltr)
Special Tests / Reports
  • PGS test report @ 0.8 power factor
  • PGS test report @ 1.0 power factor
Starting / Charging
  • Oversize batteries
  • Battery chargers
  • Battery disconnect switch
  • Heavy-duty starting system
Governing System
  • Electronic load share

Technical Specifications

  • Generator Set Specifications
    Minimum Rating 680 kVA
    Maximum Rating 900 kVA
    Emissions/Fuel Strategy Low Fuel Consumption
    Voltage 380 to 415 Volts
    Frequency 50 Hz
    Speed 1500 rpm
    Duty Cycle Standby, Prime
  • Engine Model 3412C TA, V-12, 4-Stroke Water-Cooled Diesel
    Bore 5.4 in
    Stroke 6 in
    Displacement 1648.86 in³
    Compression Ratio 13:01
    Aspiration TA
    Fuel System Pump and Lines
    Governor Type ADEM™ A5
  • Length - Maximum 162.4 in
    Width - Minimum 75 in
    Width - Maximum 78.3 in
    Height - Maximum 75 in
    Dry Weight - Genset (minimum) 12039 lb
    Dry Weight - Genset (maximum) 13030 lb
