Large dozers

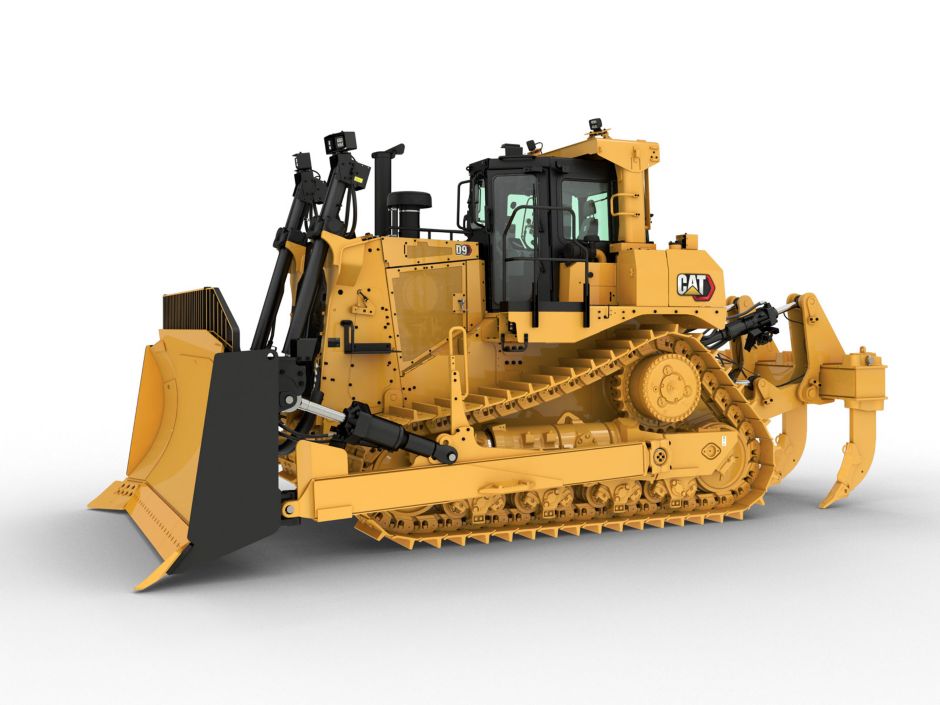

Cat D9

Name: D9 - Large Dozers
Brand: Cat

In stock

Price on request

Engine Model

Cat® C18

Engine Power - Net SAE J1349/ISO 9249

337 kW

Operating Weight

49.988 kg

Request Quote Compare Models

Jump to section:

Benefits Specifications Gallery Alternatives Services Contact

US
Metric

Feature and benefits

The Cat® D9 Dozer is a versatile machine designed to be used in a variety of applications, such as ripping overburden, production dozing, stockpiling, winching, site maintenance, fleet support and reclamation. It can be equipped with a number of blade options to meet site-specific needs. A highly reliable and fully integrated Cat machine, the D9’s components work together to ensure top performance, high availability and long life. Features like the new stator clutch torque converter boost efficiency and reduce fuel usage, and a number of onboard technology solutions further increase efficiency and performance. These improvements — and more — make the D9 a dozer that delivers a lower overall cost per unit of material moved.

Performance & efficiency

The torque converter with stator clutch automatically frees up the stator when torque multiplication is not required under low loa…

The torque converter with stator clutch automatically frees up the stator when torque multiplication is not required under low load, resulting in higher drivetrain efficiency for reduced fuel consumption.
Bogie suspension allows the track to conform to ground conditions, delivering higher traction and less slippage.
Differential steering enables large loads, with fast and smooth maneuvering.

Learn More

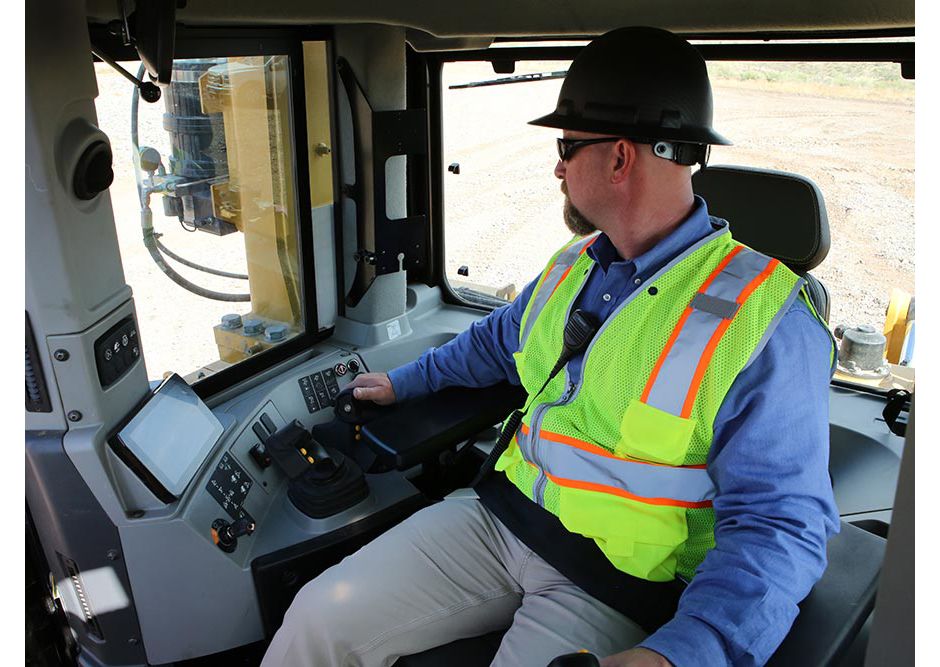

Operator comfort

The cab is unparalleled, with enhanced ergonomics, a fully adjustable air suspension seat and automatic temperature control. …

The cab is unparalleled, with enhanced ergonomics, a fully adjustable air suspension seat and automatic temperature control.
The suspended undercarriage absorbs impact and reduces shock loads transferred to the undercarriage by up to 50% for a smoother, more comfortable ride.
Low-effort electronic steering, ripper and dozer controls are easily accessible and provide sure, precise maneuvering.

Learn More

Safety

The operator station offers an exceptional viewing area, with a tapered hood, notched fuel tank, and narrow ripper carriage to giv…

The operator station offers an exceptional viewing area, with a tapered hood, notched fuel tank, and narrow ripper carriage to give the operator a clear line of sight to front and rear work areas.
The optional 360 Vision camera system and in-cab display further enhance visibility.
An optional powered ladder improves access and egress.
Ground-level access, forward-hinging cab door, retention pins on bottom guard and removed lift cylinder grease points provide a greater level of safety for service personnel.

Learn More

Productivity

Differential steering provides a tight turning radius and maintains a high ground speed while turning. The planetary powersh…

Differential steering provides a tight turning radius and maintains a high ground speed while turning.
The planetary powershift transmission controls permit smooth speed and direction changes with Advanced Productivity Electronic Control System (APECS).
The in-cab touchscreen Information Display is larger, faster, and more powerful with increased memory and intuitive menu structure.
The optional Work Monitor screen collects machine data and provides real-time feedback on machine performance to optimize productivity.
The Dual Tilt option allows the operator to optimize blade pitch angle, improving load control and making it possible to carry material instead of only pushing it.

Learn More

Versatility

The D9 is versatile enough for a variety of applications and is ideal for use in heavy construction, quarries, landfills, stockpil…

The D9 is versatile enough for a variety of applications and is ideal for use in heavy construction, quarries, landfills, stockpiles, forestry and mine sites.
The powerful Cat C18 Engine is available in U.S. EPA Tier 2, U.S. EPA Tier 3, U.S. EPA Tier 4 Final and EU Stage V configurations.
The fully suspended undercarriage provides more ground contact, leading to less slippage and more overall productivity in all applications.
Continuous power to both tracks provides smooth turning control and excellent maneuverability in every application, all while keeping ground speed high.

Learn More

Technology & innovation

Product Link™ Elite enables the remote transmission of information about the location, operation and condition of your equipment.…

Product Link™ Elite enables the remote transmission of information about the location, operation and condition of your equipment.
Automated Blade Assist (ABA) (optional) increases efficiency while reducing operator workload, making use of preset blade pitch positions for the load, carry and spread portions of the cycle.
AutoCarry™ (optional) automates blade lift to maintain desired blade load, improve load consistency and reduce track slip.
Automatic Ripper Control (optional) automatically controls ripper height to limit track slip, reducing operator fatigue.
Optional Cat MineStar™ Command for dozing offers multiple levels of remote-control operation.

Learn More

Serviceability

Features such as integrated AutoLube System, fewer greasing points, longer filter change intervals, easy component removal and con…

Features such as integrated AutoLube System, fewer greasing points, longer filter change intervals, easy component removal and continuous fluid level monitoring contribute to up to 4% maintenance and repair savings.
Grouped maintenance points minimize movement around the machine, and ground-level access enables easier service for fluids and key electrical controls.
Remote flash sends an alert from your Cat dealer, prompting you to update the software on your machine. Updates can be deployed on site, without having to wait for a dealer technician to arrive.

Learn More

Blades & attachments

The perfect match for the D9, Cat blades are aggressive in tough materials and offer superior loadability. Cat blades have t…

The perfect match for the D9, Cat blades are aggressive in tough materials and offer superior loadability.
Cat blades have the ability to resist torsional bending and distortion and offer increased wear resistance without sacrificing machine balance or performance.
Specialty attachments include single-shank ripper and multi-shank ripper

Learn More

Built to go the distance

Frame is built to absorb high-impact shock loads and twisting forces encountered during severe dozing and ripping applications. &n…

Frame is built to absorb high-impact shock loads and twisting forces encountered during severe dozing and ripping applications.
Powertrain and main components are built to be rebuilt for a cost-effective second life of like-new performance at a fraction-of-new price.
The DuraLink™ undercarriage offers 20 to 40% longer life and delivers 8,000-hour seal life with new, heavy-duty extended-life (HDXL) undercarriage.

Learn More

Sustainability

The D9 is designed to use less fuel, which reduces engine emissions. The Tier 4 Final engine reduces NOx and particulate mat…

The D9 is designed to use less fuel, which reduces engine emissions.
The Tier 4 Final engine reduces NOx and particulate matter, plus the engine is compatible with diesel fuel blended with lower-carbon intensity fuels such as biofuels and renewable fuels.
Features like extended life filters and longer maintenance intervals decrease the amount of waste contributed to the environment.
By rebuilding machines and components, the Cat Rebuild and Cat Reman programs preserve raw materials, conserve energy and reduce emissions. In addition, retrofits and upgrades for older machines incorporate efficiency improvements and emission reductions, and keep them in production longer to conserve energy and minimize the need for raw materials.
Increased commonality of systems and components, plus a reduction in unique part numbers, reduces waste and lowers owning and operating costs.

Learn More

Expand to See More

Technical specification

US
Metric

Engine - U.S. EPA Tier 2/3 Equivalent

Specification	Value
Engine Model	Cat® C18
Engine Power - Net SAE J1349/ISO 9249	337 kW
Bore	145 mm
Stroke	183 mm
Displacement	18.1 l
Engine Power - Gross SAE J1995	363 kW
Engine Power - ISO 14396	357 kW
Emissions	U.S. EPA Tier 2 or Tier 3 equivalent
Note (1)	All engine ratings apply at 1,750 rpm.
Note (2)	No derating required up to 4267 m (14,000 ft) altitude.

Engine - U.S. EPA Tier 4 Final/EU Stage V

Specification	Value
Engine Model	Cat® C18
Bore	145 mm
Stroke	183 mm
Displacement	18.1 l
Engine Power - Gross SAE J1995	356 kW
Engine Power - ISO 14396	349 kW
Engine Power - Net SAE J1349/ISO 9249	328 kW
Emissions	U.S. EPA Tier 4 / EU Stage V
Note (1)	All Engine ratings apply at 1,750 rpm.
Note (2)	No derating required up to 2499 m (8,200 ft).

FLUID CAPACITIES

Specification	Value
Fuel Tank (Splash Fill)	963 l
DEF Tank (Tier 4 only)	36 l
Fuel Tank (Fast Fill)	939 l
Cooling System	81.3 l
Engine Crankcase*	36 l
Powertrain	150 l
Final Drives (each)	15 l
Roller Frames (each)	45 l
Pivot Shaft Oil	30 l
Hydraulic System Tank	89 l
Note	*With oil filters.
Note 2	Biodiesel blends up to B20 (20% blend by volume) are acceptable when blended with 15 ppm (mg/kg) sulfur or less ULSD. B20 should meet ASTM D7467 specification (biodiesel blend stock should meet Cat biodiesel spec, ASTM D6751 or EN 14214). Cat DEO-ULSTM or oils that meet the Cat ECF-3, API CJ-4, and ACEA E9 specification are required. Consult your OMM for further machine specific fuel recommendations.
Note 3	All non-road Tier 4 Final diesel engines are required to use only ultra-low sulfur diesel (ULSD) fuels containing 15 ppm (mg/kg) sulfur or less.
Note 4	Diesel Exhaust Fluid (DEF) used in Cat Selective Catalytic Reduction (SCR) systems must meet the requirements outlined in the International Organization for Standardization (ISO) standard 22241.

Weights

Specification	Value
Operating Weight	49.988 kg
Shipping Weight	38.271 kg
Note (1)	D9 Operation Weight includes hydraulic controls, blade tilt cylinder, coolant, lubricants, full fuel tank, ROPS, FOPS cab, SU Blade, Single-Shank Ripper, 610 mm (24 in) ES shoes and operator.
Note (2)	D9 Operation Weight includes base machine chassis with cab, pivot shaft, roller frames, track and ROPS.

Hydraulic Controls

Specification	Value
Pump Type	Piston-type geared to flywheel
Pump Output - Steering	363 l/min
Fan Pump	80 l/min
Tilt Cylinder Flow - Rod End Flow	200 l/min
Tilt Cylinder Flow - Head End Flow	200 l/min
Lift Cylinder Relief Valve Setting	26.200 kPa
Tilt Cylinder Relief Valve Setting	19.300 kPa
Ripper - Lift - Relief Valve Setting	26.200 kPa
Ripper - Pitch - Relief Valve Setting	26.200 kPa
Steering System - Pressure	40.500 kPa
Tank Capacity	89 l
Note (1)	Steering pump output measured at 1,750 engine rpm and 30 000 kPa (4,350 psi).
Note (2)	Implement pump output measured at 1,750 engine rpm and 20 000 kPa (2,900 psi).
Note (3)	Fan pump output measured at 1,750 engine rpm and 17 000 kPa (2,470 psi)

Undercarriage

Specification	Value
Shoe Type	Extreme Service
Width - Shoe	610 mm
Shoes/Side	43
Grouser Height	84 mm
Pitch	240 mm
Ground Clearance	459 mm
Track Gauge	2.250 mm
Length - Track on Ground	3.470 mm
Ground Contact Area	4.23 m²
Track Rollers/Side	8
Number of Carrier Rollers	1 per side (optional)

Steering and Brakes

Specification	Value
Steering Type	Differential
Brake Type	Spring Applied Wet Disc
Brake Diameter	393.7 mm
Brake Count	8

Air Conditioning System

Specification	Value
Air Conditioning	The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a (Global Warming Potential = 1430) the system contains 2.1 kg of refrigerant which has a CO2 equivalent of 3.003 metric tonnes.

Standards

Specification	Value
ROPS	Rollover Protective Structure (ROPS) meets the following criteria ISO 3471:2008.
FOPS	Falling Object Protective Structure (FOPS) meets the following criteria ISO 3449:2005 LEVEL II.
Sound	The average dynamic spectator sound power level when ISO 6395:2008 is used to measure the value for a machine is 116 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. NOTE: The dynamic sound power level uncertainty is +/-2 dB(A).
Sound (1)	The average dynamic operator sound pressure level when ISO 6396:2008 is used to measure the value for an enclosed cab is 78 dB(A). The measurement was conducted at 70% of the maximum engine cooling fan speed. The sound level may vary at different engine cooling fan speeds. The cab was properly installed and maintained. The measurement was conducted with the cab doors and the cab windows closed. NOTE: The dynamic operator sound pressure level uncertainty is +/-2 dB(A).
Sound (2)	Hearing protection may be needed when the machine is operated with an open operator station for extended periods, in a noisy environment, or with a cab that is not properly maintained.

Transmission

Specification	Value
1.0 Forward	3.5 km/h
2.0 Forward	6.3 km/h
3.0 Forward	11 km/h
1.0 Reverse	4.4 km/h
2.0 Reverse	7.8 km/h
3.0 Reverse	13.6 km/h
Type	Planetary powershift

Blade - Semi-Universal

Specification	Value
Blade Capacity (SAE J1265)	13.6 m³
Blade Width (over end bits)	4.350 mm
Blade Height	1.934 mm
Maximum Digging Depth	606 mm
Ground Clearance at Full Lift	1.422 mm
Maximum Tilt	940 mm
Blade Weight	4.802 kg
Total Operating Weight* (with blade and single-shank ripper)	49.988 kg
Note	* Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type.

Blade - Universal

Specification	Value
Blade Capacity (SAE J1265)	16.6 m³
Blade Width (over end bits)	4.680 mm
Blade Height	1.934 mm
Maximum Digging Depth	606 mm
Ground Clearance at Full Lift	1.422 mm
Maximum Tilt	1.014 mm
Blade Weight	5.450 kg
Total Operating Weight* (with blade and single-shank ripper)	50.513 kg
Note	*Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type.

Ripper - Single Shank

Specification	Value
Maximum penetration force * (shank vertical)	158 kN
Maximum penetration depth (standard tip)	1.231 mm
Pryout Force	332 kN
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	882 mm
Number of Pockets	1
Weight	4.854 kg
Total Operating Weight* (with SU Blade and noted ripper)	49.988 kg
Note	*Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type.

Ripper - Single Shank, Deep Ripping

Specification	Value
Maximum penetration force * (shank vertical)	172 kN
Maximum penetration depth (standard tip)	1.727 mm
Pryout Force	331 kN
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	817 mm
Number of Pockets	1
Weight	4.981 kg
Total Operating Weight* (with SU Blade and noted ripper)	50.115 kg
Note	*Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type.

Ripper - Multi-Shank, Adjustable Parallelogram

Specification	Value
Maximum Penetration Force - Shank Vertical	154 kN
Maximum Penetration - Standard Tip	798 mm
Pry-Out Force - Multi-Shank Ripper with One Tooth	361 kN
Maximum Clearance Raised - Under Tip, Pinned in Bottom Hole	879 mm
Number of Pockets	3
Weight	5.550 kg
Total Operating Weight* - With SU-Blade and Ripper	50.684 kg
Note	* Total Operating Weight includes: single tilt hydraulics, coolant, lubricants, full fuel tank, ROPS, FOPS cab, 610 mm (24 in) ES track shoes and the noted blade and ripper type.

Winches

Specification	Value
Winch Model	PA 140VS
Weight*	1.790 kg
Oil Capacity	15 l
Drum Width	320 mm
Wire Cable Diameter - Recommended	28 mm
Wire Cable Diameter - Optional	32 mm
Maximum Drum Capacity - Recommended Cable Length	78 m
Maximum Drum Capacity - Optional Cable Length	62 m
Wire Cable Ferrule Size - Outside Diameter	60 mm
Wire Cable Ferrule Size - Length	70 mm
Note	*Weight shown is base winch only. Does not include mounting arrangement, control arrangement, oil, or wire rope. With counterweight: 3700 kg (8,150 lb).
Note (2)	Variable speed, hydraulically driven, dual braking system, three-roller fairlead.

Dimensions (Approximate)

Specification	Value
Ground Clearance*	459 mm
Track Gauge	2.250 mm
Width - Without Trunnions - Standard Shoe	2.870 mm
Width - Over Trunnions	3.310 mm
Height - FOPS Cab*	3.820 mm
Height - Top of Stack*	3.876 mm
Height - ROPS/Canopy*	4.000 mm
Drawbar Height (Center of Clevis)*	763 mm
Length - Track on Ground	3.470 mm
Overall Length - Basic Tractor	4.910 mm
Length - Basic Tractor - With Drawbar	5.242 mm
Length - Basic Tractor - With Winch	5.545 mm
Length - With SU-Blade**	6.601 mm
Length - With U-Blade	6.967 mm
Length - With Single-Shank Ripper	6.529 mm
Length - With Multi-Shank Ripper	6.538 mm
Overall Length - SU-Blade/SS Ripper	8.219 mm
Note (1)	*Includes grouser height for total dimensions on hard surfaces.

Operator environment

ROPS/FOPS, Sound-Suppressed Cab
High-Definition Primary Touchscreen Display
Visibility – Rearview Mirrors
Air Conditioner and Heater with Automatic Climate Control
Seatbelt, 76 mm (3 in) Retractable with Switch
Seat — Cloth with Air Suspension
Window Wipers with Wash — Low, High, Intermittent
Differential Steering — Power Turn
Entertainment Radio Ready (12V Power, Harness, Speakers)
Cab Glass — Single-Pane Tinted Safety
Cab Door — Right-Hand Swing
Access/Egress Lighting with Shutdown Timer
"Operator Not Present" Detection
Armrest — Adjustable
Interior LED Courtesy Lights
Interior Backlighting — Dimmable
Air Conditioning Condenser — Cab Mounted (Standard only on Tier 4 engine arrangements. Optional on Tier 2/3 versions. Tier 2/3 versions have underhood A/C condenser standard.)
Decelerator Pedal
Controls — Blade — Electronic
Controls — Ripper — Electronic
Park Brake — Electronic
Engine Speed Control Dial
Cab Access — Blade Pusharm Steps and Grab Handle
Fender Platform Guardrails
Site Communication Radio Mount
Four Fluids (Engine Oil, Coolant, Power Train, Fuel)
Continuous Fluid Level Monitoring — Four Fluids (Engine Oil, Power Train, Coolant, Fuel)
Slope and Side Slope Monitor

Technology

VIMS™
Automated Blade Assist (ABA) — When Equipped with Dual Tilt
Cat Product Link Elite (Cellular) (Where Allowed by Local Regulations)

Power train

Aftercooler, air-to-air
Air filter, with precleaner
Aluminum bar plate radiator, 6 fpi
C18 Tier 4 Final and Stage IV: – 24-volt electric start – Clean Emissions Module
Coolant, extended life
Shift management: - Advanced Productivity Electronic Control System (APECS) - Enhanced AutoShift (EAS)
Engine idle shutdown timer
Ether starting aid, automatic
Fast fuel system
Fuel priming pump, key-on, electric
High speed oil change system, engine and power train
Muffler
Parking brake, electronic
Prescreener
Separator, water/fuel
Three planet, double-reduction planetary final drives
Torque converter
Transmission, electronic control (ECPC), (3F/3R speeds)

Fluids

Coolant — Extended Life, Standard (— 37° C / — 25° F)

Undercarriage

Suspension-Type Undercarriage
Track Guide
Two-Piece Master Link
Lifetime-Lubricated Rollers and Idlers
Hydraulic Track Adjusters
Equalizer Bar — Greased End Pin Bearings

Hydraulics

Electronically Controlled, Load-Sensing Dozer Lift and Tilt
Electronically Controlled, Load-Sensing Ripper Lift and Pitch
Electronically Enabled Blade, Quick Drop

Electrical

Alternator — 150-Amp
Batteries — 2 x 4, 200-Amp Hour, 12V
12V, 15-Amp Converter
Battery Isolation
Backup Alarm
Lights, Engine Compartment
Lights — Halogen — 8 Positions

Service and maintenance

Ecology Fluid Drains — All Compartments
Hinged Bottom Guards
High-Speed Oil Change — Engine and Transmission
S•O•S℠ Fluid Sampling Ports
Diagnostic Connector
CapSureTM Hammerless Ripper Tip and Shank Protectors
Anchorage Points (10)

Operator environment

Visibility – Camera – Ripper Tip View
Visibility — Dual Camera
Visibility — Four Cameras — 360-Degree View
Seat — Heated, Cooled, Adjustable Lumbar and Bolsters
Entertainment Radio — AM/FM, Aux Input and Bluetooth®
Cab Glass — Dual-Pane Laminated Impact Safety
Cab Glass — High-Pressure Safety (40 psi/275 kPa)
Window Sunscreen
Small Operator 5th Percentile Mounting Group
Cab Door — Left-Hand Swing
Cab Access — Powered Ladder
Cab Filter Powered Precleaner

Technology

AutoCarry™
Auto Ripper Control
Cat Product Link Elite Dual Mode (Cellular + Satellite)
Cat GRADE with 3D

Power train

Coolant, arctic
Engine prelube
Exhaust, wrapped: – Insolated Clean Emissions Module
Final drives: – Cold weather – Guarded – Waste handling
Ground level DEF fill
Reversible cooling fan

Fluids

Coolant — Extended Life, Arctic (— 51° C / — 60° F)
High Ambient Lubrication Package
Arctic Lubrication Package

Undercarriage

Undercarriage Arrangement — Abrasion
Undercarriage Arrangement — Waste Handling
Undercarriage Arrangement — Cold Weather
Front Striker Bars
Rubber Idler Guards
Track Links — Heavy Duty XL — DuraLink
Track Shoe — Anti-Packing Round Hole Carrier Roller
Carrier Roller
Carrier Roller — Cold Weather

Hydraulics

Dozer Blade Dual Tilt
Ripper Pin Puller
Guarded Tilt Cylinder Lines

Electrical

24V Electric Start, Dual Starters
Batteries — 4 x 200, 200-Amp Hour, 12V
Lights — Halogen — 12 Positions
Lights — LED — 14 Positions
Lights — High-Output LED — 14 Positions
Light — Warning Strobe

Service and maintenance

Sound-Reduction Sealed Bottom Guards
Ground-Level Fast Fuel Fill (Standard on Tier 4)
Sound Enclosure
Cat Autolube Grease System with Ground-Level Fill and Auto Shutoff
Hinged Quick-Access Door on Radiator Guard

Rear attachments

Ripper Ready
Winch Ready
Ripper — Single Shank
Ripper — Single-Shank Deep
Ripper — Multi Shank (three shank)
Counterweight
Striker Box (Waste)
Winch
Drawbar

Blades

Semi-Universal (13.6 m3/17.8 yd3)
Semi-Universal Abrasion (13.6 m3/17.8 yd3)
Universal (16.6 m3/21.7 yd3)
Universal Abrasion (16.6 m3/21.7 yd3)
Semi-Universal Push Plate (13.6 m3/17.8 yd3)
SU Landfill (28.2 m3/36.8 yd3)
Universal Landfill (38.8 m3/50.8 yd3)
Woodchip (46.1 m3/60.3 yd3)
Coal (36.8 m3/48.2 yd3)
— Some blades only available through Cat Work Tools.
— SU Abrasion and U Abrasion are available with black paint on back side.

Other

Fire Suppression Ready

Special arrangements

High Debris
Stockpile
Waste Handling
Sound
Arctic

Download technical specifications

Learn more information about the Cat D9 Dozer.

Download (2.22 MB, PDF)

Media gallery

Filter by category:
All
Photos
360 View
Videos

Frequently compared machines

Service Solutions

From pre-purchase consults to end-of-lifecycle benefits, Mantrac informs, advises and partners with you.

/media/3zzdz1bk/mantrac_services_warranty_hero_v1.jpg?width=370

GET IN TOUCH WITH
OUR SALES TEAM

Speak with the Sales Team to learn the latest prices and information on products that can deliver value and help transform your business.

Enquire now

Speak with our local experts

Find the perfect machine or equipment solution by contacting one of our local specialists. They are on standby, ready to help you solve your operational challenges.

Mantrac Djibouti

DAMAL COMPLEX Route de la Siesta BP334) Djibouti Republique de Djibouti

Hotline: 25321343408

Large dozers

Cat D9

Feature and benefits

Performance & efficiency

Operator comfort

Safety

Productivity

Versatility

Technology & innovation

Serviceability

Blades & attachments

Built to go the distance

Sustainability

Technical specification

Engine - U.S. EPA Tier 2/3 Equivalent

Engine - U.S. EPA Tier 4 Final/EU Stage V

FLUID CAPACITIES

Weights

Hydraulic Controls

Undercarriage

Steering and Brakes

Air Conditioning System

Standards

Transmission

Blade - Semi-Universal

Blade - Universal

Ripper - Single Shank

Ripper - Single Shank, Deep Ripping

Ripper - Multi-Shank, Adjustable Parallelogram

Winches

Dimensions (Approximate)

Operator environment

Technology

Power train

Fluids

Undercarriage

Hydraulics

Electrical

Service and maintenance

Operator environment

Technology

Power train

Fluids

Undercarriage

Hydraulics

Electrical

Service and maintenance

Rear attachments

Blades

Other

Special arrangements

Download technical specifications

Media gallery

Frequently compared machines

Service Solutions

Warranty & Guarantee

Technology

Financing

GET IN TOUCH WITH OUR SALES TEAM

Speak with our local experts

GET IN TOUCH WITH
OUR SALES TEAM
