Diesel Generator Sets

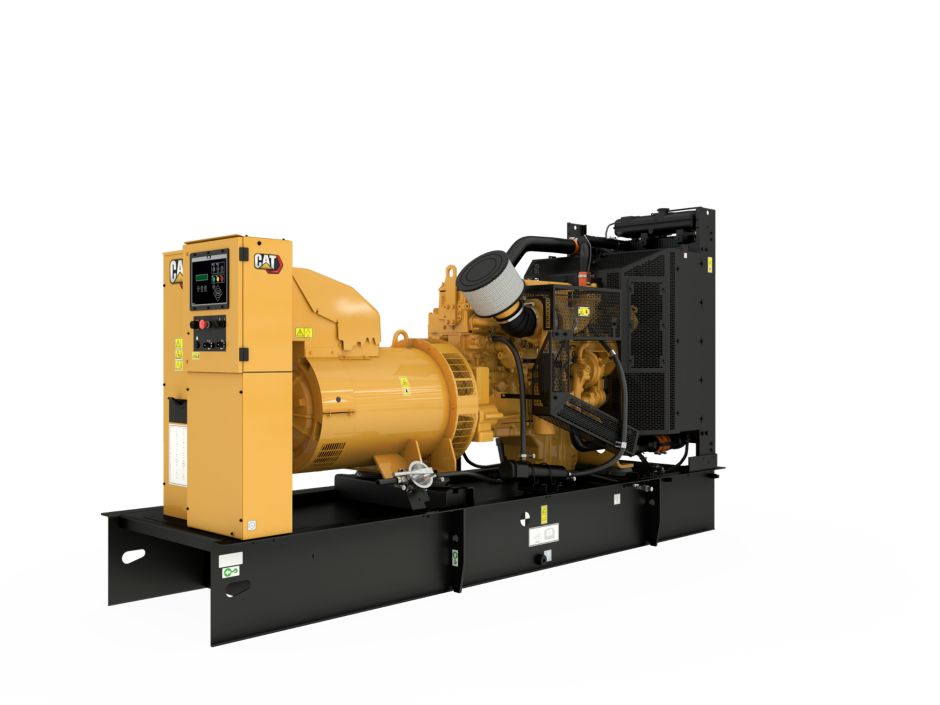

Cat C13 Generator Set

Minimum Rating 320 ekW

Maximum Rating 400 ekW

Emissions/Fuel Strategy EPA Stat Emergency Use

320 to 400 ekW Generator Set for Standby and Prime applications.

Feature Image
Cat Diesel Engine

Reliable, rugged, durable designField-proven in thousands of applications worldwideFour-stroke-cycle diesel engine combines consis…

  • Reliable, rugged, durable design
  • Field-proven in thousands of applications worldwide
  • Four-stroke-cycle diesel engine combines consistent performance and excellent fuel economy with minimum weight
  • MORE DETAILS
    Feature Image
    Generator

    Matched to the performance and output characteristics of Cat engines Industry leading mechanical and electrical design Industry le…

  • Matched to the performance and output characteristics of Cat engines
  • Industry leading mechanical and electrical design
  • Industry leading motor starting capabilities
  • High Efficiency
  • MORE DETAILS
    Feature Image
    EMCP Control Panel

    The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable c…

    The EMCP controller features the reliability and durability you have come to expect from your Cat equipment. EMCP4 is a scalable control platform designed to ensure reliable generator set operation, providing extensive information about power output and engine operation. EMCP4 systems can be further customized to meet your needs through programming and expansion modules.
    MORE DETAILS
    Feature Image
    Design Criteria

    The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.

    The generator set accepts 100% rated load in one step per NFPA 110 and meets ISO 8528-5 transient response.
    MORE DETAILS
    Feature Image
    Single-Source Supplier

    Fully prototype tested with certified torsional vibration analysis available

    Fully prototype tested with certified torsional vibration analysis available
    MORE DETAILS
    Feature Image
    World Wide Product Support

    Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer br…

    Cat dealers provide extensive post-sale support including maintenance and repair agreements. Cat dealers have over 1,800 dealer branch stores operating in 200 countries. The Caterpillar S•O•S℠ program cost effectively detects internal engine component condition, even the presence of unwanted fluids and combustion by-products
    MORE DETAILS

    Standard Equipment

    Starting / Charging
    • Charging alternator
    • 24-Volt electric starting motor
    Control System Controller
    • EMCP 4.2
    Certification
    • EPA stationary emergency use
    Base / Fuel Tank
    • Audio and visual fuel alarm
    Protection
    • Coolant Level Sensor
    • Safety Shutoff - Low Oil Pressure
    • Safety Shutoff - High water temperature
    • Safety Shutoff - Overspeed
    Engine Air Cleaner
    • Single Element
    • Duel Element
    • Heavy Duty
    Muffler
    • Industrial grade (10 dBA)
    • Residential and Critical grade (25 dBA)
    Starting and Charging
    • Standard battery set
    • Oversize battery set
    Control System Controller
    • EMCP 4.4
    • Local annunciator
    • Remote annunciator
    • Discrete I/O module
    • Device Server
    • Volt free contact
    • Earth (ground) fault relay
    Generator
    • Excitation - Self
    • Excitation - Internal / AREP
    • Excitation - PMG
    • Oversize
    • Coastal protection (CIP)
    • Space heater control
    • Output Voltages
    Power Termination
    • Power terminal strips
    • Circuit Breakers
    Enclosure
    • Weather protective

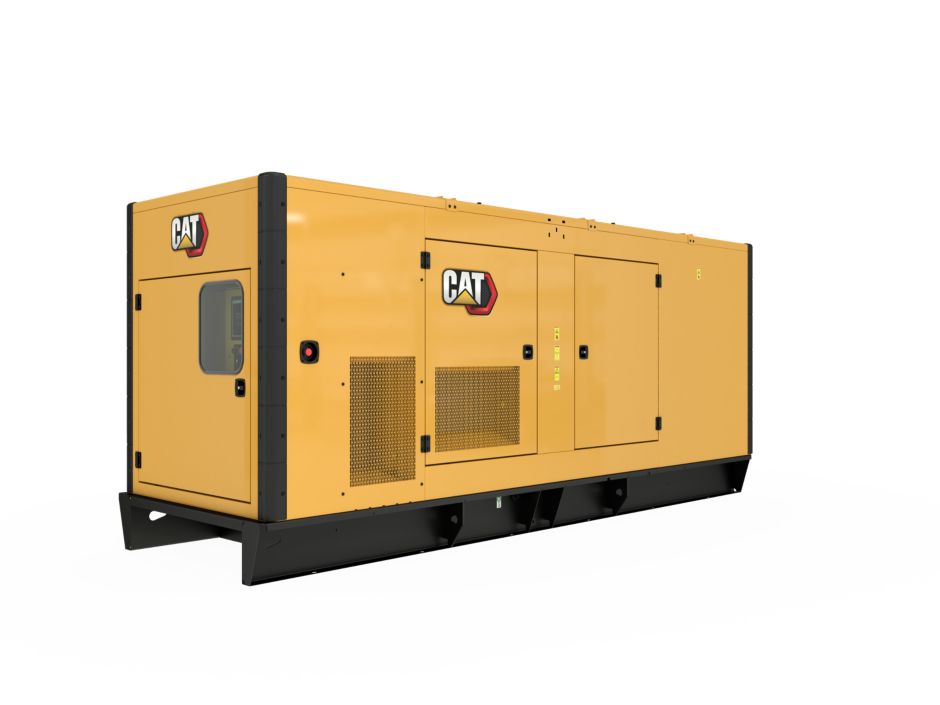

    • Sound attenuated
    Certification
    • UL2200 listed
    • CSA 22.2
    • Certification of Compliance - IBC Seismic
    • Certification of Compliance - IBC Seismic and OSHPD
    Extended Service Coverage
    • 2 Year
    • 3 Year
    • 4 Year
    • 5 Year
    • 10 Year
    Base / Fuel Tank
    • Narrow skid
    • Wide / Standard
    • Sub tank base - UL and ULC listed
    • Integral tank base - UL AND ULC listed
    • Spill containment
    • Overfill prevention valve

    Technical Specifications

    • Generator Set Specifications
      Minimum Rating 320 ekW
      Maximum Rating 400 ekW
      Voltage 208 to 600 Volts
      Frequency 60 Hz
      Speed 1800 rpm
      Emissions/Fuel Strategy EPA Stat Emergency Use
    • Engine Model C13 ACERT In-line 6, 4-cycle diesel
      Compression Ratio 16.3:1
      Aspiration Turbocharged Air to Air Aftercooled
      Governor Type Adem™A4
      Fuel System MEUI
      Stroke 6.2 in
      Displacement 763 in³
      Bore 5.12 in
