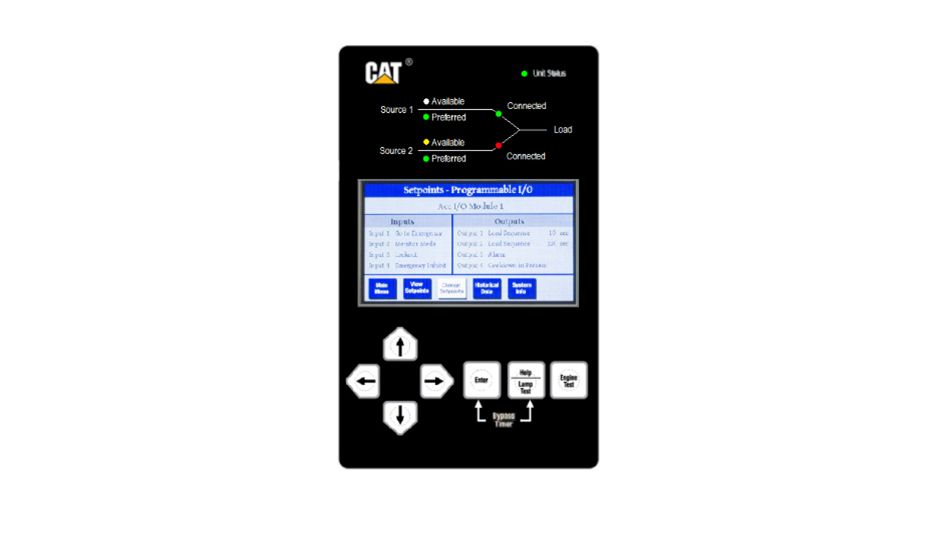

The ATC-900 Controller is a programmable microprocessor-based monitoring device for use on Cat transfer switches. Data access and programming operations are performed using the ATC-900's touch sensitive function buttons in conjunction with an easy-to-read illuminated alphanumeric LED display. Both the functional buttons and the display window are part of the device's door mounted front panel. A built in Help button provides user assistance in the form of message displays.The communication option permits monitoring and control of several transfer switches, locally or remotely from a single point. Depending on the application, the user can customize the ATC-900 to meet the particular application. The ATC-900 is equipped to display historical information either via the front panel or over mod bus communications to a personal computer. Source 1 and Source 2 run time, available time and connect time are available, as well as load energized time, number of transfers, date, time and reason for the last 16 transfers.
True rms three-phase voltage sensing on Source 1, Source 2 and load Frequency sensing on Source 1 and Source 2 Preferr…
Buttons provide easy access to all commonly used ATC-800 functions. When Source 1 is connected and the ATS is operating normally,…
Factory programming will load all standard features and customer-specified options per the default settings.
Customers may reprogram set points and other parameters to match their application using the Program switch located on the rear of…
In-phase monitor is a feature that will allow a transfer between two sources only when the phase difference between the two source…
Load voltage decay transfer is a feature that, after opening the switch for the original source, holds in the neutral position unt…
The Cat ATC-800 transfer operates in the following modes:Loss of normal power Open transition to alternate source Nor…
UL Recognized Component Meets Seismic Requirements of Uniform and CBC 2007 and IBC 2006 (exceeding requirements of worst cas…
Learn more information about the Cat ATC-800 CONTROLLER.
Download (2.22 MB, PDF)From pre-purchase consults to end-of-lifecycle benefits, Mantrac informs, advises and partners with you.
