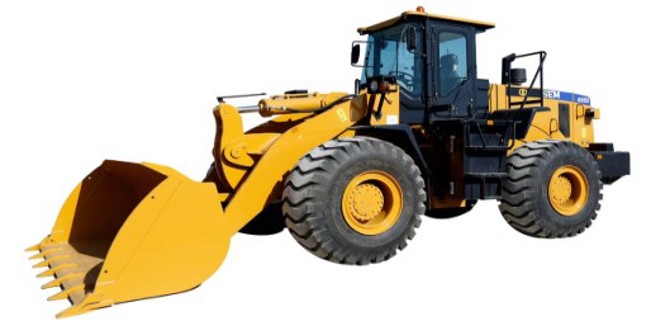

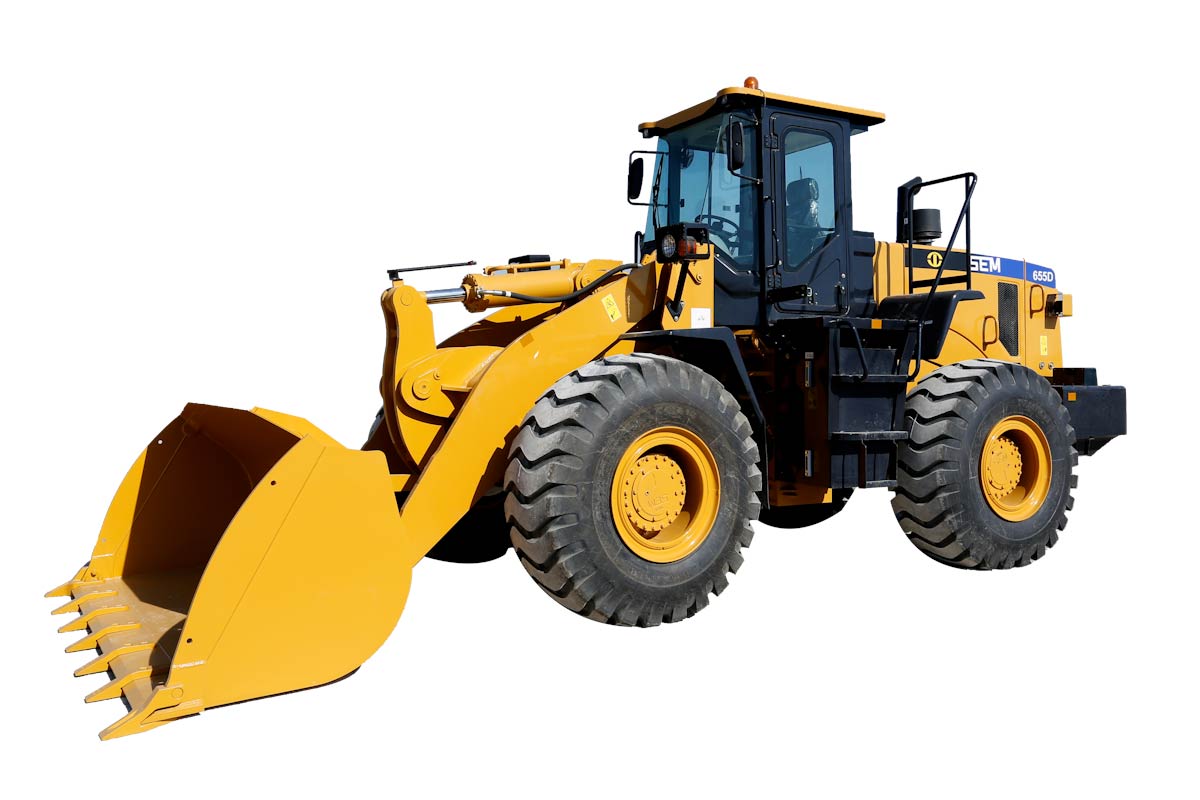

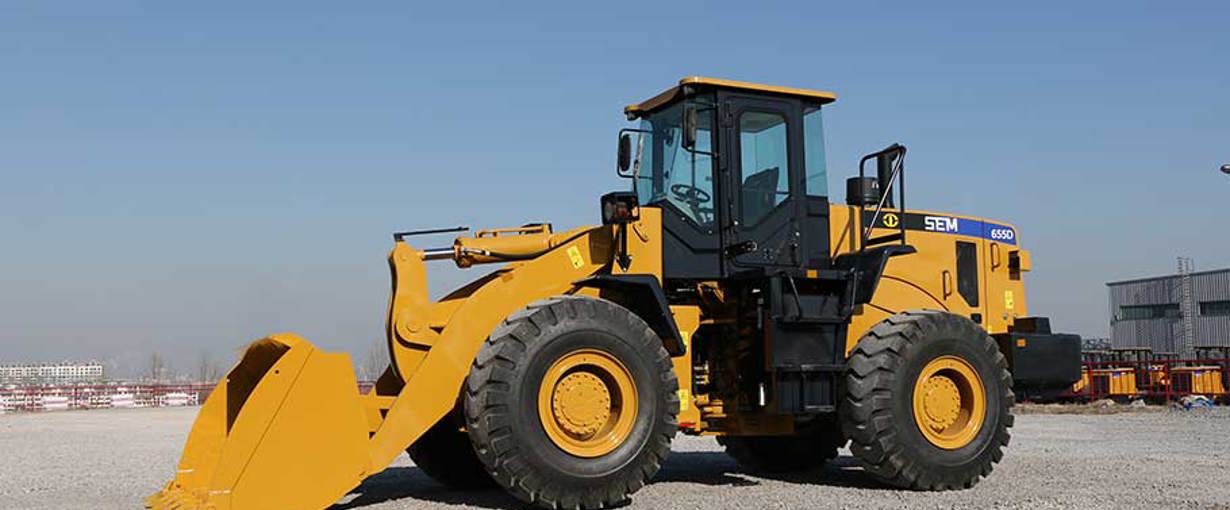

SEM 655D Wheel Loader

Combines power, durability, and enhance productivity

The SEM 655D wheel loader offers reliable and powerful solution for heavy-duty material handling and loading requirements. Its durability, performance, and operator-friendly features make it a valuable asset on construction sites, mining operations, and other demanding work sites.

Request Quote

<p style="font-weight: bold; ">SEM 655D Wheel Loader</p>Combines power, durability, and enhance productivity
Jump to section:
Services Contact
Download Product Brochure

SEM 655D Demonstration

Watch this walkaround video with our expert to discover the SEM 655D wheel loader walkaround and how its hydraulics systems, drivetrain and advanced cooling systems make it best-in-class for reliabilty and durability.

Technical specifications

Rated Load 5,000 kg
Operating Weight with Standard Bucket 16,800 kg
Bucket Capacity 2.7-4.5 m³
Wheel Base 3,200 mm
Overall Dimension (L/W/H) 8,085 mm/2,963 mm/3,463 mm
Breakout Force 168 kN
Dump Clearance 3,058 mm
Articulated Angle 38° (±1)
Model Weichai WD10G
Rated Power 162 kW
Rated Speed 2,000 r/min
Displacement 9.726 L
Transmission Type Countershaft, power shift
Transmission Gears F4/R4
Torque Converter Type Single stage 3 elements
Maker & Type SEM TR200
Forward I/Reverse I 7.8/7.8 km/h
Forward II/Reverse II 15/15 km/h
Forward III/Reverse III 22/22 km/h
Forward IV/Reverse IV 39/39 km/h
Main Drive Type Spiral bevel gear, single stage
Final Drive Reduction Type Planetary type, single stage
Rear - Oscillating +/- ±11°
Implement System Type Twin pump flow merging hydraulic system
Boom Raise Time 5.13 s
Hydraulic Cycle Time 9.5 s
System Pressure Setting 17 Mpa
Service Brake Dry & caliper, air to oil control
Parking Brake Drum type shoe brake, spring applied & oil released
System Type Flow amplifying
Steering Pump Type Gear pump
System Pressure Setting 16 mPa
Steering Angle (L/R) 38° (±1)
Size 23.5-25
Type Bias
Layer 16
Textured Type L3/E3
