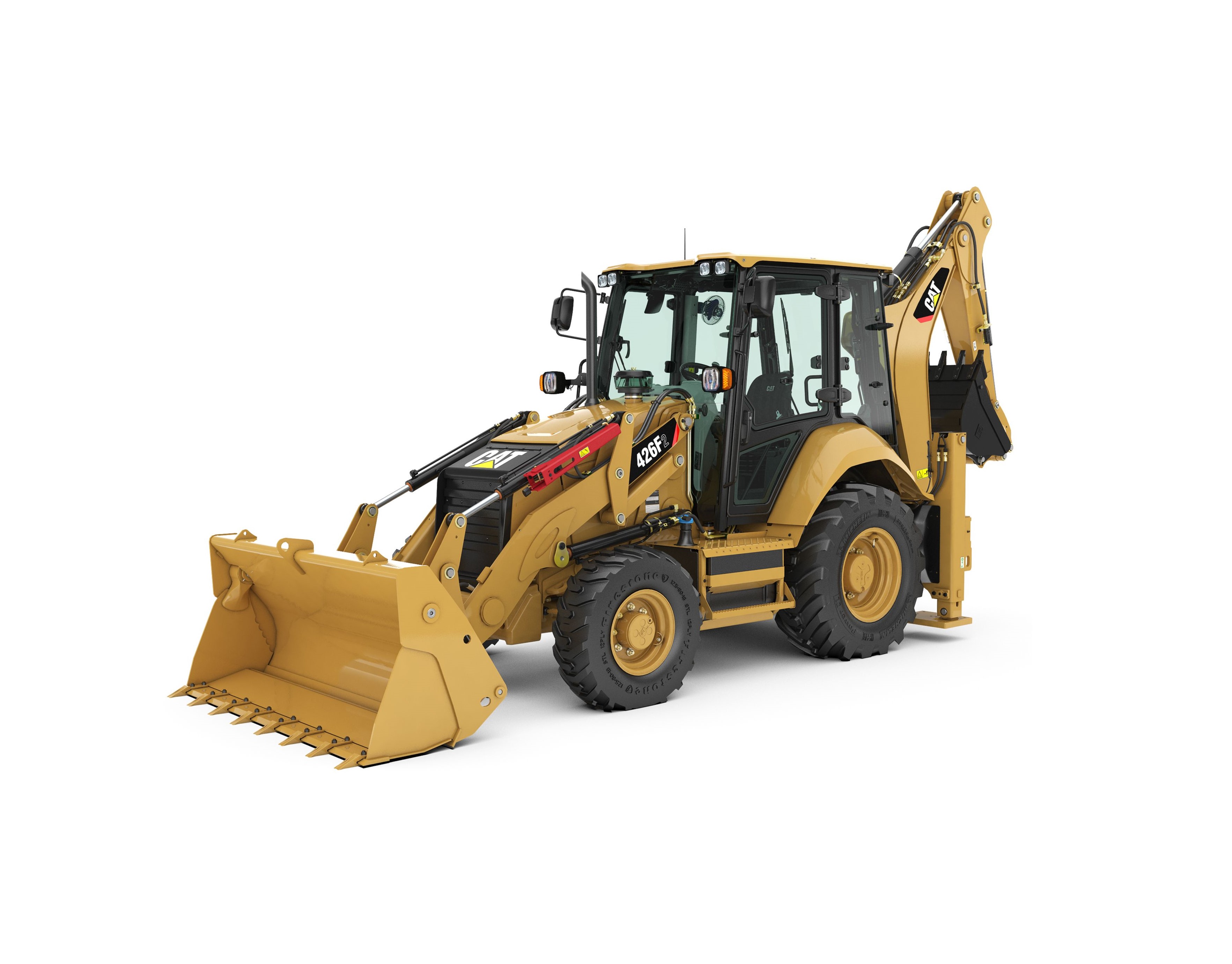

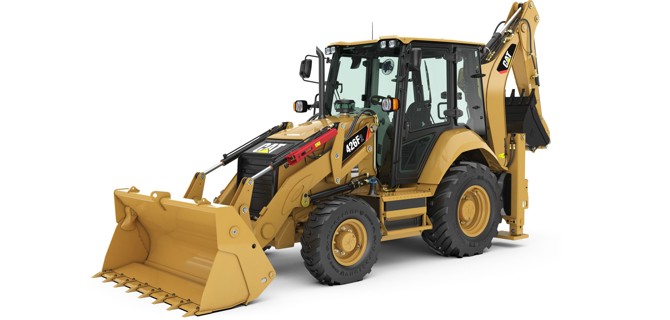

CAT® 426F2 Backhoe Loader
Unleash Efficiency and Power!Revolutionize your construction projects with our incredible Cat® 426F2 Backhoe Loader. Packed with power, precision, and reliability. This mighty machine is here to transform the way you work. Get ready to experience the future of construction!
Fill out our form with your model of interest and we'll send you a downloadable brochure or technical specifications document.
Watch this video with our expert to discover the 426F2 key benefits for your operations. Benefits ranges from low fuel consumption to low owning & operating costs.
| Specification | Value |
| Power - Net | 66 kW |
| Model | Cat 3054C Mechanical Turbo |
| Emissions | Engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards. |
| Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 68.5 kW |
| Net Power - 2,200 rpm - ISO 9249 | 66 kW |
| Net Peak Power - 2,000 rpm - SAE J1349 | 65 kW |
| Net Peak Power - 2,000 rpm - ISO 9249 | 65 kW |
| Net Peak Power - 2,000 rpm - EEC 80/1269 | 65 kW |
| Torque Rise - 1,200 rpm - Net | 38% |
| Maximum Torque - 1,400 rpm | 394 N·m |
| Bore | 105 mm |
| Stroke | 127 mm |
| Displacement | 4.4 l |
| Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
| Note (2) | No derating required up to 2286 m altitude. Auto derate protects hydraulic and transmission systems. |
| Specification | Value |
| Operating Weight - Nominal | 7.990 kg |
| Operating Weight - Maximum | 8.760 kg |
| Specification | Value |
| Type | Closed Center |
| Pump Type | Variable Flow, Axial Piston |
| Maximum Pump Capacity | 132 l/min |
| System Pressure - Backhoe | 250 bar |
| System Pressure - Loader | 250 bar |
| Specification | Value |
| Inside Cab | 80 dB(A) |
| Outside Cab | 104 dB(A) |
| Specification | Value |
| Note | Travel speeds of Two Wheel Drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
| Power Shuttle Transmission - Forward 1st | 5.5 km/h |
| Power Shuttle Transmission - Forward 2nd | 9 km/h |
| Power Shuttle Transmission - Forward 3rd | 20.7 km/h |
| Power Shuttle Transmission - Forward 4th | 40 km/h |
| Power Shuttle Transmission - Reverse 1st | 5.5 km/h |
| Power Shuttle Transmission - Reverse 2nd | 9 km/h |
| Power Shuttle Transmission - Reverse 3rd | 20.7 km/h |
| Power Shuttle Transmission - Reverse 4th | 40 km/h |
| Specification | Value |
| Cooling System | 22 l |
| Fuel Tank | 160 l |
| Engine Oil - With Filter | 8.8 l |
| Transmission - Power Shuttle - AWD | 15 l |
| Rear Axle | 14.5 l |
| Rear Axle - Planetaries | 1.5 l |
| Front Axle (AWD) | 11 l |
| Front Axle (AWD) - Planetaries | 0.7 l |
| Hydraulic System | 106 l |
| Hydraulic Tank | 40 l |
| Specification | Value |
| Operating Weight - Estimated | 7.990 kg |
| Operating Weight - ROPS Capacity - Maximum | 8.760 kg |
| Counterweights - Base | 115 kg |
| Counterweights - Medium | 240 kg |
| Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 115 kg |
| Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 0 kg |
| Note | *Machine Configuration – standard engine, standard stick hoe, standard cab with A/C, AWD standard shift transmission, 0.96 m³ MP loader bucket, 610 mm standard duty hoe bucket, 12.5/80-18 and 16.9-28 tires, no counterweight, 80 kg operator and full fuel tank. |
| Specification | Value |
| Features (1) | Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives. |
| Features (2) | AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance. |
| Features (3) | AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double-acting steering cylinder with 52° steering angle for increased maneuverability. |
| Specification | Value |
| Front Axle (AWD) - Static | 22.943 kg |
| Front Axle (AWD) - Dynamic | 9.177 kg |
| Rear Axle - Static | 19.120 kg |
| Rear Axle - Dynamic | 7.648 kg |
| Specification | Value |
| Type | Front Wheel |
| Power Steering | Hydrostatic |
| AWD Cylinder, One (1) Double Acting - Bore | 65 mm |
| AWD Cylinder, One (1) Double Acting - Stroke | 120 mm |
| AWD Cylinder, One (1) Double Acting - Rod Diameter | 36 mm |
| Turning Circle (inner wheel not braked) - Outside Front Wheels | 8.18 m |
| Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket | 10.97 m |
| Specification | Value |
| Type | Fully enclosed boosted, hydraulic, multiple discs. |
| Features (1) | Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. |
| Features (2) | Completely enclosed and sealed. |
| Features (3) | Self-adjusting. |
| Features (4) | Dual foot-operated boosted brake pedals can be interlocked for roading. |
| Features (5) | Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console. |
| Features (6) | Meets ISO 3450:1996 requirements. |
| Specification | Value |
| Overall Length - In Roading Position | 5.726 mm |
| Overall Transportation Length | 5.678 mm |
| Overall Transportation Height - 4.3 m | 3.757 mm |
| Overall Width - Excluding Loader Bucket | 2.346 mm |
| Height - Top of Cab/Canopy | 2.869 mm |
| Height - Top of Exhaust Stack | 2.716 mm |
| Rear Axle - Centerline to Front Grill | 2.708 mm |
| Wheelbase - AWD | 2.200 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified. |
| Specification | Value |
| Overall Length - In Roading Position | 5.682 mm |
| Overall Transportation Length | 5.675 mm |
| Overall Transportation Height - 4.3 m | 3.757 mm |
| Overall Width - Excluding Loader Bucket | 2.346 mm |
| Height - Top of Cab/Canopy | 2.869 mm |
| Height - Top of Exhaust Stack | 2.716 mm |
| Rear Axle - Centerline to Front Grill | 2.708 mm |
| Wheelbase - AWD | 2.200 mm |
| Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified. |
| Specification | Value |
| Capacity | 1.05 m³ |
| Width | 2.262 mm |
| Lift Capacity at Maximum Height | 3.610 kg |
| Lift Breakout Force | 54.46 kN |
| Tilt Breakout Force | 53.92 kN |
| Tipping Load - Breakout Point | 7.012 kg |
| Maximum Hinge Pin Height | 3.447 mm |
| Dump Angle at Full Height | 46° |
| Dump Height at Maximum Angle | 2.733 mm |
| Dump Reach at Maximum Angle | 900 mm |
| Maximum Bucket Rollback at Ground Level | 38° |
| Digging Depth | 88 mm |
| Maximum Grading Angle | 113° |
| Grill to Bucket Cutting Edge, Carry Position | 1.482 mm |
| Maximum Operating Height | 4.368 mm |
| Bucket Weight - Excluding Teeth and Forks | 428 kg |
| Specification | Value |
| Capacity | 0.96 m³ |
| Width | 2.262 mm |
| Lift Capacity at Maximum Height | 3.475 kg |
| Lift Breakout Force | 54 kN |
| Tilt Breakout Force | 60.48 kN |
| Tipping Load - Breakout Point | 7.110 kg |
| Maximum Hinge Pin Height | 3.447 mm |
| Specification | Value |
| Dump Angle at Full Height | 46° |
| Dump Height at Maximum Angle | 2.764 mm |
| Dump Reach at Maximum Angle | 825 mm |
| Maximum Bucket Rollback at Ground Level | 39° |
| Digging Depth | 147 mm |
| Maximum Grading Angle | 116° |
| Grill to Bucket Cutting Edge, Carry Position | 1.450 mm |
| Maximum Operating Height | 4.368 mm |
| Bucket Weight - Excluding Teeth and Forks | 611 kg |
| Specification | Value |
| Digging Depth - SAE Maximum | 4.119 mm |
| Digging Depth, Manufacturer's Maximum | 4.709 mm |
| Digging Depth - 2440 mm Flat Bottom | 3.743 mm |
| Digging Depth - 600 mm Flat Bottom | 4.094 mm |
| Digging Depth, 600 mm Flat Bottom, Manufacturer's | 4.670 mm |
| Reach from Swing Pivot at Ground Line | 5.609 mm |
| Maximum Operating Height | 5.719 mm |
| Loading Height | 4.031 mm |
| Loading Reach | 1.477 mm |
| Swing Arc | 180° |
| Bucket Rotation | 205° |
| Stabilizer Overall Width | 2.242 mm |
| Bucket Dig Force | 57.22 kN |
| Stick Dig Force | 35.29 kN |
