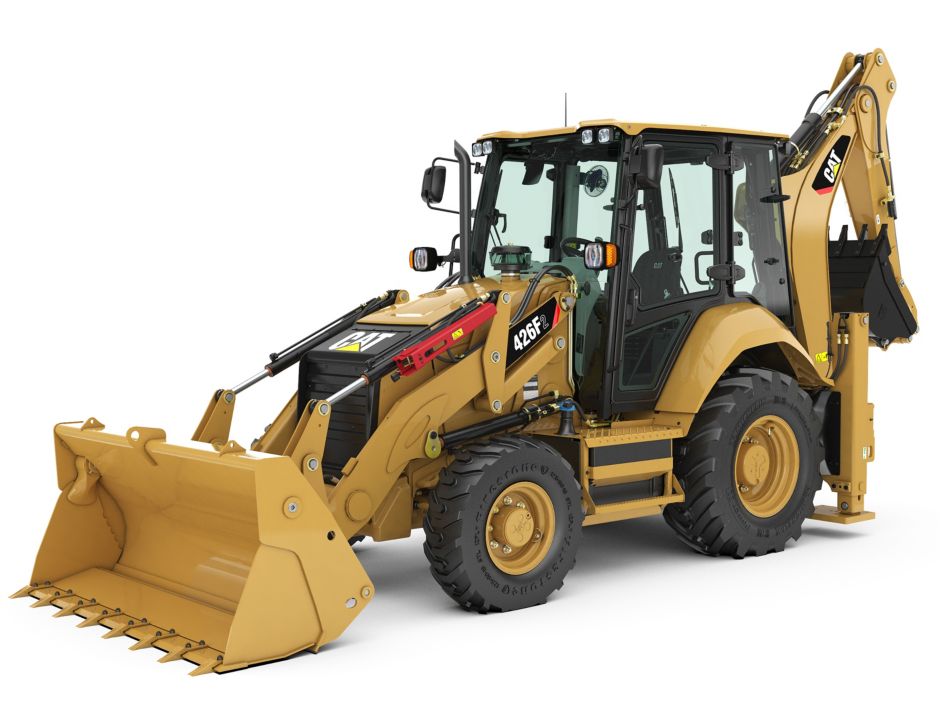

The 426F2 features a world class operator station with a standard air suspension seat, extra legroom and greater visibility. Ergonomic joystick controls provide smooth operation and low operator effort.
Get the most out of your Cat® Backhoe Loader. Product Link provides quick access to vital information such as machine location, ho…
The introduction of the new cab to the Cat Backhoe Loader provides a comfortable and easy to use operator environment. With the ab…
The F2 Series machines really make an impact. High pump flow in a superior hydraulic system allow the operator excellent hydraulic…
The 426F2 is equipped with our tried and tested Cat 3054C engine and is finely tuned to a Cat four speed manual transmission. This…
Specification | Value |
Power - Net | 66 kW |
Model | Cat 3054C Mechanical Turbo |
Emissions | Engine meets U.S. EPA Tier 2/EU Stage II equivalent emission standards. |
Rated Power (Standard) - 2,200 rpm - Gross - ISO 14396 | 68.5 kW |
Net Power - 2,200 rpm - ISO 9249 | 66 kW |
Net Peak Power - 2,000 rpm - SAE J1349 | 65 kW |
Net Peak Power - 2,000 rpm - ISO 9249 | 65 kW |
Net Peak Power - 2,000 rpm - EEC 80/1269 | 65 kW |
Torque Rise - 1,200 rpm - Net | 38% |
Maximum Torque - 1,400 rpm | 394 N·m |
Bore | 105 mm |
Stroke | 127 mm |
Displacement | 4.4 l |
Note (1) | Net power advertised is the power available at the flywheel when the engine is equipped with fan, air cleaner, muffler and alternator. |
Note (2) | No derating required up to 2286 m altitude. Auto derate protects hydraulic and transmission systems. |
Specification | Value |
Operating Weight - Nominal | 7.990 kg |
Operating Weight - Maximum | 8.760 kg |
Specification | Value |
Type | Closed Center |
Pump Type | Variable Flow, Axial Piston |
Maximum Pump Capacity | 132 l/min |
System Pressure - Backhoe | 250 bar |
System Pressure - Loader | 250 bar |
Specification | Value |
Inside Cab | 80 dB(A) |
Outside Cab | 104 dB(A) |
Specification | Value |
Note | Travel speeds of Two Wheel Drive backhoe loader at full throttle, when equipped with 16.9×28 rear tires. |
Power Shuttle Transmission - Forward 1st | 5.5 km/h |
Power Shuttle Transmission - Forward 2nd | 9 km/h |
Power Shuttle Transmission - Forward 3rd | 20.7 km/h |
Power Shuttle Transmission - Forward 4th | 40 km/h |
Power Shuttle Transmission - Reverse 1st | 5.5 km/h |
Power Shuttle Transmission - Reverse 2nd | 9 km/h |
Power Shuttle Transmission - Reverse 3rd | 20.7 km/h |
Power Shuttle Transmission - Reverse 4th | 40 km/h |
Specification | Value |
Cooling System | 22 l |
Fuel Tank | 160 l |
Engine Oil - With Filter | 8.8 l |
Transmission - Power Shuttle - AWD | 15 l |
Rear Axle | 14.5 l |
Rear Axle - Planetaries | 1.5 l |
Front Axle (AWD) | 11 l |
Front Axle (AWD) - Planetaries | 0.7 l |
Hydraulic System | 106 l |
Hydraulic Tank | 40 l |
Specification | Value |
Operating Weight - Estimated | 7.990 kg |
Operating Weight - ROPS Capacity - Maximum | 8.760 kg |
Counterweights - Base | 115 kg |
Counterweights - Medium | 240 kg |
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - GP | 115 kg |
Minimum Counterweight Recommendations - Standard Stick: Loader Bucket - MP | 0 kg |
Note | *Machine Configuration – standard engine, standard stick hoe, standard cab with A/C, AWD standard shift transmission, 0.96 m³ MP loader bucket, 610 mm standard duty hoe bucket, 12.5/80-18 and 16.9-28 tires, no counterweight, 80 kg operator and full fuel tank. |
Specification | Value |
Features (1) | Heavy-duty rear axle with self adjusting inboard brakes, differential lock and final drives. |
Features (2) | AWD is engaged by front console panel switch or by brake pedal during all-wheel-braking operation. AWD can be engaged on the move, under load, in any gear, forward or reverse. AWD has outer final drives for easy maintenance. |
Features (3) | AWD front axle is pendulum mounted and permanently sealed and lubricated, requiring no daily maintenance. Also features double-acting steering cylinder with 52° steering angle for increased maneuverability. |
Specification | Value |
Front Axle (AWD) - Static | 22.943 kg |
Front Axle (AWD) - Dynamic | 9.177 kg |
Rear Axle - Static | 19.120 kg |
Rear Axle - Dynamic | 7.648 kg |
Specification | Value |
Type | Front Wheel |
Power Steering | Hydrostatic |
AWD Cylinder, One (1) Double Acting - Bore | 65 mm |
AWD Cylinder, One (1) Double Acting - Stroke | 120 mm |
AWD Cylinder, One (1) Double Acting - Rod Diameter | 36 mm |
Turning Circle (inner wheel not braked) - Outside Front Wheels | 8.18 m |
Turning Circle (inner wheel not braked) - Outside Widest Loader Bucket | 10.97 m |
Specification | Value |
Type | Fully enclosed boosted, hydraulic, multiple discs. |
Features (1) | Inboard oil-immersed, hydraulically actuated multiple Kevlar discs on final drive input shaft. |
Features (2) | Completely enclosed and sealed. |
Features (3) | Self-adjusting. |
Features (4) | Dual foot-operated boosted brake pedals can be interlocked for roading. |
Features (5) | Parking/secondary brakes are independent of the service brake system. Parking brake is mechanically applied through a hand lever located in the right side console. |
Features (6) | Meets ISO 3450:1996 requirements. |
Specification | Value |
Overall Length - In Roading Position | 5.726 mm |
Overall Transportation Length | 5.678 mm |
Overall Transportation Height - 4.3 m | 3.757 mm |
Overall Width - Excluding Loader Bucket | 2.346 mm |
Height - Top of Cab/Canopy | 2.869 mm |
Height - Top of Exhaust Stack | 2.716 mm |
Rear Axle - Centerline to Front Grill | 2.708 mm |
Wheelbase - AWD | 2.200 mm |
Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified. |
Specification | Value |
Overall Length - In Roading Position | 5.682 mm |
Overall Transportation Length | 5.675 mm |
Overall Transportation Height - 4.3 m | 3.757 mm |
Overall Width - Excluding Loader Bucket | 2.346 mm |
Height - Top of Cab/Canopy | 2.869 mm |
Height - Top of Exhaust Stack | 2.716 mm |
Rear Axle - Centerline to Front Grill | 2.708 mm |
Wheelbase - AWD | 2.200 mm |
Note | Dimensions and performance specifications shown are for machines equipped with 12.5/80-18 SGL front tires, 16.9-28c rear tires, standard cab, standard stick with 610 mm standard duty bucket, and 1.05 m³ GP loader bucket and standard equipment unless otherwise specified. |
Specification | Value |
Capacity | 1.05 m³ |
Width | 2.262 mm |
Lift Capacity at Maximum Height | 3.610 kg |
Lift Breakout Force | 54.46 kN |
Tilt Breakout Force | 53.92 kN |
Tipping Load - Breakout Point | 7.012 kg |
Maximum Hinge Pin Height | 3.447 mm |
Dump Angle at Full Height | 46° |
Dump Height at Maximum Angle | 2.733 mm |
Dump Reach at Maximum Angle | 900 mm |
Maximum Bucket Rollback at Ground Level | 38° |
Digging Depth | 88 mm |
Maximum Grading Angle | 113° |
Grill to Bucket Cutting Edge, Carry Position | 1.482 mm |
Maximum Operating Height | 4.368 mm |
Bucket Weight - Excluding Teeth and Forks | 428 kg |
Specification | Value |
Capacity | 0.96 m³ |
Width | 2.262 mm |
Lift Capacity at Maximum Height | 3.475 kg |
Lift Breakout Force | 54 kN |
Tilt Breakout Force | 60.48 kN |
Tipping Load - Breakout Point | 7.110 kg |
Maximum Hinge Pin Height | 3.447 mm |
Specification | Value |
Dump Angle at Full Height | 46° |
Dump Height at Maximum Angle | 2.764 mm |
Dump Reach at Maximum Angle | 825 mm |
Maximum Bucket Rollback at Ground Level | 39° |
Digging Depth | 147 mm |
Maximum Grading Angle | 116° |
Grill to Bucket Cutting Edge, Carry Position | 1.450 mm |
Maximum Operating Height | 4.368 mm |
Bucket Weight - Excluding Teeth and Forks | 611 kg |
Specification | Value |
Digging Depth - SAE Maximum | 4.119 mm |
Digging Depth, Manufacturer's Maximum | 4.709 mm |
Digging Depth - 2440 mm Flat Bottom | 3.743 mm |
Digging Depth - 600 mm Flat Bottom | 4.094 mm |
Digging Depth, 600 mm Flat Bottom, Manufacturer's | 4.670 mm |
Reach from Swing Pivot at Ground Line | 5.609 mm |
Maximum Operating Height | 5.719 mm |
Loading Height | 4.031 mm |
Loading Reach | 1.477 mm |
Swing Arc | 180° |
Bucket Rotation | 205° |
Stabilizer Overall Width | 2.242 mm |
Bucket Dig Force | 57.22 kN |
Stick Dig Force | 35.29 kN |
