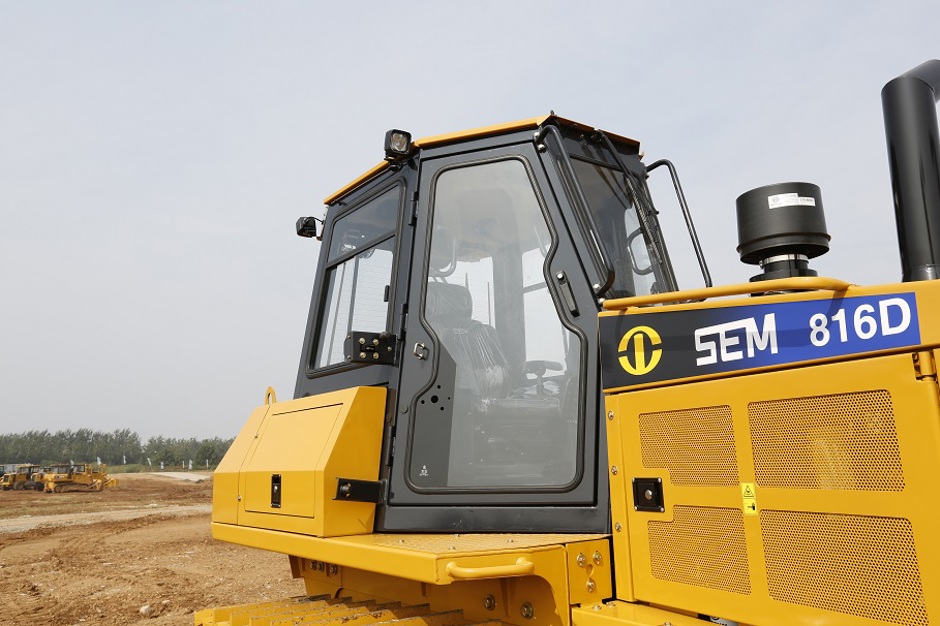

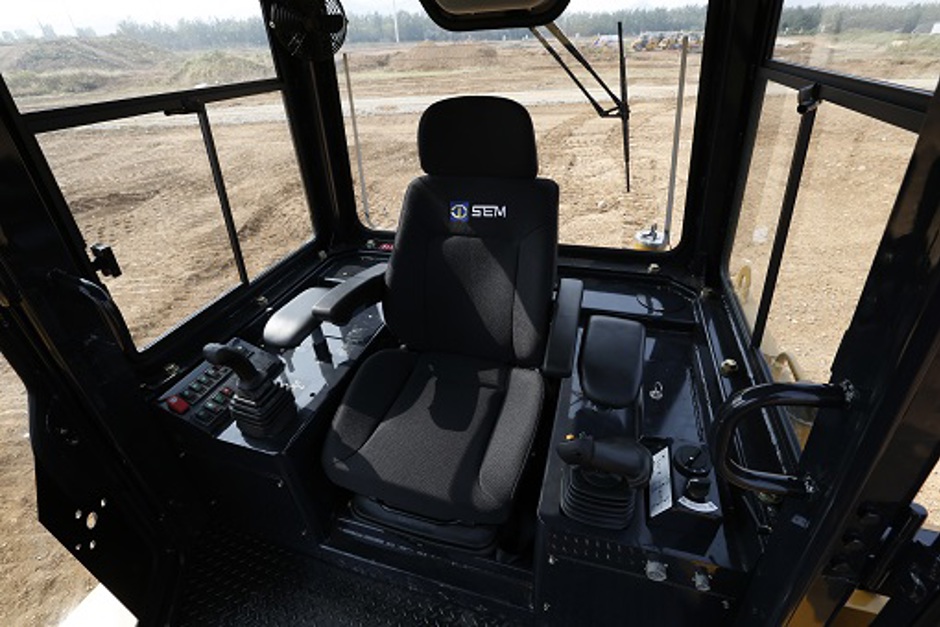

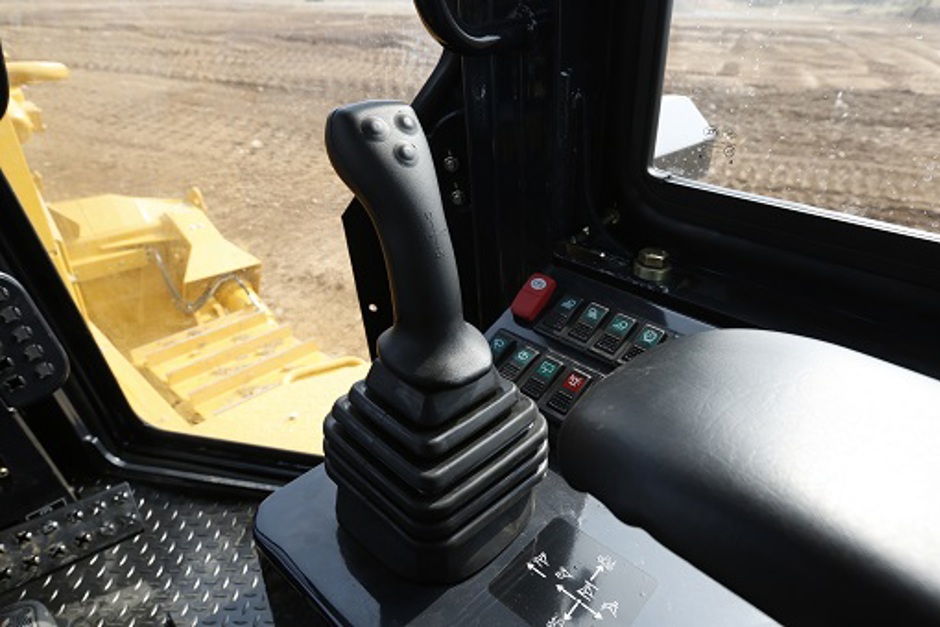

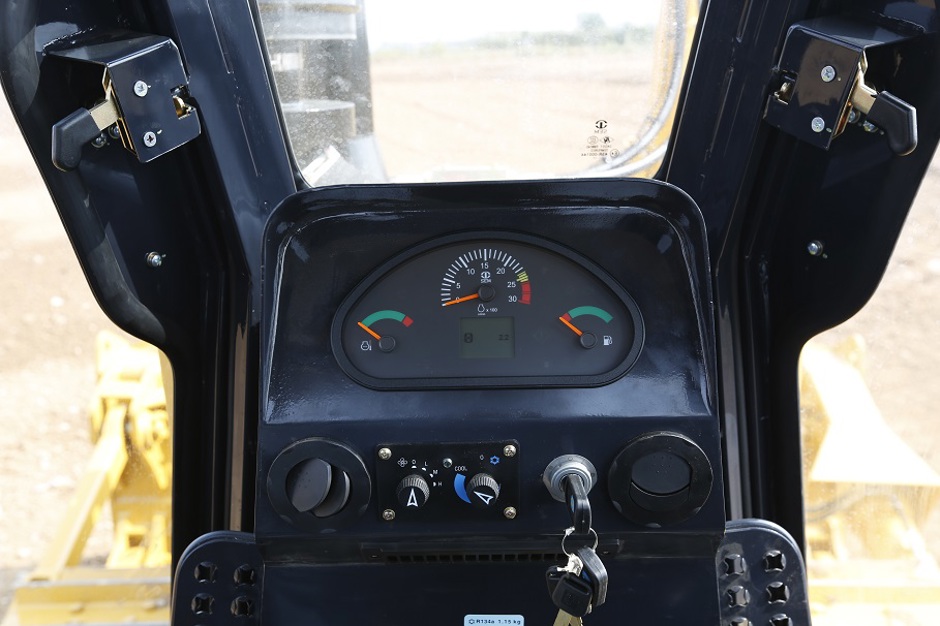

The SEM816D Track Type Tractor offers efficiency with controlled hydrostatic drive system and a multi functional joystick provides high levels of performance and manoeuvrability. It is also comfortable and convenient to operate with an ergonomically designed cabin offering high visibility for the operator. Advanced monitoring systems track machine vitals and inform the operator in real-time.
The proven hydrostatic design combined with world-class pump and motors offer high reliability. Undercarriage components are designed for longer life versus leading competitors. The SEM tractors are designed for easy access to reduce overall maintenance time. The machines electronic control module allows for quick troubleshooting while telematics systems convey accurate and timely information for better equipment management.
| Operating Weight | 17,230 kg |
| Ground Pressure | 68 kPa |
| Ground Clearance | 410 mm |
| Max. Slope | 30° |
| Model | Weichai WD10G178E25 |
| Rated Power | 131 kW |
| Blade Type | SU |
| Blade Capacity | 4.3 m³ (S 3.4 m³) |
| Blade Width | 3,140 mm (S 3,590 mm) |
| Blade Height | 1,240 mm (S 1,165 mm) |
| Max. Blade Digging Depth | 430 mm |
| Max. Blade Lift Ground Clearance | 1,041 mm |
| Max. Output Rimpull | 280 kN |
| Max. Digging Depth Of Ripper | 584 mm |
| Max. Clearance Under Tip | 615 mm |
| Type | Electronic control, Dual-path, Hydrostatic Drive |
| Travel Speed - F/R (Infinitely Variable Speed Control) | 0-10 km/hr |
| Steering & Brake | Hydrostatic Steering, Wet, Multiple-Disc Brakes |
| Min. Steering Radius (Counter-rotated available) | 3,610 mm |
| Track Shoe Width | 510 mm |
| Track Shoe Quantity | 37 piece |
| Length Of Track On Ground | 2,430 mm |
| Track Guage | 1,880 mm |
| Track Roller Quantity | 6/side |
| Carrier Roller Quantity | 2/side |
| Type | Pilot Control |
| Implement Hydraulic System Pressure | 19 Mpa |
| Cooling System | 45 L |
| Hydrostatic Oil | 40 L |
| Implement Oil | 60 L |
| Fuel | 320 L |
| Pivot Shaft Case (each side) | 1.2 L |
Learn more information about the SEM 816D.
