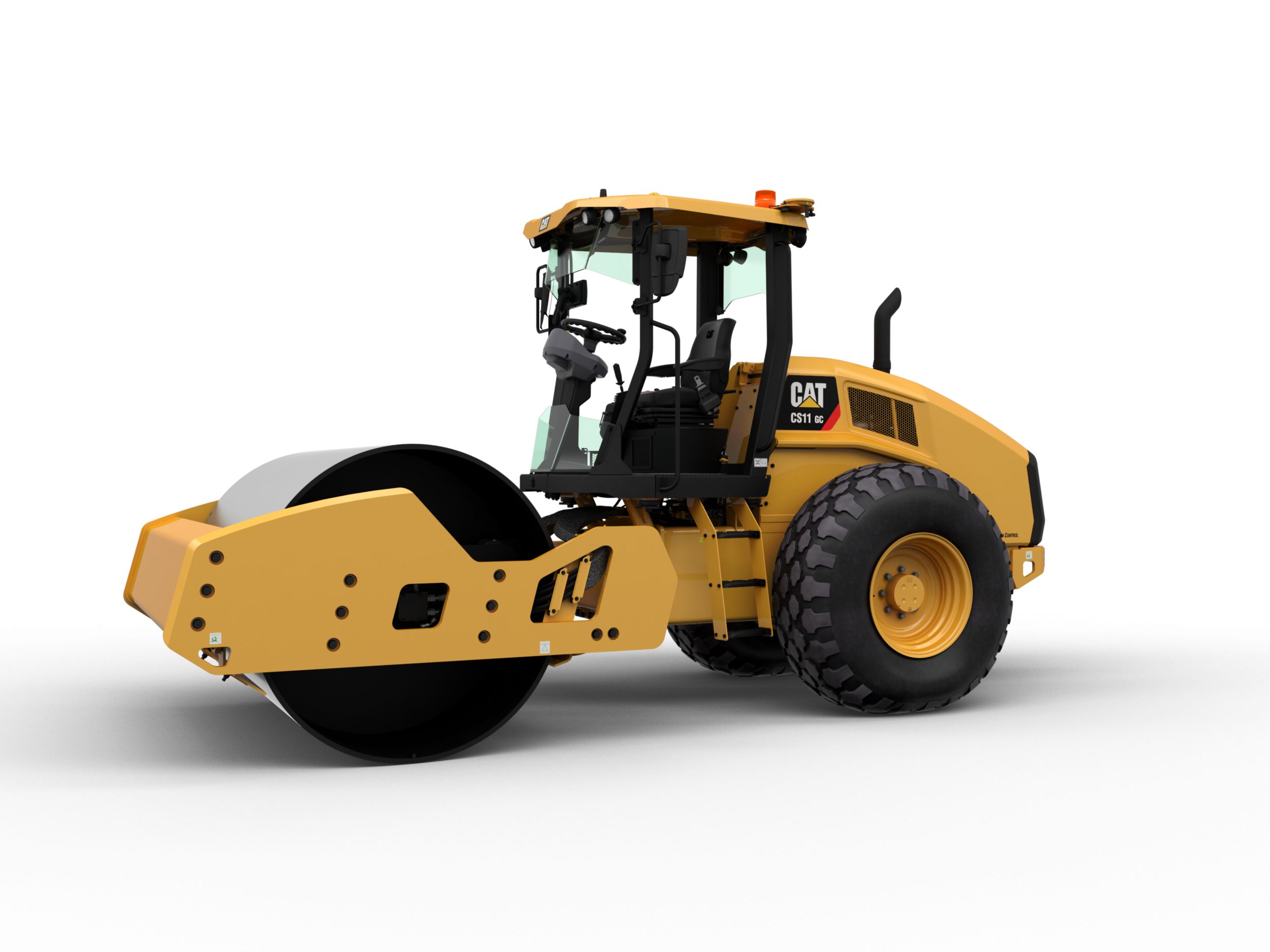

Cat CS11 GC Compactor
Delivering optimal compaction performance!An excellent choice for achieving optimum soil compaction in construction projects. Its advanced features, durability, and operator-friendly design make it a valuable asset for professionals working on roads, building foundations, landscaping, and other earthwork applications.
Fill out our form with your model of interest and we'll send you a downloadable brochure or technical specifications document.
Watch this video with our expert to discover the CS11 GC soil compactor key features and benefits of this technologically advanced machine and what mnakes it ideal for granular soil applications.
Specification | Value |
Operating Weight - With Cab | 11.235 kg |
Operating Weight - With ROPS/FOPS Canopy | 11.081 kg |
Operating Weight - With Sun Canopy | 10.904 kg |
Weight - Drum with ROPS/FOPS Canopy | 6.127 kg |
Weight - Drum with Sun Canopy | 6.058 kg |
Weight - Drum with Cab | 6.170 kg |
Specification | Value |
Compaction Width | 2.134 mm |
Curb Clearance | 492 mm |
Ground Clearance | 518 mm |
Turning Radius - Inside Drum Edge | 3.9 m |
Travel Speed - Maximum | 11 km/h |
Static Linear Load - With ROPS/FOPS | 27.6 kg/cm |
Specification | Value |
Gross Power | 83 kW |
Engine Model | Cat C4.4 |
Net Power - ISO 9249 | 79.4 kW |
Net Power - SAE J1349 | 78.5 kW |
Stroke | 127 mm |
Bore | 105 mm |
Specification | Value |
Overall Length | 5.7 m |
Overall Width | 2.3 m |
Drum Width | 2.134 mm |
Maximum Height | 3 m |
Drum Diameter | 1.535 mm |
Wheel Base | 3 m |
Specification | Value |
Nominal Amplitude - High | 2 mm |
Nominal Amplitude - Low | 1 mm |
Centrifugal Force - Maximum | 250 kN |
Centrifugal Force - Minimum | 149 kN |
Vibratory Frequency - Ecomode | 28.6-30 Hz |
Vibratory Frequency - Ecomode | 1716-1800 vpm |
Vibratory Frequency - Standard | 30-33 Hz |
Vibratory Frequency - Standard | 1800-1980 vpm |
Specification | Value |
Fuel Tank Capacity | 248 l |
Specification | Value |
Tires | 23.1 x 26 |
